Rittal 9683561 SV Partial mounting plate - insulating gland
Part Number: 9683561
Manufacturer
Rittal
Part number
9683561
Category
Alt Part Number
SV 9683.561
Quick Summary
Rittal SV Partial mounting plate provides compact mounting of switchgear in modular cabinets. Engineers often face space constraints and require flexible interior layout without compromising safety. This design aligns with industry classifications ETIM EC001900 and ECLASS 27400613, supporting seamless procurement and system integration. The part also highlights an environmentally conscious footprint (Category B PCF) and practical dimensions for cost-controlled installations. Using this plate can improve cabinet density, simplify installation, and reduce wiring complexity for mid-scale control panels. For procurement teams, consistent part codification streamlines sourcing and reduces lead times across multiple sites. For maintenance, modular interior levels simplify diagnostics and future upgrades without cabinet air gaps or rework.
Product Information
Extended Description

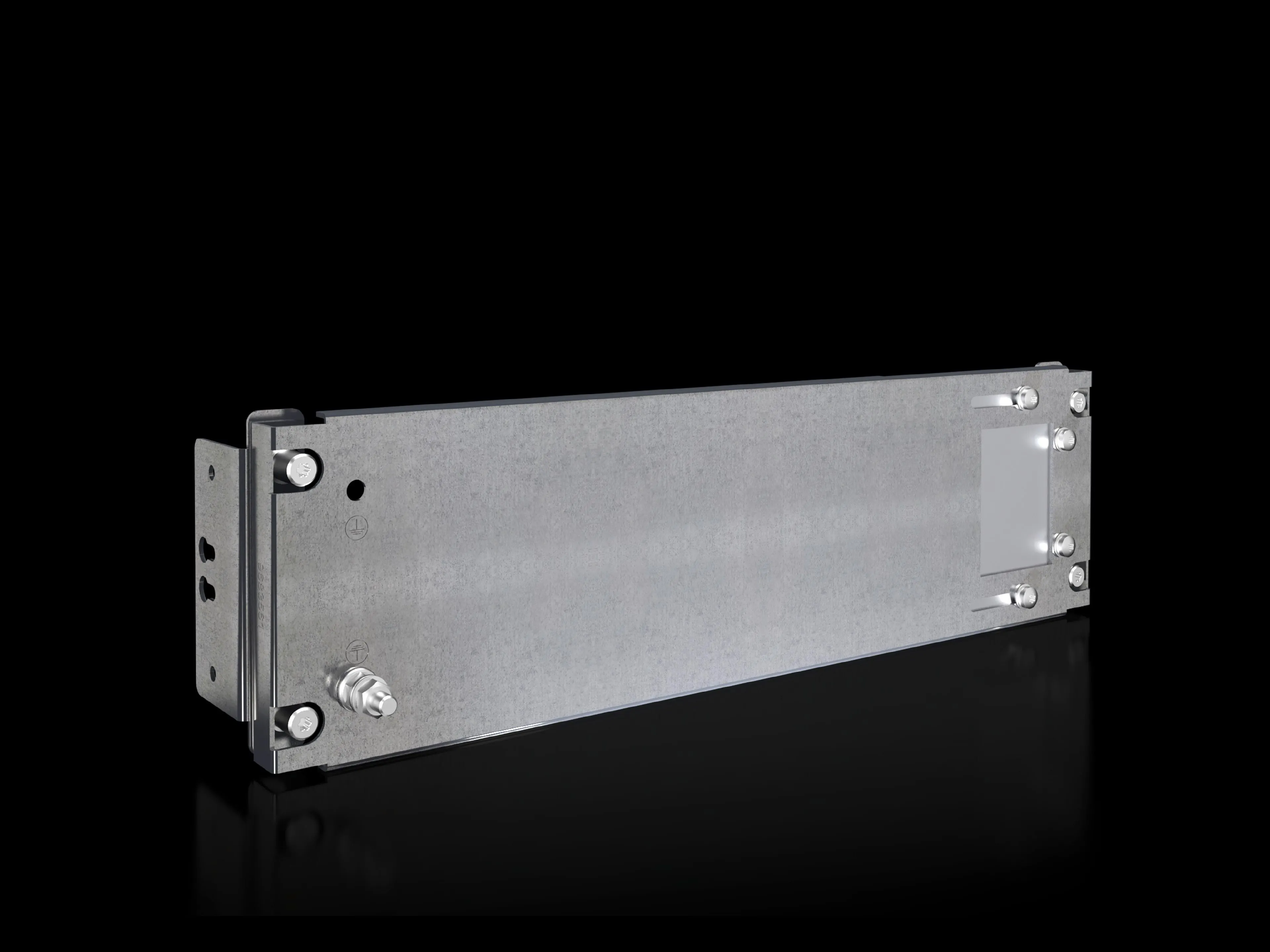

9683561 Rittal: SV Partial mounting plate, WH: 502x143 mm, with duct, for VX (W: 600 mm)
Article number
SV 9683.561
Design
with gland made from insulating material
Product description
For direct attachment to the compartment side panel for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel, internal compartmentalisation in accordance with Form 1 to 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
150 mm
Dimensions
Width: 502 mm | Height: 143 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
1.86 kg
PCF per pack (cradle-to-gate)
7.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177935204
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 502x143 mm, with duct, for VX (W: 600 mm)
Feature: Direct attachment to the compartment side panel enables efficient use of available space and reduces the need for additional mounting hardware. Business impact: Increases cabinet density and speeds up installation, lowering labor costs and project lead times. Application: Ideal for universal interior installation with switchgear and controlgear in VX enclosures. Feature: 2 mm sheet steel, zinc-plated, with a rugged build for long-term reliability. Business impact: Enhances durability and reduces maintenance intervals, supporting compliance with factory quality standards. Application: Suitable for demanding electrical cabinet environments where vibration and handling occur. Feature: Gland made from insulating material improves electrical isolation and thermal management. Business impact: Minimizes risk of arcing, enhances safety, and supports safe cable entry in tight spaces. Application: Critical for higher-density layouts inside modular panels. Feature: Dimensions 502x143 mm and width fit 600 mm VX systems; supply includes angle brackets and assembly parts. Business impact: Simplifies alignment and reduces accessory sourcing; accelerates on-site assembly. Application: Streamlines installation in standard VX frames. Feature: PCF 7.1 kg CO2 eq per pack (Category B) highlights environmental considerations; packaging comprises 1 piece per pack. Business impact: Supports sustainability reporting and supply chain transparency; lowers life-cycle footprint. Application: Beneficial for projects with green procurement requirements and lifecycle cost analysis.
Get a Quick Quote for a Rittal 9683561
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9683561?
Enquire Now
FAQs
To install, align the 502x143 mm plate with the VX side panel, attach using the supplied angle brackets and assembly parts, and ensure the duct/insulating gland faces the appropriate cable entry. Verify 150 mm compartment height compatibility and recheck alignment before mounting switchgear or controlgear. This approach reduces retrofit time and minimizes wiring rework during upgrades.
Key specs include 2 mm zinc-plated sheet steel construction, weight of 1.86 kg per pack, dimensions 502x143 mm, and a gland made from insulating material. These features deliver durable mounting with reliable electrical isolation, straightforward installation with included hardware, and predictable space planning for interior compartmentalisation in Form 1–4 layouts.
Yes. The SV partial mounting plate is designed for universal interior installation with switchgear and controlgear and, in combination with compartment dividers and side panels, supports internal compartmentalisation in Form 1 to 4, enabling orderly cable management and scalable mounting levels within VX cabinets.
The data for SV 9683.561 references industry classifications ETIM 9 EC001900 and ECLASS 8.0 27400613, aiding consistent procurement and system integration. While explicit SIL, CE, or IP ratings are not listed, the component is designed for standard enclosure assemblies and aligns with typical controller and switchgear deployment practices.
The mounting plate streamlines interior layout and reduces the number of separate mounting parts, cutting installation time and labor costs. Its robust zinc-plated steel construction lowers maintenance needs, while the included hardware and insulation gland simplify future upgrades and diagnostics, contributing to lower life-cycle costs and faster ROI on mid-size control panel projects.
