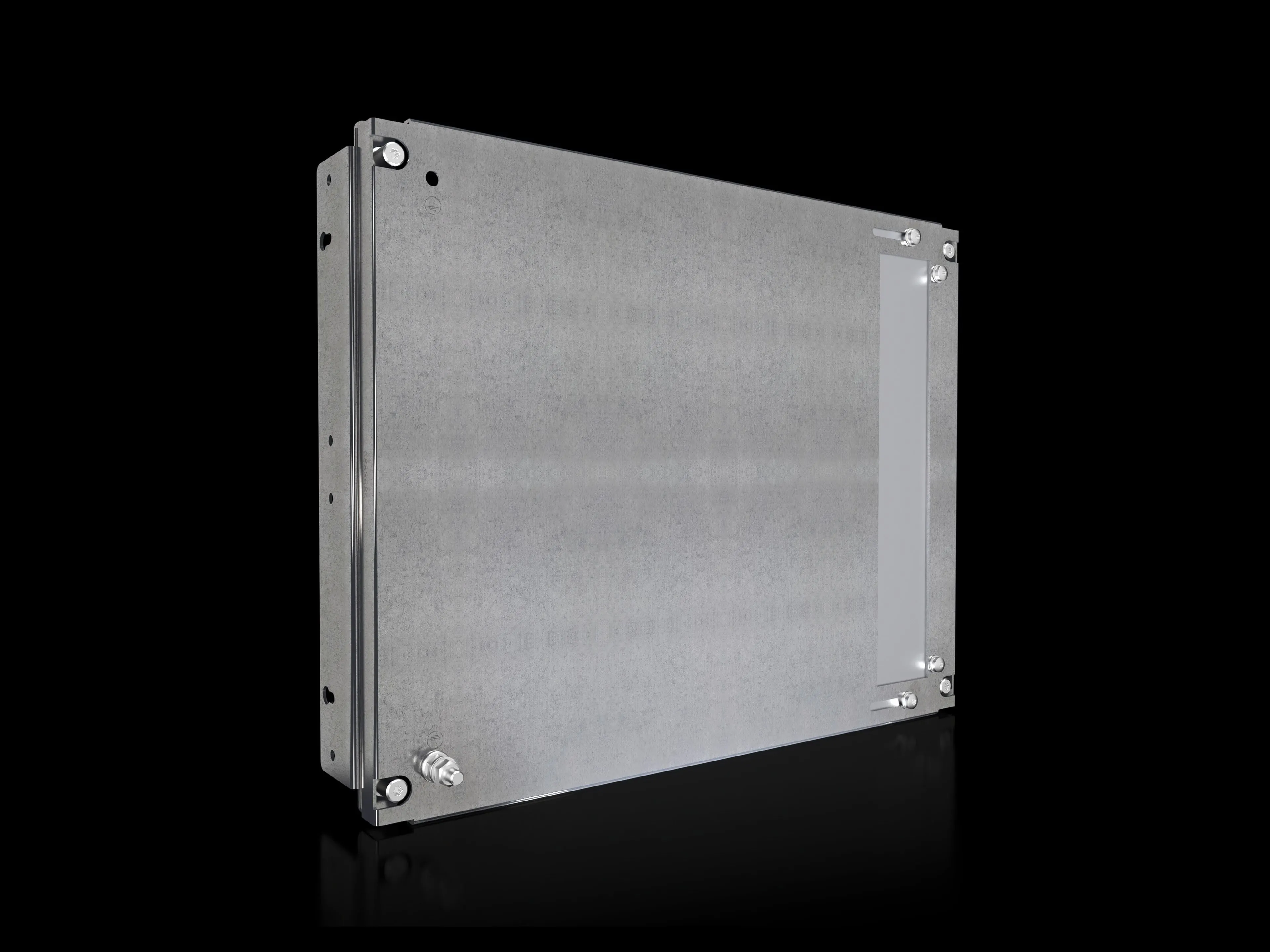

Rittal 9683564 Partial mounting plate – with duct 600 mm
Part Number: 9683564
Manufacturer
Rittal
Part number
9683564
Category
Alt Part Number
SV 9683.564
Quick Summary
Rittal 9683564 Partial mounting plate enables internal compartmentalisation inside switchgear enclosures. Engineers use it to add mounting levels and attach directly to the functional space side panel, simplifying wiring and future expansion. However, many teams struggle with rigid layouts that waste space and hinder rapid maintenance in tight cabinets. Certification details such as CE, IP ratings, or SIL are not specified in the data; nevertheless, the design uses 2 mm zinc-plated sheet steel and a gland made from insulating material to support safe operation in standard industrial environments. This solution enhances modularity, reduces assembly effort, and aligns with VX enclosure strategies, while supporting Form 1–4 internal configurations and scalable layouts for growing control systems.
Product Information
Extended Description
9683564 Rittal: SV Partial mounting plate, WH: 502x393 mm, with duct, for VX (W: 600 mm)
Article number
SV 9683.564
Design
with gland made from insulating material
Product description
For direct attachment to the compartment side panel for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel, internal compartmentalisation in accordance with Form 1 to 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
400 mm
Dimensions
Width: 502 mm | Height: 393 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
4.7 kg
PCF per pack (cradle-to-gate)
17.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177935075
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 502x393 mm, with duct, for VX (W: 600 mm)
Feature: Ducted mounting and direct side-panel attachment allow creating additional mounting levels without full cabinet redesign. Business Impact: Accelerates layout changes, reduces rework, and supports scalable control architectures. Application: Ideal for VX enclosures requiring modular interior compartmentalisation and future expansion. The second feature highlights material and finish: 2 mm zinc-plated sheet steel provides mechanical strength and corrosion resistance, extending service life in harsh environments and reducing maintenance cost. Application: suitable for rugged factory floors and electrical rooms, where reliability matters. Another feature is the precise dimensions and compatibility: Width 502 mm, Height 393 mm; To fit 600 mm width; For compartment height 400 mm. Impact: predictable fit with VX frames and internal Forms 1–4 configurations. A further feature is the supplied hardware: angle brackets and assembly parts, reducing on-site time and variance in field installations. Impact: faster project delivery and consistent assembly quality. The gland design, made from insulating material, improves electrical insulation and fault tolerance in live cabinet areas, aligning with safety practices. In addition, the pack composition and sustainability data—Pack 1, 4.7 kg per pack, PCF 17.9 kg CO2 eq (Cat B)—support responsible procurement and lifecycle thinking for industrial projects.
Get a Quick Quote for a Rittal 9683564
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9683564?
Enquire Now
FAQs
The plate attaches directly to the compartment side panel and uses included angle brackets and assembly parts to create additional mounting levels. With a width of 502 mm, height of 393 mm, and compatibility for 600 mm width, it fits standard VX frames and supports 400 mm compartment heights, streamlining interior reconfigurations.
Yes. The mounting plate is specified to fit VX enclosures with a 600 mm width, providing a reliable mounting surface and enabling additional interior levels without altering the enclosure footprint.
Key specs include dimensions 502 mm by 393 mm, 2 mm sheet steel material, zinc-plated finish, gland made from insulating material, and weight per pack of 4.7 kg. It includes angle brackets and parts necessary for installation and supports 400 mm compartment height.
Certification details such as CE, SIL, or IP ratings are not specified in the provided data. The product uses standard industrial materials and construction (2 mm zinc-plated steel, insulating gland) to align with common enclosure safety practices; verify in your regional compliance documents as needed.
The plate enables modular interior expansion, reducing downtime during reconfigurations and enabling future upgrades with minimal cabling disruption. Faster installation with included hardware lowers labor costs, while the durable zinc-plated steel and insulating gland improve reliability, reducing long-term maintenance expenses in VX enclosure projects.
