Rittal SV 9683.604 Partial mounting plate - 902x393 mm
Part Number: 9683604
Manufacturer
Rittal
Part number
9683604
Category
Alt Part Number
SV 9683.604
Quick Summary
Rittal SV 9683.604 Partial mounting plate enables internal compartmentalisation inside VX enclosures. Engineers often need flexible mounting levels without compromising enclosure integrity or increasing lead times. Note: certifications such as CE or IP ratings are not specified in this data; verify the official datasheet for compliance. The plate uses a 2 mm zinc-plated sheet steel construction, with a 902x393 mm footprint and included angle brackets, delivering reliable interior mounting for switchgear and controlgear while enabling scalable partitioning. This supports modular interior layouts, reduces external mounting complexity, and aligns with VX enclosure best practices for efficient, compliant installations.
Product Information
Extended Description

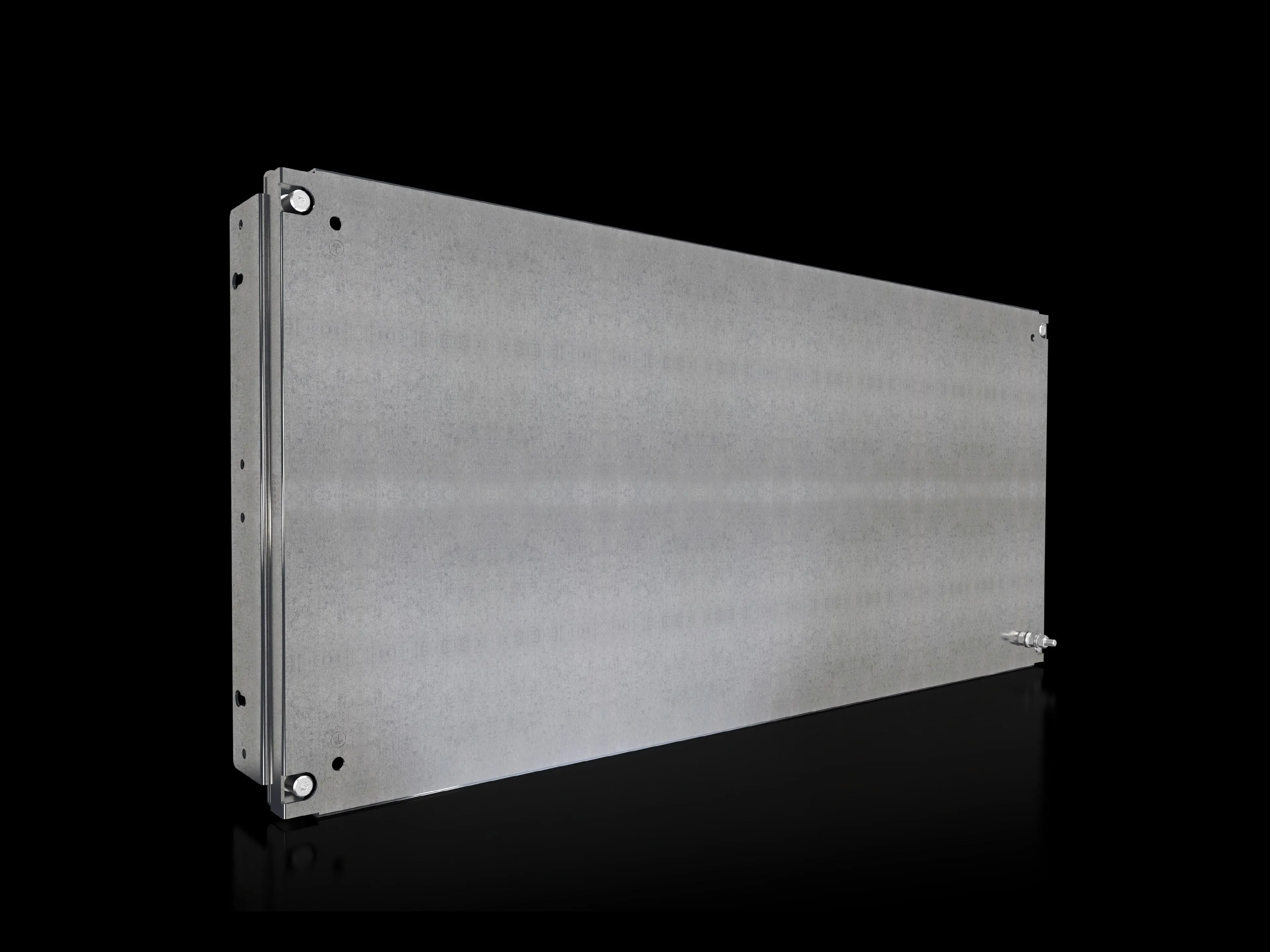

9683604 Rittal: SV Partial mounting plate, WH: 902x393 mm, solid, for VX (W: 1000 mm)
Article number
SV 9683.604
Design
solid
Product description
For direct attachment to the compartment side panel for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel, internal compartmentalisation in accordance with Form 1 to 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
400 mm
Dimensions
Width: 902 mm | Height: 393 mm
To fit
Width: = 1,000 mm
Packs of
1 pc(s).
Weight/pack
8 kg
PCF per pack (cradle-to-gate)
30.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177935044
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 902x393 mm, solid, for VX (W: 1000 mm)
Solid steel construction and zinc-plated finish deliver durable interior support and corrosion resistance, extending service life in harsh environments while keeping maintenance costs low. This translates to fewer field adjustments and fewer replacements, enabling more reliable panel mounting and long-term performance in VX enclosures. The 902x393 mm footprint fits precisely within standard VX layouts, and with a 400 mm compartment height, you can create additional mounting levels without resizing the enclosure. The included angle brackets and assembly parts streamline procurement and installation, reducing project lead times and labor costs while improving overall project predictability. The plate supports direct attachment to the compartment side panel for universal interior installation with switchgear and controlgear, enabling Form 1 to 4 internal compartmentalisation in combination with dividers and side panels. Environmentally, the PCF of 30.5 kg CO2 eq (Cat B) reflects a cradle-to-gate footprint that fits green procurement goals. These attributes help maintain consistent internal organization, simplify future upgrades, and support scalable automation projects. The 8 kg per-pack weight and single-pack packaging optimize handling, shipping, and on-site logistics for modular material planning. This makes the SV 9683.604 a practical choice for standardised VX installations and multi-bay panels.
