Rittal SV 9683.626 Partial Mounting Plate - 2 mm steel
Part Number: 9683626
Manufacturer
Rittal
Part number
9683626
Category
Alt Part Number
SV 9683.626
Quick Summary
The Rittal SV 9683.626 partial mounting plate enables internal compartmentalisation by attaching directly to the side panel. For engineers, this solves space constraints and modularity challenges in VX enclosures by adding mounting levels without increasing enclosure footprint. It aligns with industry classifications ETIM EC001900 and ECLASS 27400613, supporting interoperability and procurement workflows. This solution also improves serviceability and maintenance planning while delivering consistent interior installation quality. By standardizing mounting hardware and using a robust zinc-plated 2 mm steel construction, it delivers reliable performance in power management and distribution applications, enabling faster assembly and scalable configurations within industrial control panels. Secondary benefits include compatibility with form factors up to 600 mm compartment height and ease of future expansion.
Product Information
Extended Description

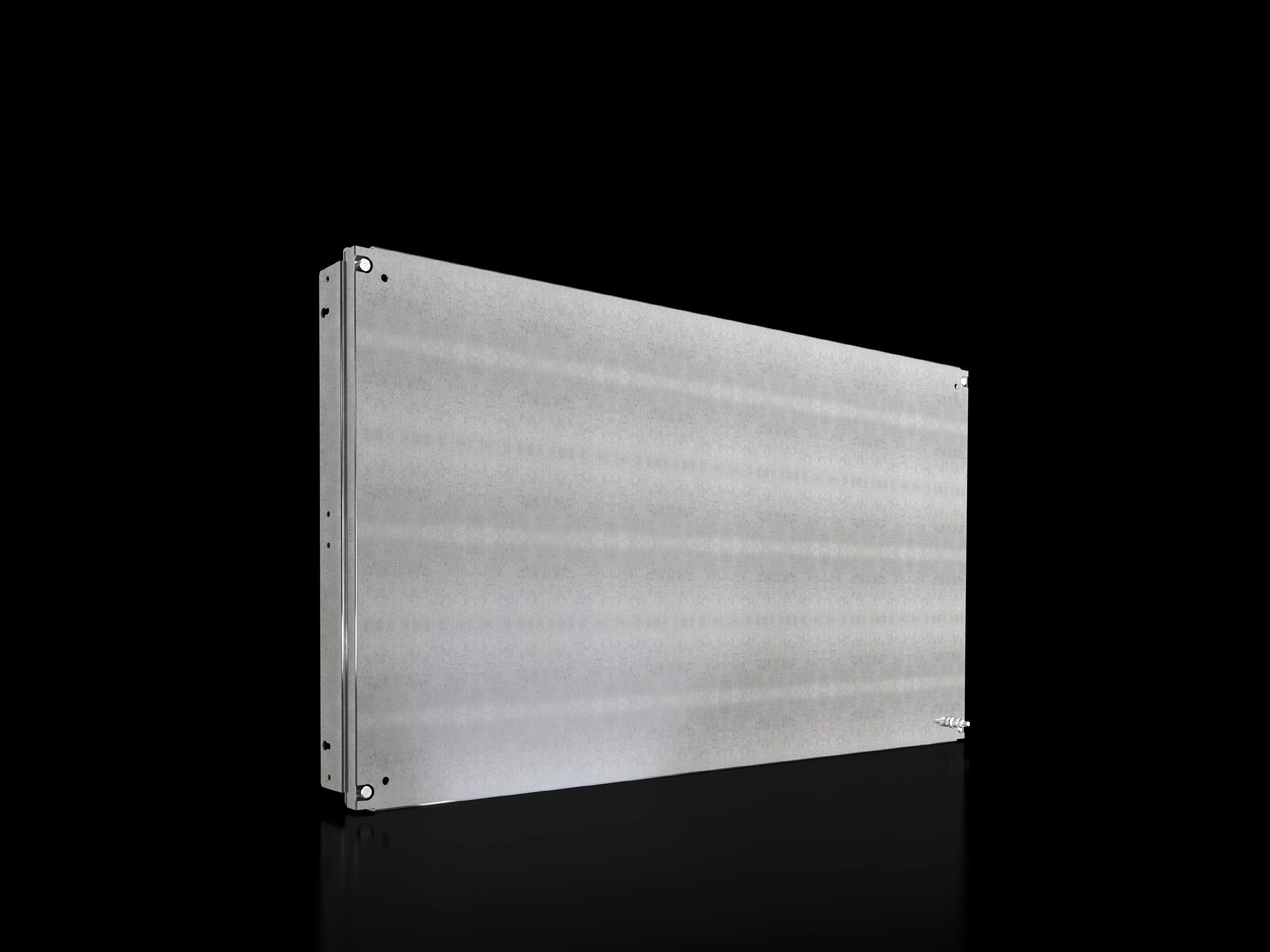

9683626 Rittal: SV Partial mounting plate, WH: 1102x593 mm, solid, for VX (W: 1200 mm)
Article number
SV 9683.626
Design
solid
Product description
For direct attachment to the compartment side panel for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel, internal compartmentalisation in accordance with Form 1 to 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
600 mm
Dimensions
Width: 1,102 mm | Height: 593 mm
To fit
Width: = 1,200 mm
Packs of
1 pc(s).
Weight/pack
13.46 kg
PCF per pack (cradle-to-gate)
51.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177935341
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 1102x593 mm, solid, for VX (W: 1200 mm)
Feature: Solid 2 mm sheet steel construction; Business Impact: Provides a sturdy, vibration-resistant mounting platform that maintains equipment alignment and reduces mechanical wear over time; Application: Ideal for universal interior installation with switchgear and controlgear in VX enclosures, enabling reliable service life. Feature: Zinc-plated surface finish; Business Impact: Delivers corrosion resistance in harsh industrial environments, lowering maintenance costs and downtime; Application: Suitable for long-term operation in power management and distribution panels. Feature: Precise dimensions for VX compatibility; Business Impact: Ensures straightforward integration with VX widths up to 1,200 mm and compartment heights of around 600 mm, reducing assembly iterations; Application: Fast, repeatable installation in modular enclosures. Feature: Includes angle brackets and assembly parts; Business Impact: Streamlines on-site installation, cuts project lead times, and minimizes separate sourcing requirements; Application: Supports rapid retrofits and expansion. Feature: Pack weight and handling clarity; Business Impact: Clear material handling and logistics planning, reducing mis-orders and ensuring predictable installation costs; Application: Suitable for single-pack configurations in standard enclosure projects. Feature: Supports multiple mounting levels; Business Impact: Increases interior capacity for controlgear and switchgear, enabling Form 1 to 4 compartment configurations; Application: Facilitates scalable interior layouts in VX systems.
Get a Quick Quote for a Rittal 9683626
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9683626?
Enquire Now
FAQs
Install by attaching the plate directly to the compartment side panel using the included angle brackets and assembly parts. Ensure the plate aligns with the VX width of 1,200 mm and the compartment height of 600 mm, then add mounting levels as needed. The 2 mm steel construction provides rigidity and long-term stability for controlgear mounting.
Yes. The plate is designed for VX enclosures with a width of 1,200 mm and a side-panel space matching WH 1102x593 mm, supporting interior installation up to 600 mm compartment height. This compatibility enables straightforward retrofits and scalable interior layouts without enclosure rework.
The plate uses 2 mm sheet steel with a zinc-plated finish for corrosion resistance. It weighs 13.46 kg per pack and ships with angle brackets and assembly parts, facilitating quick and reliable installation in industrial control panels and power distribution enclosures.
The product aligns with ETIM 9 EC001900 and ECLASS 8.0 27400613 classifications, supporting interoperability, cataloging, and procurement workflows. These classifications help ensure consistent part matching across industrial systems and supplier catalogs.
Using this mounting plate increases interior modularity by enabling additional mounting levels, reduces assembly time, and standardizes interior configurations from Form 1 to 4. This leads to faster project completion, easier future expansions, and lower total cost of ownership in power management and distribution applications.
