Rittal 9683628 SV Partial Mounting Plate - Zinc-Plated
Part Number: 9683628
Manufacturer
Rittal
Part number
9683628
Category
Alt Part Number
SV 9683.628
Quick Summary
The SV Partial mounting plate from Rittal enables internal mounting levels inside VX enclosures. It tackles the common pain point of rigid layouts that slow reconfiguration and complicate maintenance. The data lists ETIM EC001900 and ECLASS 8.0 27400613 classifications, with CE, IP, or SIL certifications not specified. This rugged 2 mm sheet steel, zinc-plated plate includes angle brackets and assembly parts for quick, reliable installation, supporting universal interior installation with switchgear and controlgear. By enabling additional mounting levels and Form 1 to 4 compartmentalisation when used with dividers and side panels, it delivers scalable, cost-efficient organization for modern control cabinets.
Product Information
Extended Description

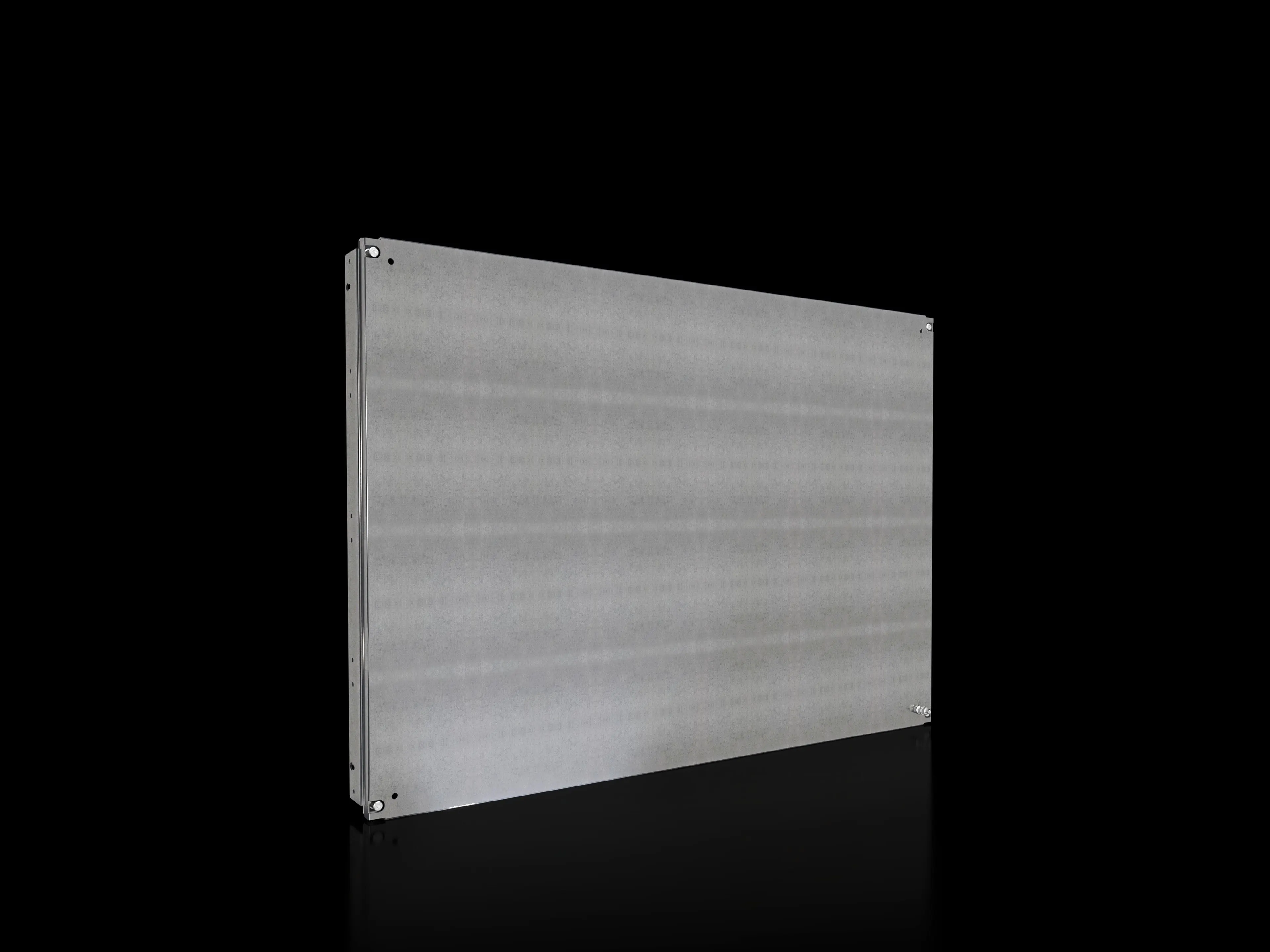

9683628 Rittal: SV Partial mounting plate, WH: 1102x793 mm, solid, for VX (W: 1200 mm)
Article number
SV 9683.628
Design
solid
Product description
For direct attachment to the compartment side panel for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel, internal compartmentalisation in accordance with Form 1 to 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
800 mm
Dimensions
Width: 1,102 mm | Height: 793 mm
To fit
Width: = 1,200 mm
Packs of
1 pc(s).
Weight/pack
17.98 kg
PCF per pack (cradle-to-gate)
68.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177935112
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 1102x793 mm, solid, for VX (W: 1200 mm)
Material and finish: The plate is made from 2 mm sheet steel and zinc-plated, delivering durable corrosion resistance. Business impact: Enhanced longevity and lower maintenance costs in harsh cabinet environments. Application: Ideal for VX enclosures where long-term reliability matters. Dimension fit and mounting compatibility: Width 1,102 mm and height 793 mm, designed for VX systems with a 1,200 mm width. Business impact: Precision fit reduces alignment time and prevents loose installations, improving overall assembly speed. Application: Direct attachment to the side panel for stable interior layouts and added mounting levels. Included hardware: Supplied with angle brackets and assembly parts. Business impact: Simplifies procurement and speeds up initial setup. Application: Supports rapid deployment across multiple panels and configurations. Sustainability and capacity: Weight per pack is 17.98 kg with a cradle-to-gate PCF of 68.5 kg CO2 eq (Category B). Business impact: Demonstrates responsible material choice and supports environmental reporting. Application: Suitable for high-density control gear with compartment heights up to 800 mm and Form 1–4 layouts when used with dividers.
