Rittal 9683668 Partial mounting plate - Solid 2 mm steel
Part Number: 9683668
Manufacturer
Rittal
Part number
9683668
Category
Alt Part Number
SV 9683.668
Quick Summary
The Rittal 9683668 Partial mounting plate is designed for internal compartmentalisation in VX enclosures, enabling universal interior installation with switchgear and controlgear. Engineers often struggle to create extra mounting levels without compromising space, alignment, or service access; this plate provides a stable, 502x793 mm footprint with a 600 mm width fit. In regulated applications, certifications such as CE compliance, IP protection levels, and SIL safety substantiation are commonly required; the data here references ETIM and ECLASS classifications, but please verify with official documentation for formal approvals. By standardising the mounting platform, you gain faster assembly, easier maintenance, and better traceability in project reports.
Product Information
Extended Description

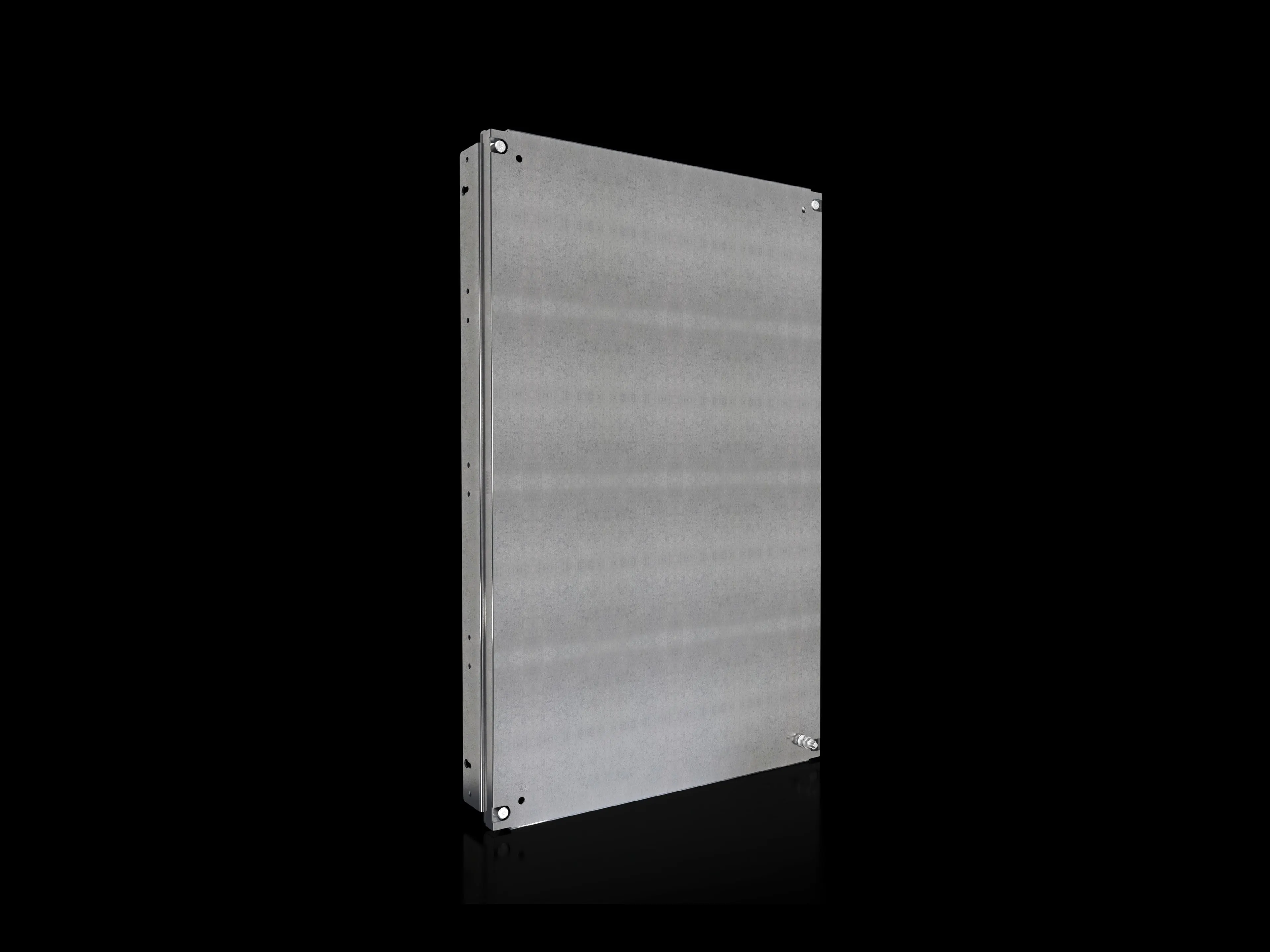

9683668 Rittal: SV Partial mounting plate, WH: 502x793 mm, solid, for VX (W: 600 mm)
Article number
SV 9683.668
Design
solid
Product description
For direct attachment to the compartment side panel for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel, internal compartmentalisation in accordance with Form 1 to 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
800 mm
Dimensions
Width: 502 mm | Height: 793 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
10 kg
PCF per pack (cradle-to-gate)
38.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177935273
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 502x793 mm, solid, for VX (W: 600 mm)
Solid sheet steel of 2 mm thickness with zinc-plated surface provides durable, corrosion-resistant mounting for industrial environments, reducing maintenance cycles and replacement costs while ensuring long-term reliability in VX interior installations. Business impact: lower lifecycle risk and predictable service intervals, enabling forward-planning and cost control for panel assembly in control gear applications. Application: ideal for universal interior installation with switchgear and controlgear, enabling creation of additional mounting levels and straightforward reconfiguration as system needs evolve. The included angle brackets and assembly parts streamline on-site setup, shortening installation time and improving install quality in tight cabinet spaces. Business impact: faster rack consolidation and fewer misaligned components, boosting overall equipment efficiency. Application: fits W 600 mm VX enclosures, supporting scalable layouts and simplified cable management. Addressing common objections: the 2 mm steel plate delivers robust rigidity without adding excessive weight, while zinc plating protects against corrosion in humid or dirty environments. Application: suitable for assembly lines, fault-tolerant control panels, and other high-usage cabinet areas. The product’s packaging and weight information enable accurate logistics planning and accurate project costing for manufacturing facilities and data centers.
Get a Quick Quote for a Rittal 9683668
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9683668?
Enquire Now
FAQs
Yes. The SV 9683.668 is designed for VX enclosures with a 600 mm width. It attaches directly to the compartment side panel using included angle brackets and assembly parts, enabling additional mounting levels while maintaining service access. The plate is made from 2 mm sheet steel and finished zinc-plated for corrosion resistance, ensuring reliable performance in industrial environments.
Key dimensions are width 502 mm and height 793 mm, designed to fit VX compartments with a 600 mm width, and it supports a compartment height of 800 mm. Each pack weighs 10 kg, with packaging designed for single-item procurement. This enables straightforward layout planning, cabinet loading estimates, and compatible mounting density within VX enclosures.
The provided data sheet lists material and dimensional specs along with ETIM 9 and ECLASS 8.0 classifications but does not explicitly state CE or IP certifications. For formal approvals, consult the official Rittal datasheet or contact the supplier to confirm current CE marking and IP protection levels for this mounting plate in your installation context.
The plate creates additional mounting levels, enabling universal interior installation with switchgear and controlgear, which simplifies cable routing and reduces panel depth constraints. With angle brackets and assembly parts included, on-site assembly becomes quicker and more repeatable, lowering commissioning time and enabling easier maintenance access without retries or rework.
