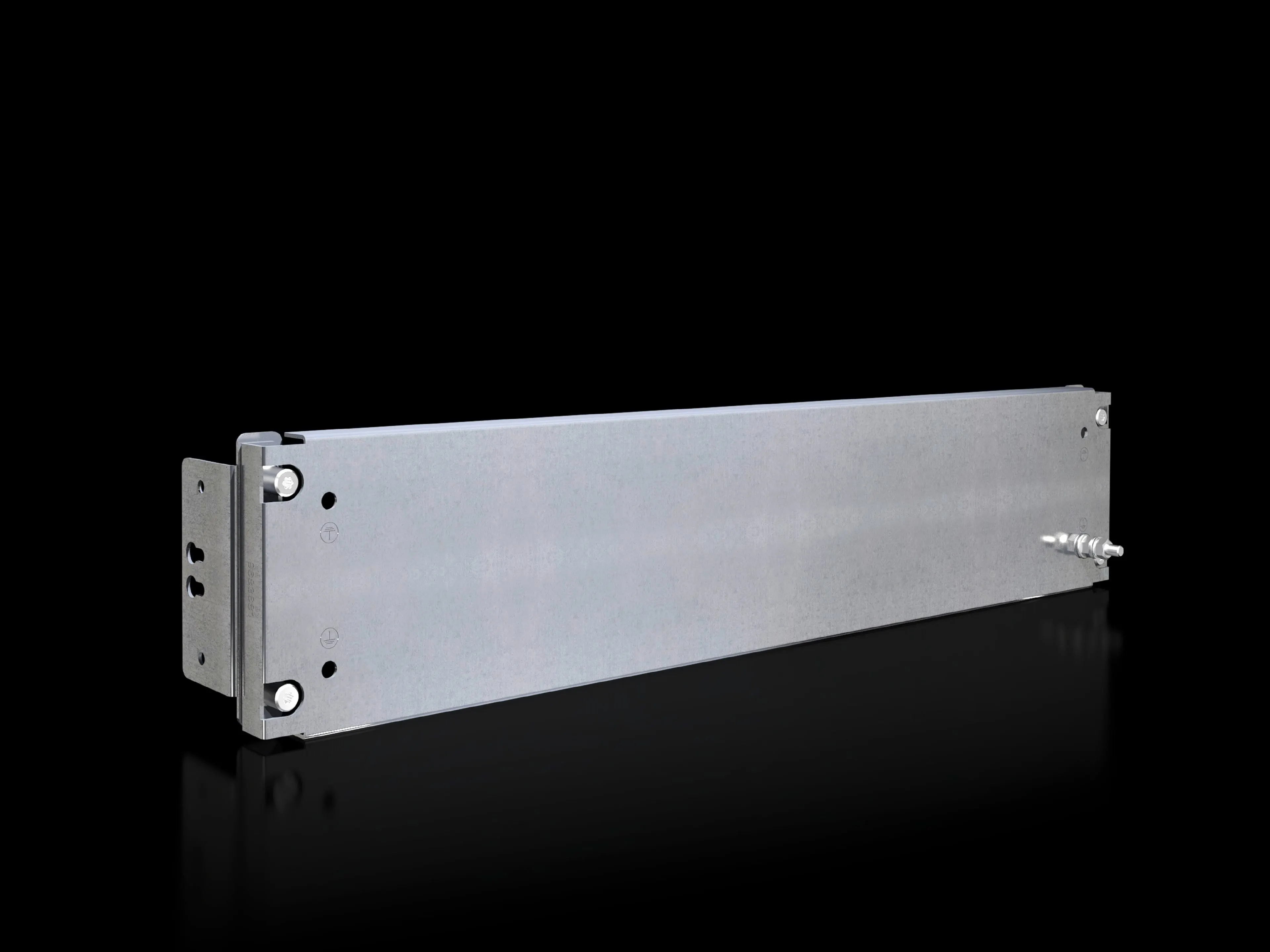

Rittal 9683681 SV Partial mounting plate - zinc-plated, 2 mm
Part Number: 9683681
Manufacturer
Rittal
Part number
9683681
Category
Alt Part Number
SV 9683.681
Quick Summary
Rittal 9683681 SV Partial mounting plate is designed for internal compartmentalisation in VX enclosures. For engineers managing compact switchgear and controlgear installations, it addresses the challenge of adding mounting levels without reworking the side panel. The plate uses 2 mm sheet steel and is zinc-plated for corrosion resistance, with dimensions of 702x143 mm and compatibility with VX frames up to 800 mm wide, supporting internal forms 1 through 4 when combined with dividers. This approach reduces assembly steps, improves mounting precision, and enhances service access, delivering measurable cost savings and higher reliability in control cabinet projects. By enabling scalable interior layouts, it supports efficient procurement and streamlined maintenance for evolving automation systems.
Product Information
Extended Description
9683681 Rittal: SV Partial mounting plate, WH: 702x143 mm, solid, for VX (W: 800 mm)
Article number
SV 9683.681
Design
solid
Product description
For direct attachment to the compartment side panel for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel, internal compartmentalisation in accordance with Form 1 to 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
150 mm
Dimensions
Width:Â 702 mm | Height:Â 143 mm
To fit
Width:Â = 800 mm
Packs of
1 pc(s).
Weight/pack
2.76 kg
PCF per pack (cradle-to-gate)
10.5Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177935266
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 702x143 mm, solid, for VX (W: 800 mm)
Feature: 702x143 mm mounting plate, 2 mm sheet steel, zinc-plated. Business Impact: provides a durable, corrosion-resistant interior mounting surface, enabling predictable spacing and reliability. Application: ideal for universal interior installation with switchgear and controlgear in VX enclosures. Feature: Direct attachment to the compartment side panel for internal compartmentalisation. Business Impact: reduces installation time and risk of misalignment, improving first-pass assembly quality. Application: suitable for Form 1 to 4 configurations when used with dividers and side panels. Feature: Supplied with angle brackets and assembly parts. Business Impact: minimizes accessory sourcing steps and guarantees correct alignment during retrofit or new builds. Application: supports quick-onsite mounting and repeatable layouts in control panels. Feature: Dimensions and weight – Width 702 mm, Height 143 mm; Weight per pack 2.76 kg; PCF 10.5 kg CO2 eq (Cat B). Business Impact: helps engineers plan space and evaluate sustainability impact for enclosure projects while sizing for weight limits. Application: aligns with enclosure space planning and lifecycle assessment. Feature: To fit VX width 800 mm and height 150 mm compartment compatibility. Business Impact: ensures seamless integration with existing VX frames and divider systems, reducing surprises during installation. Application: supports Form 1–4 compartmentalisation when paired with dividers and side panels. Feature: Material and finish – Sheet steel, 2 mm, zinc-plated. Business Impact: offers robust, long-lasting performance in industrial environments while enabling compliant interior layouts. Application: ideal for switchgear and controlgear installations requiring durable interiors.
