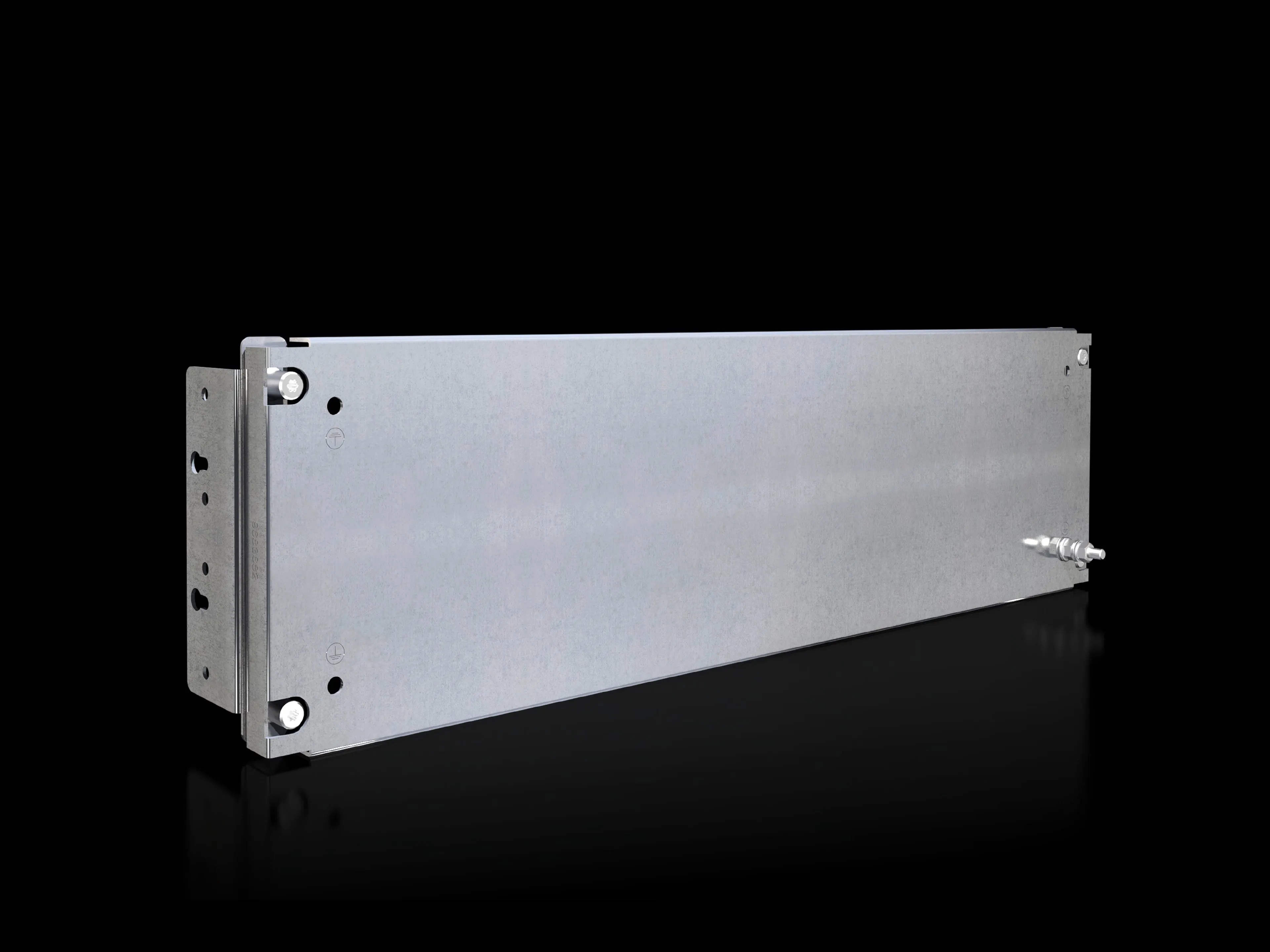

Rittal SV 9683.682 Partial Mounting Plate - Solid
Part Number: 9683682
Manufacturer
Rittal
Part number
9683682
Category
Alt Part Number
SV 9683.682
Quick Summary
Rittal SV 9683.682 Partial Mounting Plate is designed for direct attachment to VX enclosure side panels, enabling flexible interior compartmentalisation and multiple mounting levels. Many engineers wrestle with constrained cabinet space and uneven equipment layouts, which slow deployment and raise maintenance costs. This plate supports universal interior installation with switchgear and controlgear while creating additional mounting levels, improving organization and serviceability. It adheres to industry standards such as ETIM EC001900 and ECLASS 27400613, ensuring compatibility with modern catalogs and procurement workflows. The zinc-plated 2 mm sheet steel construction delivers durable corrosion resistance in typical enclosure environments, and the included angle brackets simplify installation, reducing assembly time and field errors. Ideal for cabinets with VX frames seeking scalable, compliant interior solutions.
Product Information
Extended Description
9683682 Rittal: SV Partial mounting plate, WH: 702x193 mm, solid, for VX (W: 800 mm)
Article number
SV 9683.682
Design
solid
Product description
For direct attachment to the compartment side panel for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel, internal compartmentalisation in accordance with Form 1 to 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
200 mm
Dimensions
Width: 702 mm | Height: 193 mm
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
3.46 kg
PCF per pack (cradle-to-gate)
13.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177935389
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 702x193 mm, solid, for VX (W: 800 mm)
Feature → Solid 2 mm sheet steel, zinc-plated construction resists corrosion in harsh cabinet environments. Business Impact → Extends service life and lowers maintenance costs by reducing rust-related downtime. Application → Ideal for universal interior installation with switchgear and controlgear inside VX enclosures. Feature → Dimensions 702x193 mm with a mounting width compatible to 800 mm. Business Impact → Enables precise fit and consistent mounting density across assemblies. Application → Strong support for compact rack layouts and interior compartmentalisation up to 200 mm height. Feature → Includes angle brackets and assembly parts. Business Impact → Speeds up installation and minimizes lost hardware. Application → Facilitates quick, error-free mounting during field deployment. Feature → Pack configuration 1 pc per pack; weight 3.46 kg; PCF 13.2 kg CO2 eq (Cat B). Business Impact → Predictable logistics and a lower environmental footprint across cradle-to-gate assessment. Application → Suitable for procurement workflows demanding sustainability metrics. Feature → Supports interior partitioning and Form 1–4 configuration with dividers. Business Impact → Improves organisation of controlgear and switchgear, reducing commissioning time. Application → Ideal for VX cabinets requiring scalable interior solutions across multiple projects. long-tail keywords integrated: VX enclosure interior mounting plate, interior compartmentalisation, Form 1 to 4 partitioning, zinc-plated steel mounting plate, cabinet mounting density, installation brackets.
