Rittal SV 9683.683 Partial Mounting Plate - Zinc-plated
Part Number: 9683683
Manufacturer
Rittal
Part number
9683683
Category
Alt Part Number
SV 9683.683
Quick Summary
Rittal SV 9683.683 partial mounting plate is a robust interior accessory that enables direct attachment to the compartment side panel and supports universal interior installation of switchgear and controlgear. This solution helps engineers overcome space constraints and create scalable mounting levels without disturbing existing layouts. The plate aligns with ETIM EC001900 and ECLASS 27400613 classifications to ensure interoperability with standard components. Its compact footprint and 300 mm compartment height, along with VX enclosure compatibility, deliver repeatable fit across systems while reducing assembly time and total cost of ownership.
Product Information
Extended Description

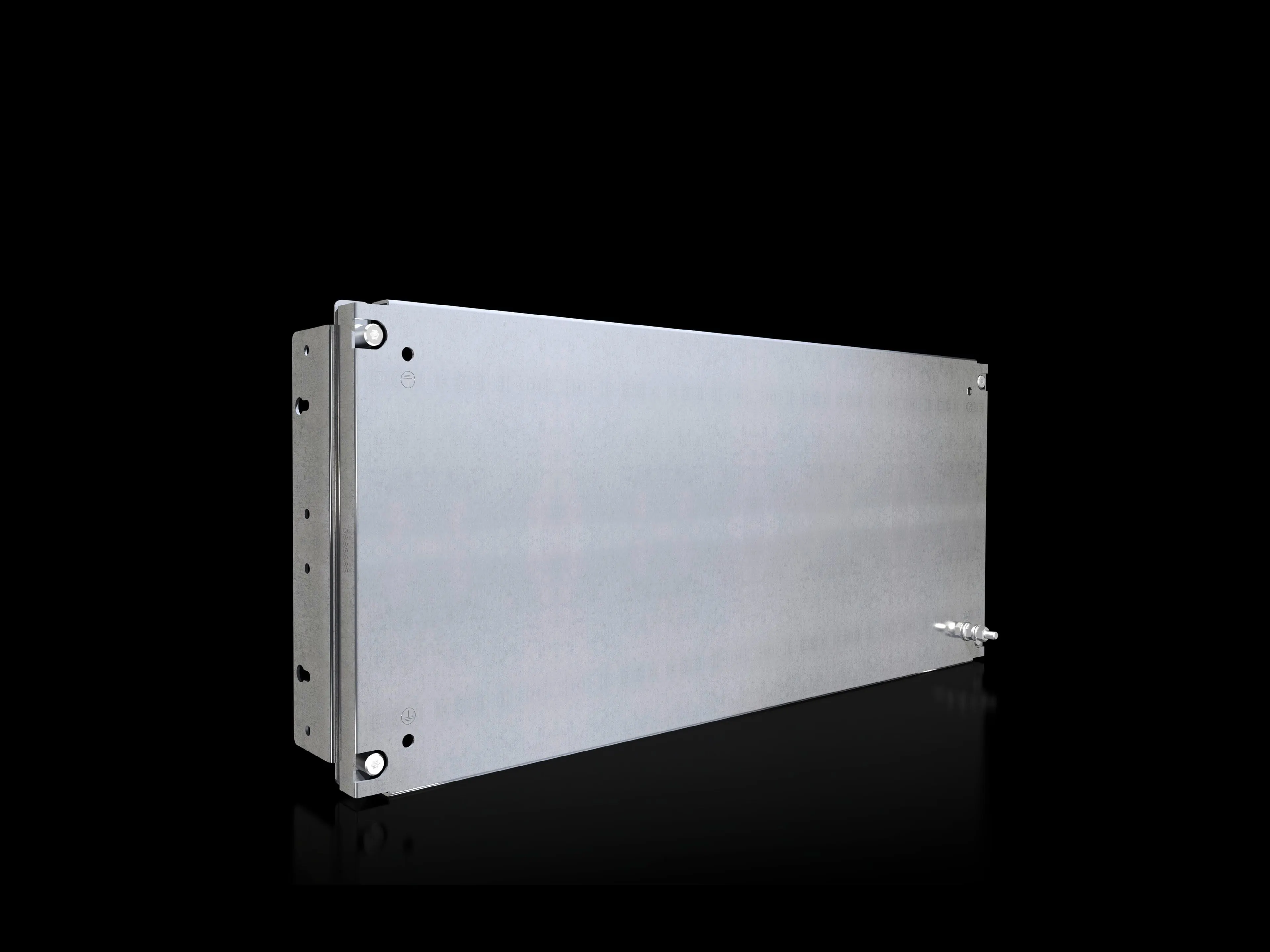

9683683 Rittal: SV Partial mounting plate, WH: 702x293 mm, solid, for VX (W: 800 mm)
Article number
SV 9683.683
Design
solid
Product description
For direct attachment to the compartment side panel for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel, internal compartmentalisation in accordance with Form 1 to 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
300 mm
Dimensions
Width: 702 mm | Height: 293 mm
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
5 kg
PCF per pack (cradle-to-gate)
19.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177935181
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 702x293 mm, solid, for VX (W: 800 mm)
Solid 2 mm sheet steel construction provides high rigidity to support mounted equipment and minimize deflection in vibration-prone environments, improving long-term reliability and serviceability within VX enclosures. The zinc-plated finish offers corrosion resistance in harsh industrial settings, reducing maintenance demands and downtime while preserving surface integrity during installation and operation. With dimensions of 702 mm width and 293 mm height, and a design that fits VX enclosures up to 800 mm wide, it delivers predictable, repeatable interior layouts that speed up project timelines. The pack weight of 5 kg and cradle-to-gate PCF of 19.1 kg CO2 eq (Category B) support sustainable logistics and life-cycle assessments. Supplied with angle brackets and assembly parts, it streamlines on-site installation and minimizes purchasing complexity. The product enables interior compartmentalisation with dividers and side panels for Form 1 to 4, enhancing modularity and future-proofing controlgear installations. This aligns with modular interior engineering practices, reducing rework and supporting scalable configurations across multiple projects.
