Rittal SV Partial mounting plate 9683684 - VX 800 mm
Part Number: 9683684
Manufacturer
Rittal
Part number
9683684
Category
Alt Part Number
SV 9683.684
Quick Summary
Rittal SV Partial mounting plate enables compact interior mounting for VX enclosures, improving space utilization. In tight cabinets, adding mounting levels and modular interior partitions can be time-consuming and error-prone. While formal CE, IP, or SIL ratings are not listed in these data, the product aligns with ETIM EC001900 and ECLASS 27400613 classifications, supporting reliability and interoperability. The design supports universal interior installation with switchgear and controlgear and creates modular space for Form 1 to 4 compartmentalisation. This translates to faster installations, scalable interior installation, and clearer, repeatable builds for panel builders and integrators seeking efficient, compliant solutions.
Product Information
Extended Description

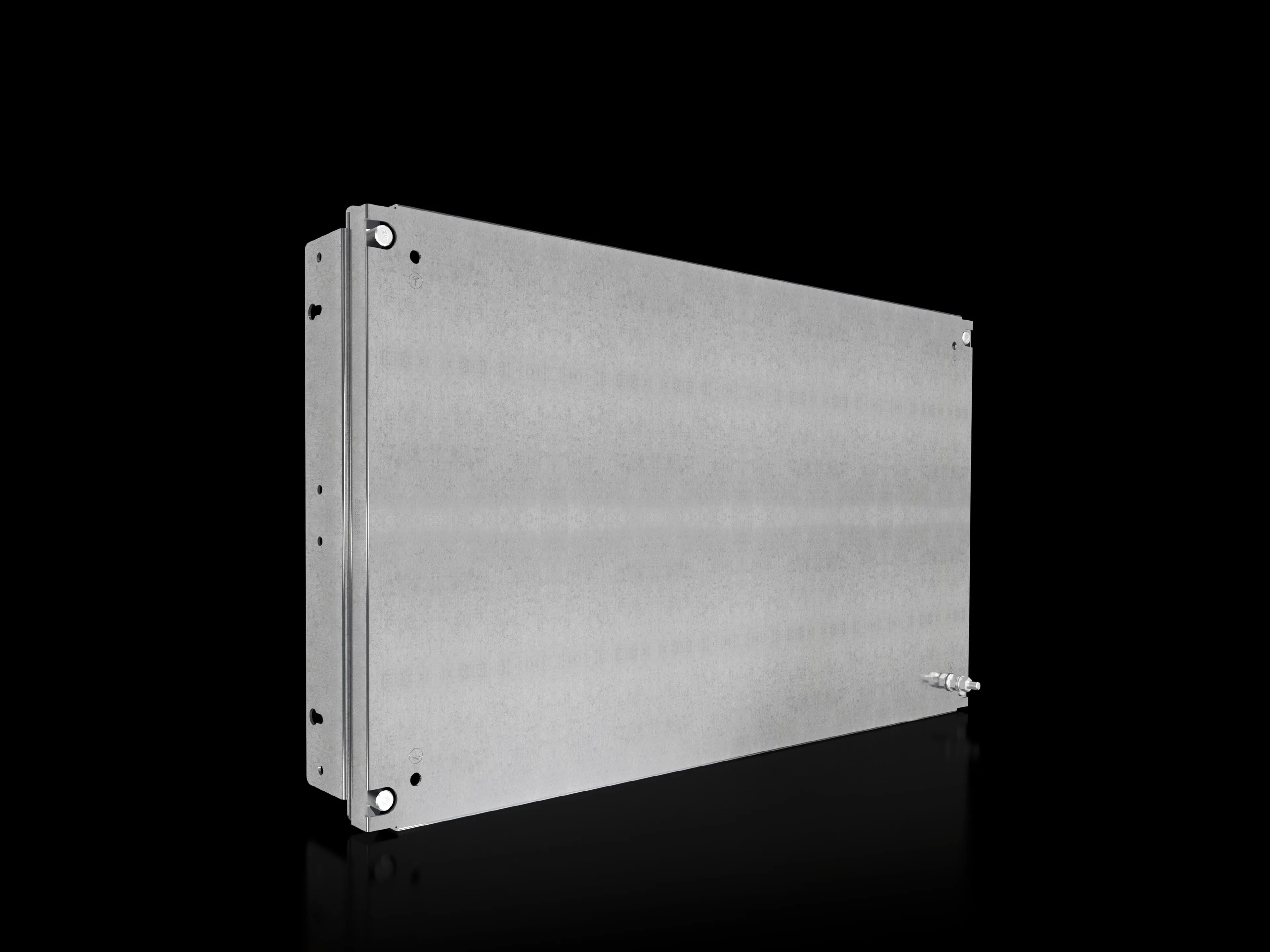

9683684 Rittal: SV Partial mounting plate, WH: 702x393 mm, solid, for VX (W: 800 mm)
Article number
SV 9683.684
Design
solid
Product description
For direct attachment to the compartment side panel for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel, internal compartmentalisation in accordance with Form 1 to 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
400 mm
Dimensions
Width: 702 mm | Height: 393 mm
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
6.4 kg
PCF per pack (cradle-to-gate)
24.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177935129
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 702x393 mm, solid, for VX (W: 800 mm)
Feature → Business Impact → Application: Solid 2 mm sheet steel with zinc-plated finish provides robust durability and corrosion resistance, reducing maintenance cycles and extending service life in demanding environments. This translates to lower lifecycle costs and dependable performance in VX enclosures used in manufacturing control systems and power distribution. Feature → Compatibility → Application: Dimensions of 702x393 mm with 800 mm fitting width enable direct attachment to the VX side panel, enabling universal interior installation and straightforward integration with compartment dividers. Application spans switchgear, controlgear, and modular interior layouts across Form 1 to Form 4 configurations. Feature → Installation efficiency → Application: Supplied with angle brackets and assembly parts shortens on-site prep time, improving project timelines for panel builders and integrators. Feature → Sustainability → Application: PCF 24.4 kg CO2 eq per pack (Cat B) reflects responsible material choice for industrial projects seeking lower embodied emissions while meeting space constraints and modularity needs.
