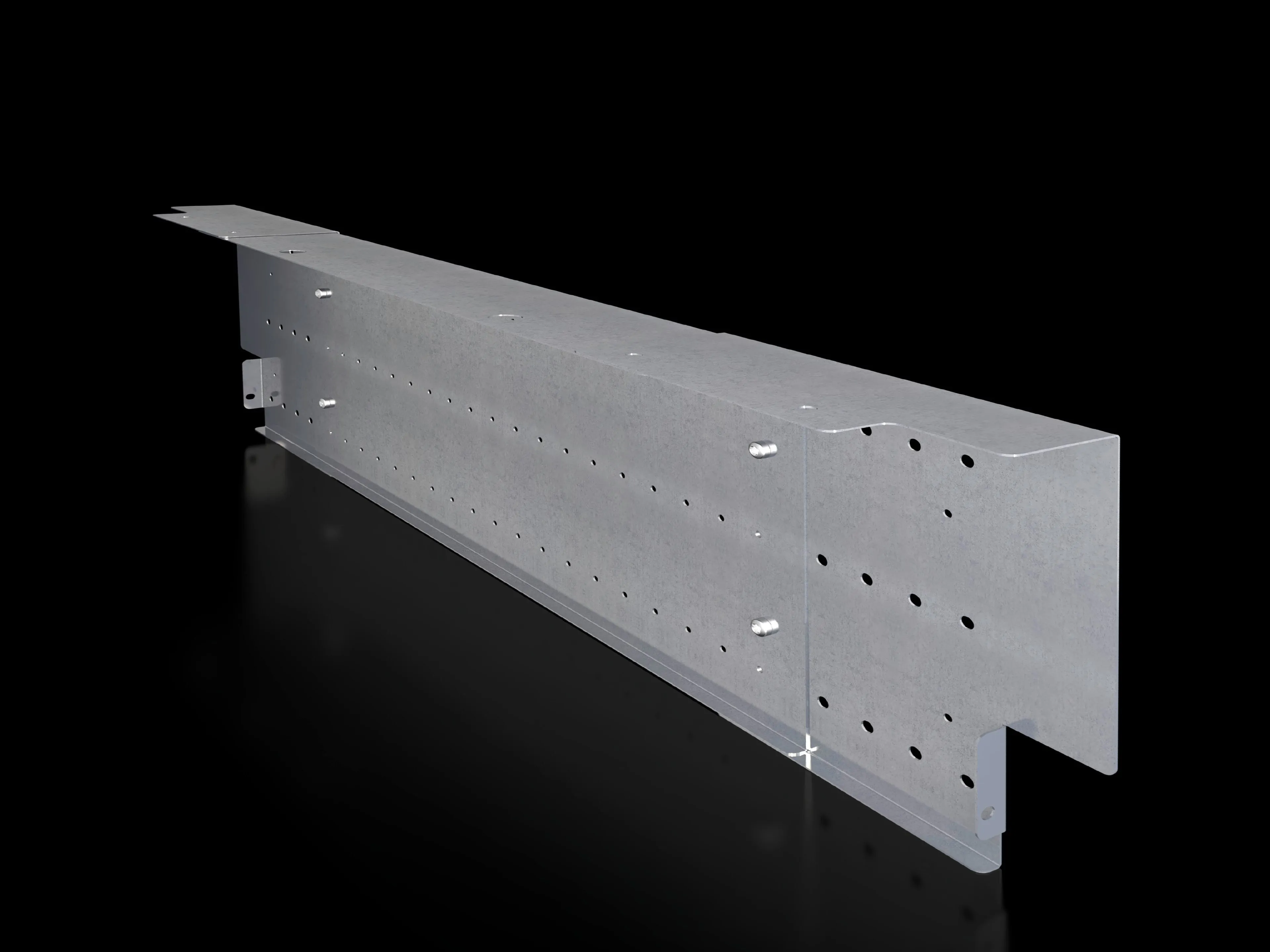

Rittal SV 9683.736 Wiring trim panel - Zinc-plated
Part Number: 9683736
Manufacturer
Rittal
Part number
9683736
Category
Alt Part Number
SV 9683.736
Quick Summary
SV 9683.736 wiring trim panel enables modular cable routing inside Ri4Power VX enclosures. Tight spaces and complex cabling often slow service, create cable clutter, and elevate fault risk. This panel’s internal compartmentalisation supports clean, scalable layouts with pre-punched cut-outs for a dedicated wiring channel. It is designed for 600 and 800 mm VX widths, reducing install time and simplifying future reconfigurations. In EU markets, CE-compliant design and standard data classifications such as ETIM EC002617 and ECLASS 27142423 help with compliance and procurement integration. Together with its sheet steel construction and zinc-plated finish, it delivers durability in harsh environments while keeping total cost of ownership attractive.
Product Information
Extended Description
9683736 Rittal: SV Wiring trim panel, 3-part, for VX (W: 600/800 mm)
Article number
SV 9683.736
Product description
|
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
1 wiring trim panel, 3-part | Assembly parts
Note
For vertical cable routing, compartment dividers enable the installation of a wiring channel, thanks to pre-punched cut-outs.
To fit
Width: = 600 mm | = 800 mm
Packs of
1 pc(s).
Weight/pack
2.54 kg
PCF per pack (cradle-to-gate)
9.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177937529
ETIM 9
EC002617
ECLASS 8.0
27142423
Product description
SV Wiring trim panel, 3-part, for VX (W: 600/800 mm)
Feature → Business Impact → Application: Three-part wiring trim panel provides compartmentalised spaces and a dedicated wiring channel, accelerating cable routing and reducing risk of miswiring. This improves installation accuracy and shortens commissioning time in Ri4Power VX cabinets; suitable for widths of 600 or 800 mm. Feature → Business Impact → Application: Sheet steel construction delivers stiffness and durability in demanding environments; combined with zinc-plated surface finish, it resists corrosion and minimizes maintenance costs over the cabinet lifecycle. Feature → Business Impact → Application: Supplied as a single pack with assembly parts, simplifying procurement and on-site fulfillment; weight per pack is 2.54 kg, enabling straightforward handling and faster reselection during cabinet reconfigurations. Feature → Business Impact → Application: Cradle-to-gate PCF 9.7 kg CO2 eq (Cat B) supports sustainability goals; aligns with category-based PCF reporting for building and industrial projects. Feature → Business Impact → Application: Pre-punched cut-outs and vertical routing compatibility enable quick rework and future scalability without wholesale panel replacement. Feature → Business Impact → Application: ETIM EC002617 and ECLASS 27142423 classifications improve data quality in procurement systems and ERP onboarding.
