Rittal 9683763 SV 9683.763 DIN rail frame - 2x24 pitch
Part Number: 9683763
Manufacturer
Rittal
Part number
9683763
Category
Alt Part Number
SV 9683.763
Quick Summary
Rittal 9683763 SV 9683.763 DIN rail frame enables DIN rail-mounted devices to be mounted reliably in compact control cabinets. Many panel builders struggle with space constraints, misalignment, and partial modularity when fitting multiple protective devices. Certifications to verify in the official documentation include CE conformity and IP rating details, ensuring the solution meets common EU and enclosure protection expectations. In practice, this frame accelerates installation and reduces errors by delivering a complete mounting solution for DIN rails. With 2x24 pitch units and a 600 mm width, it supports robust organization of circuits while keeping accessibility for maintenance in busy control environments. Electrical teams value predictable installation times and scalable space division as their projects scale.
Product Information
Extended Description

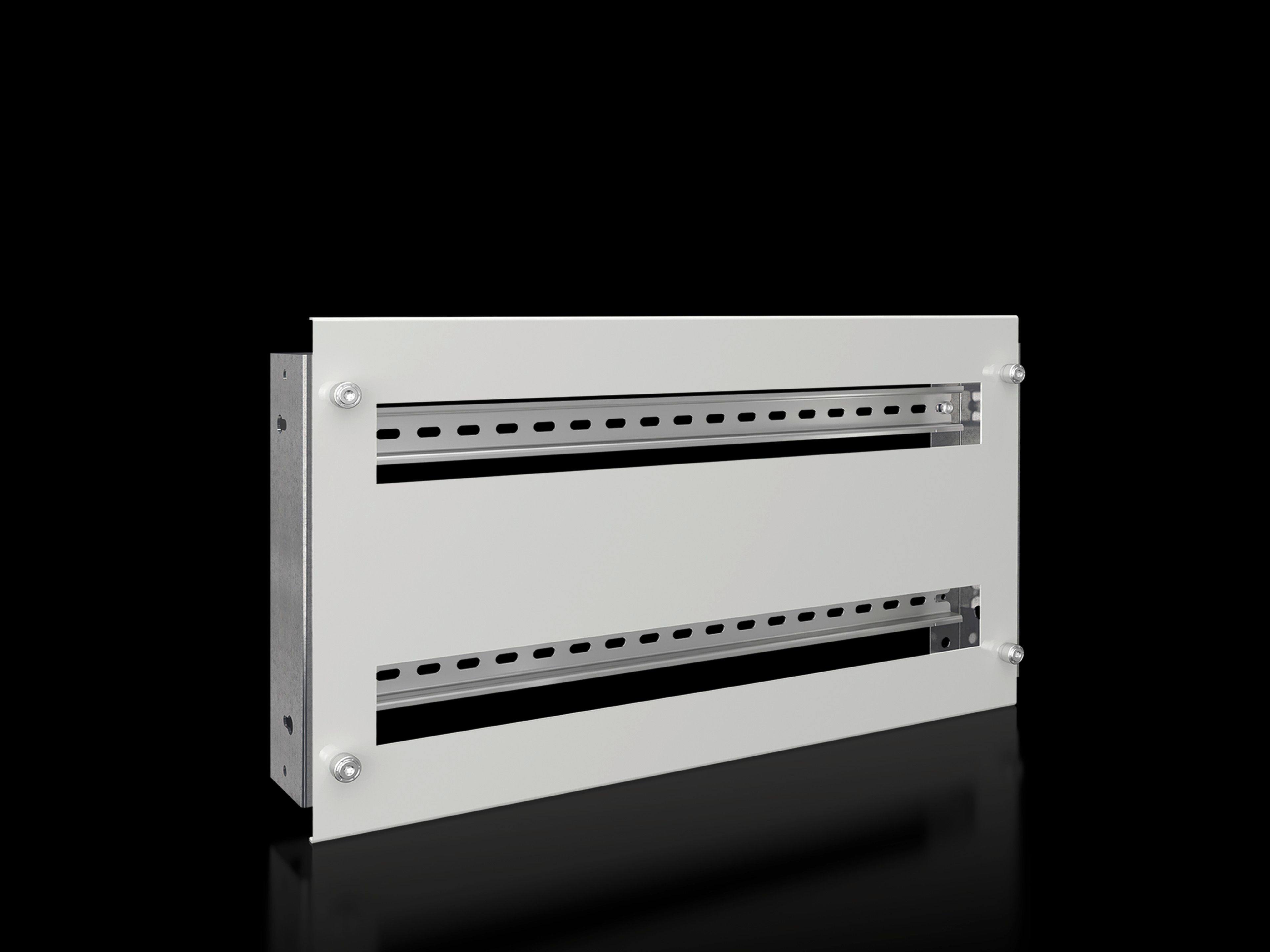

9683763 Rittal: SV Support frame, for DIN rail-mounted devices, 2 x 24 pitch units, WH: 500x295 mm, for VX (W: 600 mm)
Article number
SV 9683.763
Product description
Support frame set for accepting DIN rail-mounted devices (e.g. MCBs). The support rails are fastened with two mounting brackets to the compartment side panel. The cover is fastened to the support frame with knurled screws. In combination with functional space dividers, partial mounting plates and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Support frame: Sheet steel, zinc-plated, passivated, 1.5 mm | Cover: Sheet steel, spray finished, 1.5 mm
Supply includes
Support rails | 2 mounting brackets | 1 cover with cut-out | Assembly parts
For compartment height
300 mm
To fit
Width:Â = 600 mm
No. of pitch units 17.5 mm
2 x 24
Packs of
1 pc(s).
Weight/pack
3.14 kg
PCF per pack (cradle-to-gate)
12Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
39269097
EAN
4028177937321
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Support frame, for DIN rail-mounted devices, 2 x 24 pitch units, WH: 500x295 mm, for VX (W: 600 mm)
Feature: 2x24 pitch units, 600 mm width, 500x295 mm enclosure footprint and 300 mm compartment height. Business Impact: Enables efficient allocation of DIN rail devices (e.g., MCBs) within VX enclosures, improving space utilization and reducing rework during panel wiring. Application: Ideal for compact control cabinets where modularity and clear circuit separation are required. These dimensions also support easy cable routing and maintenance access. Feature: Material and finish. Business Impact: Sheet steel construction, zinc-plated and passivated (1.5 mm) with a spray-finished cover (1.5 mm) delivers durable, corrosion-resistant performance in harsh industrial environments. Application: Suitable for factory floors and power distribution panels where long-term reliability matters. Feature: Complete supply includes rails, two mounting brackets, one cover with cut-out, and assembly parts. Business Impact: Reduces procurement and assembly time by delivering a ready-to-install kit, lowering total installation costs and labor. Application: Quick-use framing solutions for project timelines and lean manufacturing. Feature: Internal modularity options. Business Impact: With functional space dividers, partial mounting plates, and side panel modules, internal compartmentalisation supports Form 2, 3 or 4 configurations, improving safety and fault isolation. Application: Panels requiring segmented zones for different circuits or protection devices. Feature: Sustainability and packaging. Business Impact: PCF per pack 12 kg CO2 eq (Cat B) and weight per pack of 3.14 kg let you benchmark environmental impact and optimize logistics. Application: Aligns with green procurement programs while maintaining total cost of ownership considerations. Feature: Compatibility and installation advantages. Business Impact: The width 600 mm and height 300 mm compatibility ensure straightforward integration into VX-sized enclosures and standard DIN rail layouts, reducing the risk of misfit and rework. Application: Suitable for new builds and retrofits where existing DIN rail devices must be accommodated with minimal changes.
