Rittal SV 9683.783 DIN Rail Frame for VX 800 mm
Part Number: 9683783
Manufacturer
Rittal
Part number
9683783
Category
Alt Part Number
SV 9683.783
Quick Summary
Rittal SV 9683.783 is a DIN rail support frame for mounting MCBs and similar devices. This frame helps organize compact control panels by enabling modular spacing and secure device mounting. Certification specifics are not provided in the dataset; verify CE marking, IP rating, or SIL compliance as required for your installation. The design supports internal compartmentalisation and scalable layouts, making it easier to adapt panels for Form 2, 3 or 4 configurations. In practice, this frame delivers reliable mechanical support, straightforward assembly, and a clear path to standardized layouts while aligning with common industrial panel-building workflows.
Product Information
Extended Description

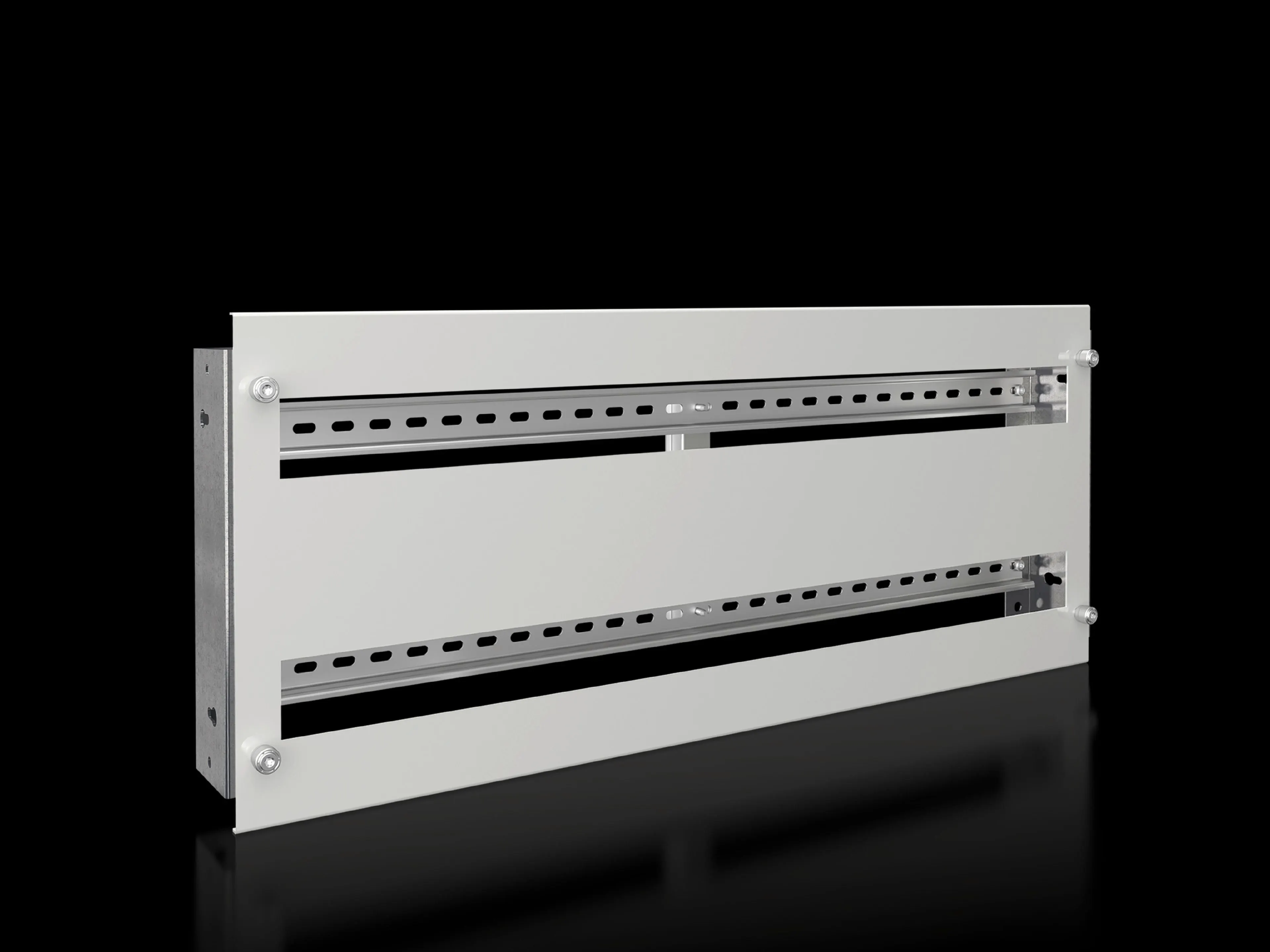

9683783 Rittal: SV Support frame, for DIN rail-mounted devices, 2 x 24 pitch units, WH: 700x295 mm, for VX (W: 800 mm)
Article number
SV 9683.783
Product description
Support frame set for accepting DIN rail-mounted devices (e.g. MCBs). The support rails are fastened with two mounting brackets to the compartment side panel. The cover is fastened to the support frame with knurled screws. In combination with functional space dividers, partial mounting plates and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Support frame: Sheet steel, zinc-plated, passivated, 1.5 mm | Cover: Sheet steel, spray finished, 1.5 mm
Supply includes
Support rails | 2 mounting brackets | 1 cover with cut-out | Assembly parts
For compartment height
300 mm
To fit
Width: = 800 mm
No. of pitch units 17.5 mm
2 x 36
Packs of
1 pc(s).
Weight/pack
4.3 kg
PCF per pack (cradle-to-gate)
16.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
39269097
EAN
4028177937338
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Support frame, for DIN rail-mounted devices, 2 x 24 pitch units, WH: 700x295 mm, for VX (W: 800 mm)
Material strength and durability drive long service life in industrial environments. Feature → Business Impact → Application: The frame uses zinc-plated sheet steel (1.5 mm) and a spray-finished cover (1.5 mm), delivering robust protection against corrosion while maintaining a slim profile ideal for dense panel spaces. This translates to reduced maintenance costs and fewer field failures in critical control cabinets. Feature → Business Impact → Application: With 2 x 36 pitch units and a 17.5 mm pitch metric, it accommodates a broad range of DIN rail-mounted devices, enabling flexible device placement and faster upgrades during plant modernization. This is especially valuable for upgrade cycles in manufacturing lines where space is at a premium. Feature → Business Impact → Application: The unit includes supply components—rails, 2 mounting brackets, a cut-out cover, and assembly parts—streamlining installation and minimizing vendor coordination. This reduces installation time by hours and lowers labor costs on new builds or refurbishments. Feature → Business Impact → Application: Internal compartmentalisation support allows Form 2–4 configurations, improving separation of power and control circuits, enhancing safety and maintenance access, and supporting compliance with panel layout standards. Feature → Business Impact → Application: The cradle-to-gate PCF value (16.4 kg CO2 eq, Cat B) provides a transparent sustainability metric for budgeting and supplier audits, helping teams meet internal and regulatory sustainability goals. Feature → Business Impact → Application: Compatibility with VX-wide enclosures (800 mm width) and a 300 mm compartment height supports standardized installations across multiple line items, reducing part variance and improving stocking efficiency. Feature → Business Impact → Application: The combination of two mounting brackets and knurled screws offers quick field assembly and straightforward disassembly for maintenance, enabling faster fault isolation and service turnarounds. Feature → Business Impact → Application: The frame carries ETIM 9 EC001900 and ECLASS 8.0 references, aiding procurement systems in accurate product classification and supplier data consistency across ERP platforms.
Get a Quick Quote for a Rittal 9683783
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9683783?
Enquire Now
FAQs
Begin by securing the support rails to the compartment side panel using the two mounting brackets. Attach the cover with the included knurled screws, then slide in DIN rail-mounted devices on the 2x36 pitch rails. Use the assembly parts to complete internal division if Form 2–4 layouts are required. This sequence minimizes tool use and speeds up commissioning.
The frame is designed for DIN rail-mounted devices such as MCBs and other 17.5 mm pitch devices, arranged across two 36-pitch sections. It fits panels up to 800 mm wide with a compartment height of 300 mm, offering flexible device placement and easy future upgrades.
Certification details are not listed in the provided data. Please check the official documentation or contact the supplier to confirm CE marking, IP ratings, or SIL compliance for your specific installation and regulatory requirements.
The package includes support rails, two mounting brackets, one cover with a cut-out, and assembly parts, plus knurled screws for secure cover attachment. These components streamline on-site assembly and reduce the need for additional hardware purchases.
The product lists a cradle-to-gate PCF of 16.4 kg CO2 eq (Category B). This metric supports life-cycle assessments and supplier sustainability audits when planning panel builds and supplier selection.
