Rittal 9684900 SV Contact Hazard Protection Cover - IP 2X
Part Number: 9684900
Manufacturer
Rittal
Part number
9684900
Category
Alt Part Number
SV 9684.900
Quick Summary
SV contact hazard protection cover provides finger-safe protection for NH fuse-switch disconnectors in VX rear sections of TS 1000 mm enclosures. Without this accessory, panel operators risk accidental contact, arc flash exposure, and compliance gaps during routine maintenance. The part is CE-certified, delivers IP 2X finger protection, and aligns with ETIM EC001638 and ECLASS 27142116 data standards to simplify procurement. Designed for VX enclosures with a 1000 mm width and compatible with busbar supports 9686.060/9686.070, it reduces risk, speeds service, and supports safer, compliant power distribution across the factory floor.
Product Information
Extended Description

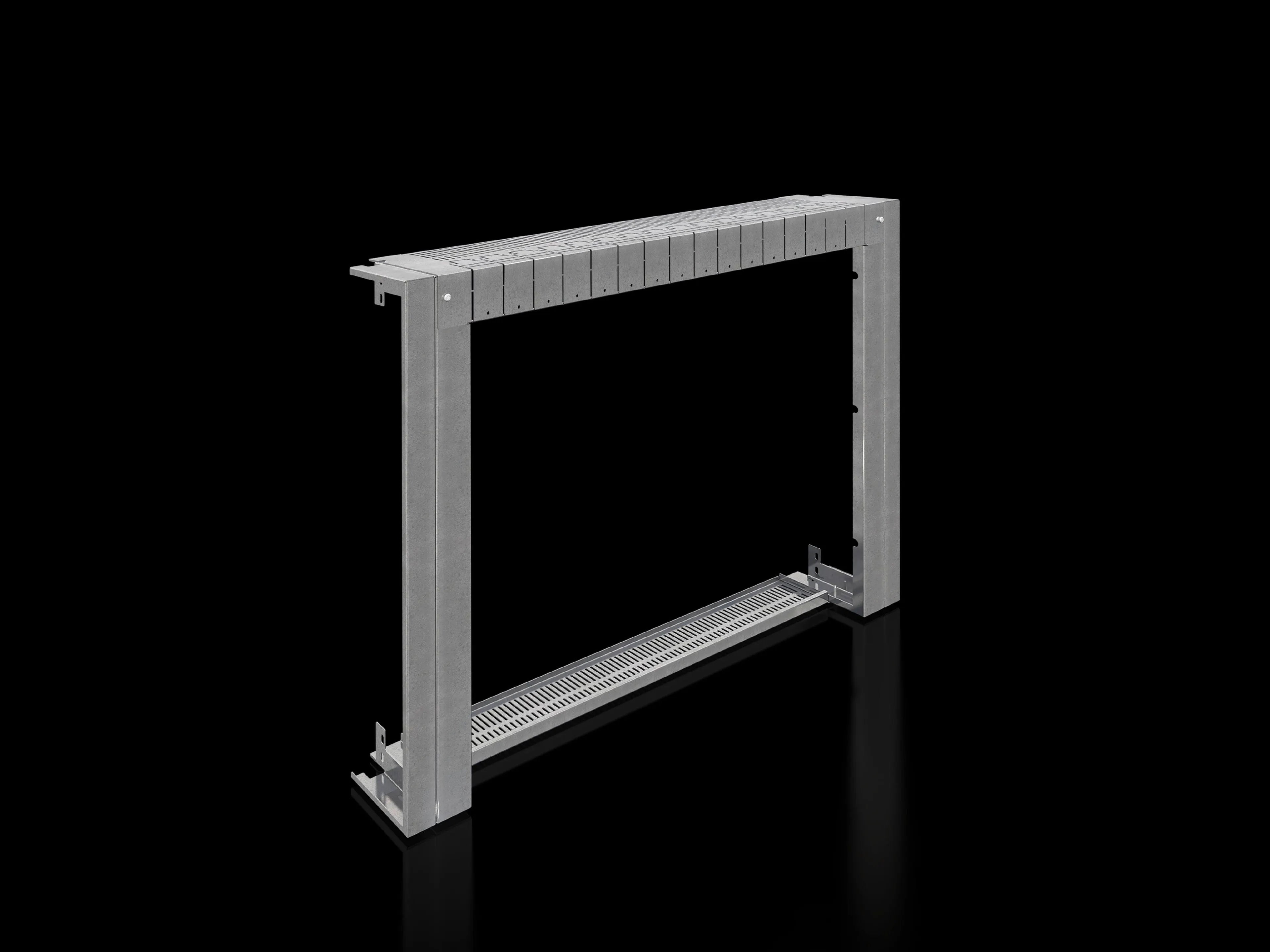

9684900 Rittal: SV Contact hazard protection cover, plate Form 2b (fuse-switch disconnector, section), for VX (W: 1000 mm)
Article number
SV 9684.900
Product description
To cover outgoing sections with NH slimline fuse-switch disconnectors and busbar system in the rear enclosure section so that they are safe from finger contact (IP 2X).
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
4 side panels (left/right side) | 2 side panels (top/bottom) | Assembly parts
Usable width for Flat-PLS
800 mm
Note
The specified installation width when using the contact hazard protection cover only applies when using busbar support 9686.060/9686.070
To fit
Enclosure type: TS | Width: = 1,000 mm
Packs of
1 pc(s).
Weight/pack
7.48 kg
PCF per pack (cradle-to-gate)
28.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177936843
ETIM 9
EC001638
ECLASS 8.0
27142116
Product description
SV Contact hazard protection cover, plate Form 2b (fuse-switch disconnector, section), for VX (W: 1000 mm)
Durable construction delivers long service life in demanding cabinet environments; the cover uses 1.5 mm sheet steel and a zinc-plated finish to resist corrosion and keep enclosure fronts neat. This translates into fewer replacements and lower lifecycle costs while preserving electrical integrity in rear sections for NH fuse-switch disconnectors. Complete supply package accelerates installation and reduces sourcing complexity; with four side panels, two top/bottom panels, and assembly parts, technicians can assemble the enclosure quickly without hunting for compatible components. The solution also supports integration with the VX busbar system and 9686.060/9686.070 supports for a reliable installation width. Finger-protection rating to IP 2X provides a tangible safety upgrade, helping meet safety programs and audits without sacrificing accessibility for maintenance. The zinc-plated steel and Form 2b plate design ensure robust protection around outgoing sections and busbar connections. Fit and width compatibility are optimized for 1000 mm TS enclosures and provide 800 mm usable width for Flat-PLS configurations, improving routing and reducing misalignment. Environmental and procurement considerations matter; PCF per pack is 28.5 kg CO2 eq (Cat B) and weight per pack is 7.48 kg, enabling accurate carbon accounting and predictable freight costs. For procurement teams, the ETIM and ECLASS alignment streamlines cataloging and supplier onboarding. Note on installation width: the specified width applies when using busbar support 9686.060/9686.070, ensuring installers select the correct combination for a given cabinet.
Get a Quick Quote for a Rittal 9684900
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9684900?
Enquire Now
FAQs
SV 9684.900 is designed for VX rear sections in TS-type enclosures with a 1000 mm width. It supports the busbar system via busbar supports 9686.060/9686.070 and provides a usable 800 mm width for Flat-PLS configurations, ensuring proper alignment and safe installation within standard cabinet footprints.
Key specs include 1.5 mm sheet steel construction with a zinc-plated finish, IP 2X protection, and a weight of 7.48 kg per pack. The usable width for Flat-PLS is 800 mm, with a 1000 mm enclosure fitment. The supply includes four side panels (L/R), two top/bottom panels, and assembly parts, plus related standards such as ETIM EC001638 and ECLASS 27142116.
Yes. The SV 9684.900 is CE-certified and provides IP 2X finger protection for NH fuse-switch disconnectors in rear enclosure sections. It aligns with ETIM EC001638 and ECLASS 27142116 for cataloging and procurement, supporting safe integration into TS-type enclosures and compliance workflows.
The cover delivers direct finger protection for outgoing sections, reducing the risk of accidental contact during operation and maintenance. Its included assembly parts simplify installation, while the robust zinc-plated steel construction withstands industrial environments. In practice, this translates to fewer safety incidents, faster service, and more predictable maintenance windows.
Investing in SV 9684.900 reduces safety-related downtime and enhances compliance, which lowers risk-related costs. The 7.48 kg per pack and PCF of 28.5 kg CO2 eq enable better lifecycle and environmental accounting. Coupled with faster installation and standardized data (ETIM/ECLASS), procurement and maintenance teams realize tangible savings over cabinet upgrades.
