Rittal 9684960 SV Contact Hazard Cover - IP 2X
Part Number: 9684960
Manufacturer
Rittal
Part number
9684960
Category
Alt Part Number
SV 9684.960
Quick Summary
Rittal 9684960 SV Contact hazard protection cover provides safe isolation for NH fuse-switch disconnectors in rear enclosure sections. Maintenance teams often face finger-contact risk during servicing, making protection covers essential for safe operation. This accessory carries CE conformity and recognized industry classifications such as ETIM EC001638 and ECLASS 27142116, with IP 2X protection to guard personnel and equipment. The 1.5 mm zinc-plated sheet steel offers durable, corrosion-resistant safety, while the 600 mm enclosure fit ensures reliable integration with VX and TS type enclosures. By simplifying installation, aligning with busbar systems, and enabling scalable protection across panels, it delivers tangible value for manufacturers and end users seeking safer, compliant switchgear assemblies.
Product Information
Extended Description

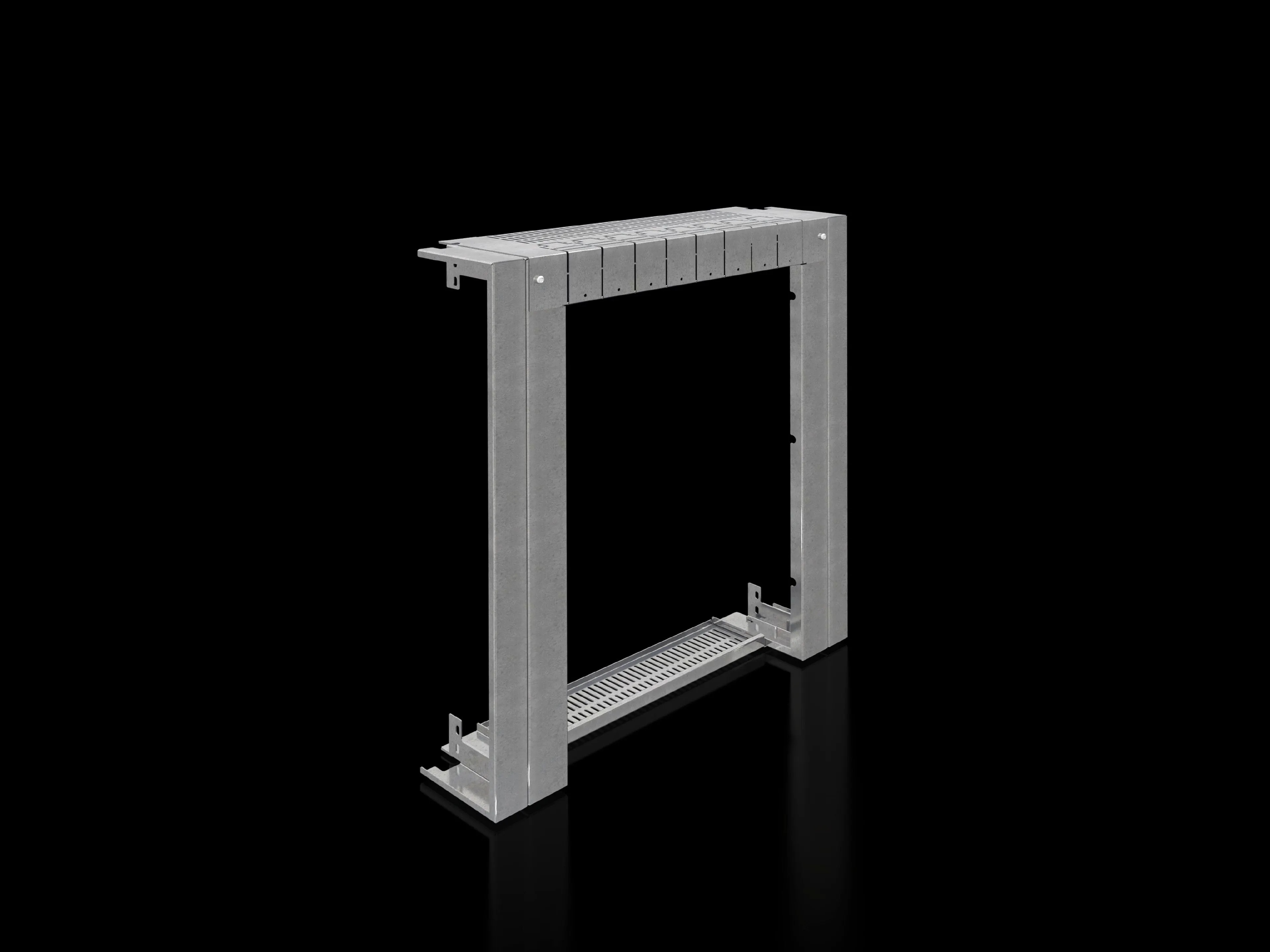

9684960 Rittal: SV Contact hazard protection cover, plate Form 2b (fuse-switch disconnector, section), for VX (W: 600 mm)
Article number
SV 9684.960
Product description
To cover outgoing sections with NH slimline fuse-switch disconnectors and busbar system in the rear enclosure section so that they are safe from finger contact (IP 2X).
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
4 side panels (left/right side) | 2 side panels (top/bottom) | Assembly parts
Usable width for Flat-PLS
400 mm
Note
The specified installation width when using the contact hazard protection cover only applies when using busbar support 9686.060/9686.070
To fit
Enclosure type: TS | Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
6 kg
PCF per pack (cradle-to-gate)
22.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177936829
ETIM 9
EC001638
ECLASS 8.0
27142116
Product description
SV Contact hazard protection cover, plate Form 2b (fuse-switch disconnector, section), for VX (W: 600 mm)
Feature material and finish: 1.5 mm zinc-plated sheet steel provides corrosion resistance and long-term durability in harsh electrical environments. Business impact: reduces maintenance costs and extends service life of enclosure components. Application: suitable for VX rear sections in TS-type enclosures, delivering reliable finger-contact protection during routine inspections. Feature inclusion: the kit ships with four side panels (left/right), two side panels (top/bottom), and assembly parts. Business impact: accelerates installation, minimizes field part counting, and reduces total installation time by offering a complete, ready-to-assemble package. Application: ideal for panel builders seeking faster assembly in 600 mm-wide VX systems. Usable width compatibility: 400 mm usable width for Flat-PLS (busbar system) ensures proper clearance and integration. Business impact: optimizes space planning and avoids rework when wiring is run behind the cover. Application: supports standardized layouts in 600 mm TS enclosures. Weight and sustainability: Pack weight 6 kg with PCF 22.9 kg CO2 eq (Cat B). Business impact: helps with sustainability reporting and procurement decisions by highlighting environmental footprint. Application: suitable for mid- to high-volume installs where lifecycle cost matters. Enclosure fit and standards: Designed to fit TS enclosure types with a 600 mm width and VX rear sections. Business impact: minimizes compatibility risk and simplifies ordering for common Rittal configurations. Application: commonly used in VX-based switchgear assemblies requiring compliant protection.
Get a Quick Quote for a Rittal 9684960
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9684960?
Enquire Now
FAQs
Yes. The SV 9684.960 is designed to fit VX rear sections within TS-type enclosures at a 600 mm width, providing finger-contact protection for NH fuse-switch disconnectors. Installation aligns with busbar supports 9686.060/9686.070, and the kit includes panels and mounting parts to ensure a straightforward, tool-efficient setup.
The cover offers IP 2X protection, safeguarding personnel from finger contact with live sections while maintaining access for maintenance. This protection level helps meet safety standards in panel wiring and reduces the risk of accidental contact during servicing of NH fuse-switch disconnectors.
The package includes four side panels (left/right), two side panels (top/bottom), and assembly parts. This complete kit minimizes part sourcing, reduces field assembly time, and ensures consistent fit across installations, enabling quicker transition from delivery to a compliant, safe enclosure configuration.
The product carries CE conformity and aligns with ETIM 9 EC001638 and ECLASS 8.0 27142116 classifications. It also carries IP 2X protection and the EAN/GTIN 4028177936829, supporting regulatory compliance, traceability, and interoperability with common Rittal configurations.
With a PCF of 22.9 kg CO2 eq (Cat B) per pack and a pack weight of 6 kg, the cover provides a transparent environmental footprint for procurement. The steel construction and zinc plating offer durable protection, contributing to longer service life and potentially lower lifecycle costs compared to alternative finger-protection solutions.
