Rittal SV 9686.040 Busbar Holder - UL 94-V0 Fire Safe
Part Number: 9686040
Manufacturer
Rittal
Part number
9686040
Category
Alt Part Number
SV 9686.040
Quick Summary
Rittal SV 9686.040 busbar holder enables secure 4-pole mounting for 50x10 mm busbars in enclosure roof sections. Engineers often confront misalignment and crowded routing when installing multiple sub-conductors, which can delay projects and compromise reliability. Key standards include UL 94-V0 fire protection for the duropastic body, and industry classifications such as ETIM EC001166 and ECLASS 27400607 that support seamless procurement data; CE and IP ratings are not specified in the provided data. By standardizing mounting geometry, material performance, and pack configuration (two units per package), this accessory helps cut installation time, simplify stocking, and improve power-distribution reliability for panel builders and OEMs.
Product Information
Extended Description

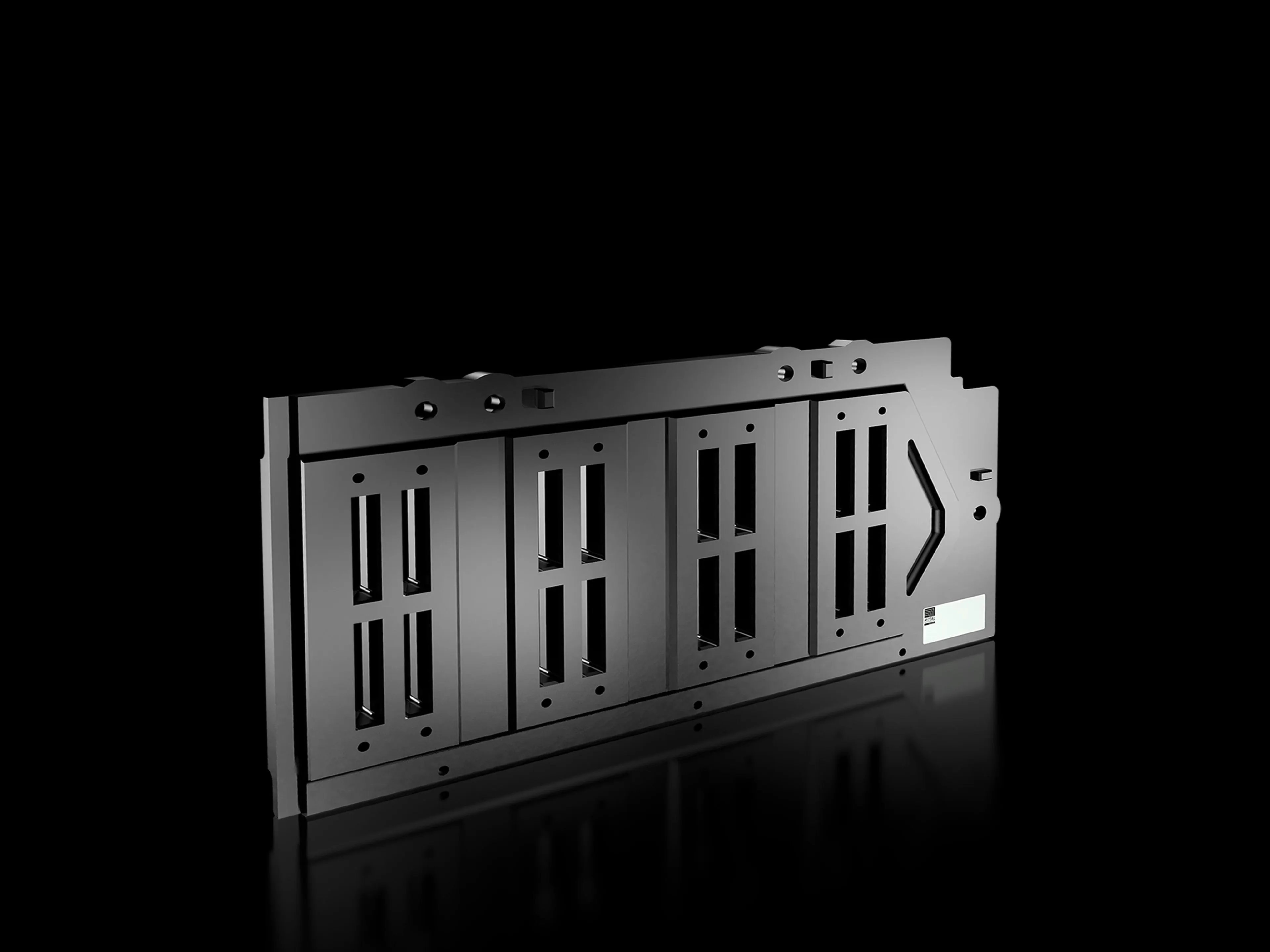

9686040 Rittal: SV busbar holder, 4-pole, 80 mm, for E-Cu 50 x 10 mm, duroplastic, fire protection in accordance with UL 94-V0
Article number
SV 9686.040
Product description
|
Material
Duroplastic | Fire protection corresponding to UL 94
Colour
Similar to RAL 9005
Supply includes
Assembly parts
To fit busbars
50 x 10 mm
Centre-to-centre spacing of busbars
80 mm
Assembly instruction
For the installation of max. 4 busbars (sub-conductors) per phase
Packs of
2 pc(s).
Weight/pack
3.8 kg
Customs tariff number
85469010
EAN
4028177935662
ETIM 9
EC001166
ECLASS 8.0
27400607
Product description
SV busbar holder, 4-pole, 80 mm, for E-Cu 50 x 10 mm, duroplastic, fire protection in accordance with UL 94-V0
Four-pole mounting for E-Cu 50 x 10 mm busbars with an 80 mm centre-to-centre spacing ensures precise alignment and reduces stray conductors, which translates to faster, error-free wiring in roof-section installations. This directly lowers installation time and eliminates rework on crowded panel tops. The duropastic body provides UL 94-V0 fire protection, enhancing safety and regulatory compliance in harsh cabinet environments, while maintaining a compact profile that fits standard Rittal enclosures. The kit is shipped in packs of two with assembly parts included, simplifying logistics and on-site scoping for maintenance and rotations. Its 80 mm spacing supports up to four busbars per phase, enabling scalable power distribution without added parts inventory. The color is similar to RAL 9005 for seamless visual integration with existing hardware, improving both aesthetics and standardization across projects. This solution is particularly advantageous for panel builders and machine OEMs seeking repeatable, reliable roof-mounted busbar distribution.
