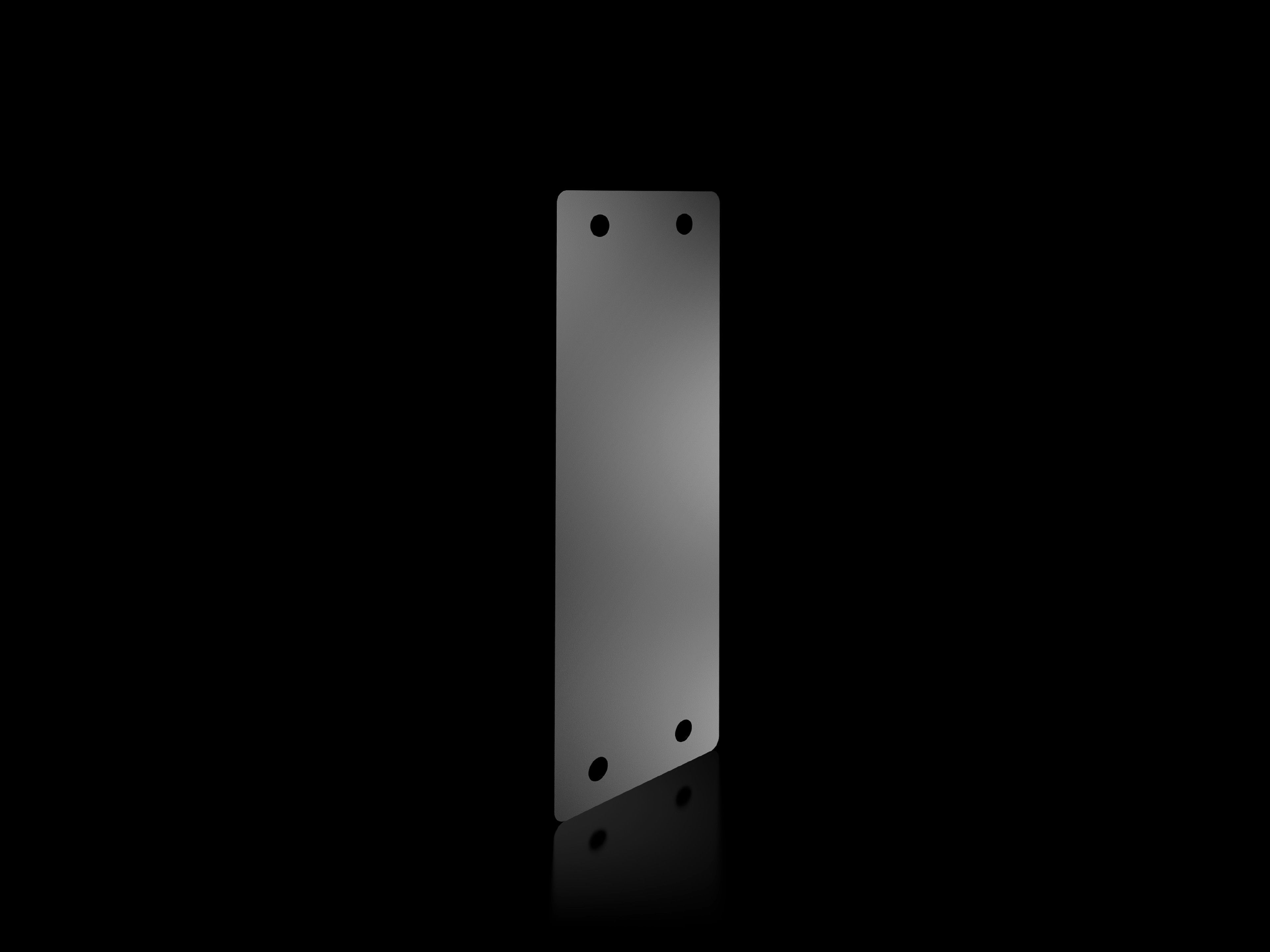

Rittal 9686080 SV End Cover for Busbar Holder – UL94-HB
Part Number: 9686080
Manufacturer
Rittal
Part number
9686080
Category
Alt Part Number
SV 9686.080
Quick Summary
Rittal 9686080 SV end cover provides shock-hazard protected coverage for busbar ends. Maintenance teams often face exposed busbar ends, risking injury and non-compliance. The part uses UL 94-HB fire protection and CE safety expectations, with a polyamide body designed for durable, flame-retardant performance. Its busbar-end protection integrates seamlessly with existing busbar holders, while offering predictable color and compatibility. This accessory supports faster service intervals and consistent enclosure safety, enabling safer maintenance workflows and reduced downtime. By pairing reliable protection with easy installation, it delivers measurable value to electrical cabinets, switchgear assemblies, and modular power distribution systems.
Product Information
Extended Description
9686080 Rittal: SV end cover for busbar holder supports 9686.0 x 0, for shock-hazard-protected covering of the busbar ends on the busbar holder.
Article number
SV 9686.080
Product description
For shock-hazard-protected covering of the busbar ends on the busbar holder.
Material
Polyamide | Fire protection corresponding to ULÂ 94-HB
Colour
Similar to RALÂ 9005
Supply includes
Assembly parts
Packs of
3 pc(s).
Weight/pack
0.09 kg
Customs tariff number
73269098
EAN
4028177936935
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV end cover for busbar holder supports 9686.0 x 0, for shock-hazard-protected covering of the busbar ends on the busbar holder.
Feature: Shock-hazard-protected design safeguards personnel during maintenance. Business Impact: Reduces risk of injury and supports regulatory compliance for live-line work. Application: Ideal for busbar ends on Rittal busbar holder systems, enhancing safety in industrial enclosures. Feature: UL 94-HB fire-rated polyamide material ensures flame retardance. Business Impact: Improves enclosure safety margins and mitigates fire-related risk in electrical cabinets. Application: Suitable for exposed busbar terminations in harsh environments where compliance matters. Feature: Packaged in sets of three with assembly parts included. Business Impact: Simplifies stocking, lowers per-unit costs, and accelerates installation. Application: Procurement-ready solution for maintenance teams and plant engineers. Feature: Assembly parts supplied with the cover. Business Impact: Speeds up retrofit projects by reducing the need to source additional hardware. Application: Fast, reliable retrofits on existing busbar holders. Feature: Colour close to RAL 9005 for visual consistency. Business Impact: Maintains professional aesthetics and clear identification within control panels. Application: Supports standardized cabinet appearance across equipment lines. Feature: Compatible with busbar holder supports 9686.0 x 0.0 dimensions. Business Impact: Ensures smooth integration with current Rittal systems and minimizes fit issues. Application: Field installations and replacement scenarios in modular switchgear.
Get a Quick Quote for a Rittal 9686080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686080?
Enquire Now
FAQs
Begin by verifying compatibility with the busbar holder model and removing any protective packaging. Align the SV 9686.080 end cover with the holder ends, insert the included assembly parts, and secure using the provided fasteners. The design allows quick installation without special tools, reducing downtime and ensuring a secure, shock-hazard protected termination.
Key considerations include the UL 94-HB fire rating of the polyamide material, which provides flame retardance, and the enablement of shock-hazard-protected coverage for busbar ends. Compatibility with 9686.0 x 0 busbar holder supports ensures proper fit, while the 3-pack packaging supports efficient stocking and consistent maintenance routines.
Yes, it is designed to fit Rittal busbar holder systems that use the 9686.0 x 0 configuration. The similar-to-RAL 9005 color helps maintain visual consistency in control panels. The included assembly parts simplify retrofits, making it suitable for routine maintenance in modular power distribution enclosures across industrial environments.
The SV end cover employs UL 94-HB fire protection for the polyamide material, supporting flame retardant safety requirements. While CE conformity is typical for industrial electrical components, verify local regulatory alignment for your installation. The product also aligns with established ETIM and ECLASS classifications for procurement and asset data management.
The end cover reduces exposure risk during maintenance, lowering potential injury-related downtime. Packaged in threes, it lowers replenishment costs and simplifies inventory. Its durable polyamide construction plus flame retardant rating support long service life in harsh environments, while assembly parts speed up replacements and retrofit projects.
