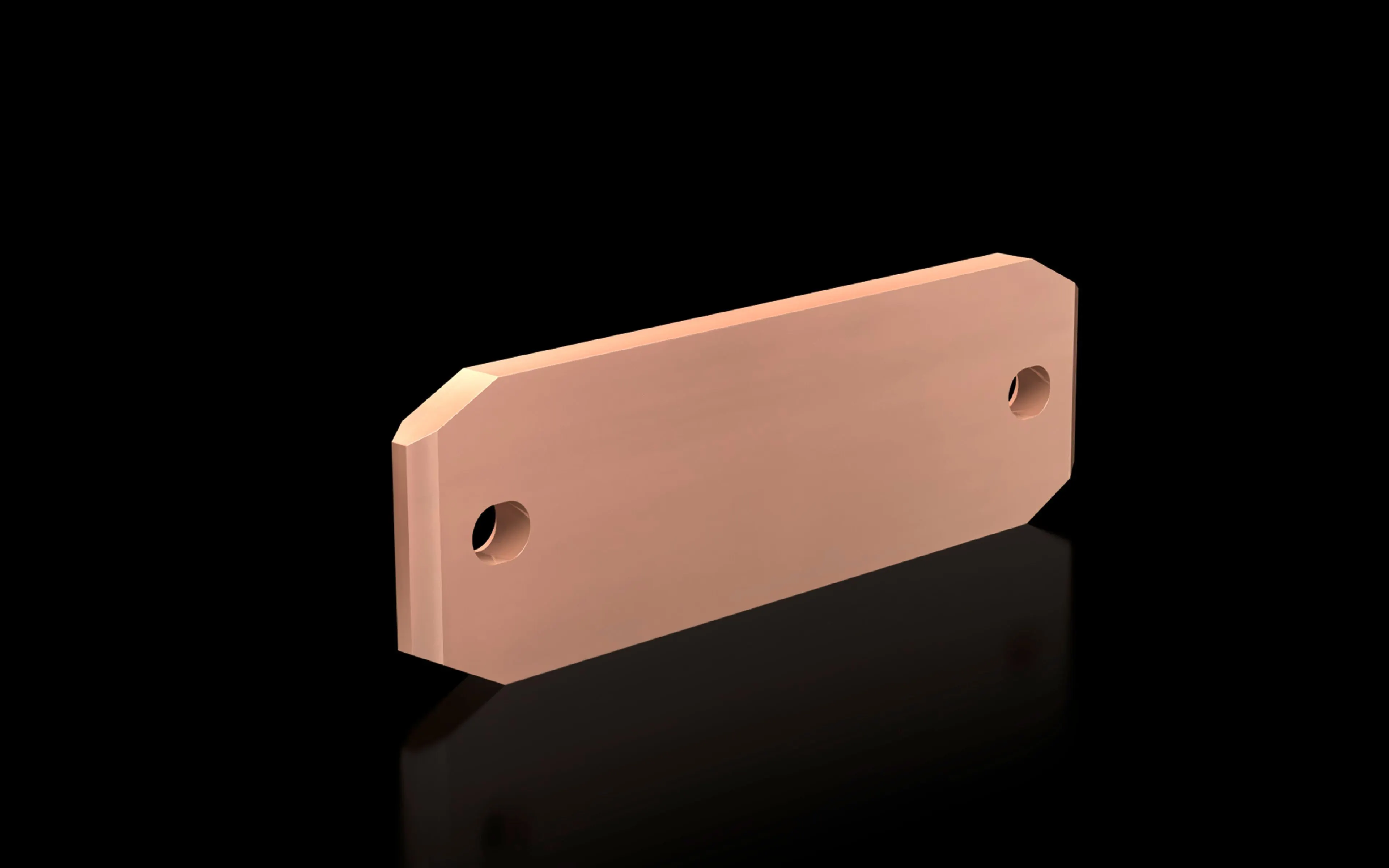

Rittal SV 9686.200 Longitudinal Connector - 30x10 mm
Part Number: 9686200
Manufacturer
Rittal
Part number
9686200
Category
Alt Part Number
SV 9686.200
Quick Summary
Rittal SV 9686.200 longitudinal connector links main busbars between enclosures, delivering robust power transfer for distributed cabinet systems. In many installations, space constraints and copper loss erode efficiency; this connector provides a compact, low-resistance path. It aligns with ETIM EC001900 and ECLASS 27400613 standards, aiding procurement accuracy and cross-team compatibility. Beyond the numbers, the design simplifies assembly and reduces enclosure-to-enclosure wiring time, supporting reliable power distribution in control cabinets. This combination of material quality, precise fit, and standardized labeling gives engineers a clear path to dependable, scalable busbar connections across multiple enclosures.
Product Information
Extended Description
9686200 Rittal: SV longitudinal connector, height 60 mm, for E-Cu 2 x / 4 x 30 x 10 mm
Article number
SV 9686.200
Design
for main busbar 30 x 10 mm
Product description
For connecting the main busbar system from enclosure to enclosure.
Material
E-Cu
Supply includes
Assembly parts
Length
195 mm
Number of bars per conductor
2 | 4
Cross-section
60 mm x 10 mm
Packs of
1 pc(s).
Weight/pack
1.193 kg
Copper weight (kg per piece)
1.026
Customs tariff number
74198090
EAN
4028177936102
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV longitudinal connector, height 60 mm, for E-Cu 2 x / 4 x 30 x 10 mm
Feature: E-Cu conductor material delivers low resistance under high current, translating to measurable efficiency gains and reduced thermal stress across the busbar system. Business impact: lowers energy losses and extends component life, while meeting safety margins for continuous operation. Application: ideal for main busbar connections between Rittal enclosures in power distribution cabinets. Feature: Cross-section 60 mm x 10 mm supports a versatile current path with 2 or 4 bars per conductor, enabling flexible configurations for varying load profiles. Business impact: increases current-carrying capacity without enlarging footprint, reducing need for additional splices. Application: suited for compact installation in medium to large switchgear deployments. Feature: Length 195 mm and height 60 mm deliver a balanced, space-efficient interface that fits standard enclosure spacings. Business impact: simplifies thermal management and simplifies retrofit planning. Application: widely used in retrofit and new-build cabinet projects. Feature: Weight per pack 1.193 kg and copper weight 1.026 kg provide predictable handling and mechanical stability during installation. Business impact: minimizes handling risk and supports accurate BOM costing. Application: ideal for procurement in projects with strict weight and space budgets. Feature: Supply includes assembly parts and one pack per item, reducing sourcing steps and ensuring quick field installation. Business impact: lowers project lead times and improves on-site productivity. Application: supports fast deployment in busy panel rooms. Feature: Documentation and standardization with ETIM 9 EC001900 and ECLASS 8.0 27400613 support seamless cataloging. Business impact: reduces miscataloging, improves compatibility checks, and speeds purchasing workflows. Application: essential for systems engineering and procurement teams managing large BOMs.
Get a Quick Quote for a Rittal 9686200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686200?
Enquire Now
FAQs
To install, confirm enclosure spacing and busbar dimensions, align the connector with the 30 x 10 mm main busbars, and attach using the supplied assembly parts. Ensure the E-Cu cross-section is 60 x 10 mm and the length is 195 mm. Tighten hardware to secure contact and verify continuity across enclosures after mounting.
Key specs include article number SV 9686.200, design for main busbar 30 x 10 mm, material E-Cu, length 195 mm, cross-section 60 x 10 mm, copper weight 1.026 kg per piece, packs of 1, weight per pack 1.193 kg, and EAN 4028177936102. It ships with assembly parts for straightforward installation.
The connector is designed for E-Cu main busbars sized 30 x 10 mm and a 60 mm high interface. While optimized for Rittal enclosures, its standard 60 x 10 mm cross-section and 195 mm length can be compatible with other brands that use the same busbar dimensions, pending a compatibility check with the specific enclosure design.
The product is cataloged under ETIM 9 EC001900 and ECLASS 8.0 27400613, which support accurate specification, interoperability, and procurement workflows. These standards help ensure consistent data across systems. The item also carries the EAN 4028177936102 for traceability in supply chains.
Using SV 9686.200 delivers reliable current transfer through pure copper conductors, reduces installation time with included assembly parts, and enables a compact, standardized busbar connection between enclosures. This translates to lower maintenance costs, predictable BOMs, and faster commissioning in medium to large cabinet installations.
