Rittal 9686210 SV Longitudinal Connector - 30x10 mm Busbar
Part Number: 9686210
Manufacturer
Rittal
Part number
9686210
Category
Alt Part Number
SV 9686.210
Quick Summary
Rittal 9686210 SV longitudinal connector is designed to link main busbars between enclosures for seamless power distribution. Installers often face uneven current paths, alignment challenges, and time-consuming wiring when bridging panels, which can delay projects and increase costs. While explicit CE, SIL, or IP ratings aren’t listed for this part, it aligns with ETIM 9 EC001900 and ECLASS 8.0 27400613 classifications to support procurement and interoperability. Designed for main busbar use with E-Cu components, it enables reliable, efficient cross-enclosure connections, helping teams reduce downtime and scale power management across cabinets.
Product Information
Extended Description

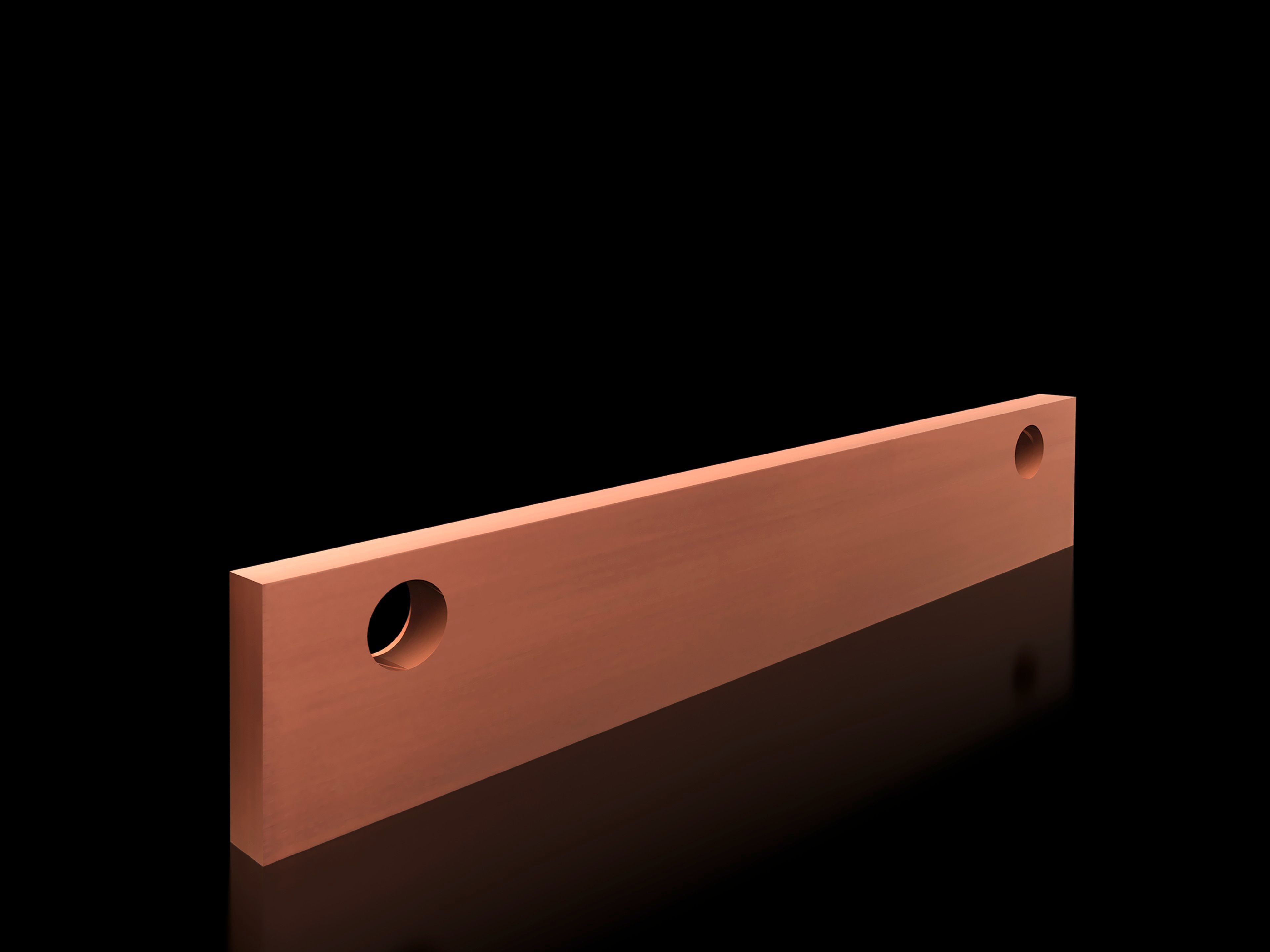

9686210 Rittal: SV longitudinal connector, height 35 mm, for E-Cu 1 x x 30 x 10 mm
Article number
SV 9686.210
Design
for main busbar 30 x 10 mm
Product description
For connecting the main busbar system from enclosure to enclosure.
Material
E-Cu
Supply includes
Assembly parts
Length
195 mm
Number of bars per conductor
1
Cross-section
35 mm x 10 mm
Packs of
1 pc(s).
Weight/pack
0.758 kg
Copper weight (kg per piece)
0.59
Customs tariff number
74198090
EAN
4028177936232
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV longitudinal connector, height 35 mm, for E-Cu 1 x x 30 x 10 mm
Feature → Business Impact → Application: The SV 9686.210 uses high-conductivity E-Cu material with a cross-section of 35 mm x 10 mm and a length of 195 mm. This combination minimizes resistance and voltage drop, delivering consistent current sharing across adjacent enclosures and improving overall system efficiency in industrial power distribution. Application: ideal for extending a main busbar network between racks in control cabinets, ensuring reliable power delivery with minimal contact resistance. Feature → Business Impact → Application: Designed for a main busbar 30 x 10 mm, the 35 mm x 10 mm profile and 35 mm height fit compact enclosures, enabling tight pack layouts and easier cable routing in panel boards. Application: supports dense enclosure configurations without compromising connectivity or serviceability. Feature → Business Impact → Application: Supplied with assembly parts, reducing procurement steps and on-site assembly time, which translates to faster commissioning and lower labor costs. Application: accelerates installation of new lines and retrofit projects. Feature → Business Impact → Application: Copper weight of 0.59 kg per piece and total pack weight of 0.758 kg provide robust mechanical and electrical performance, ensuring durable, long-lasting connections under vibration and thermal cycling. Application: suitable for demanding environments in manufacturing and process industries. Feature → Business Impact → Application: ETIM EC001900 and ECLASS 27400613 classifications enhance cross-platform compatibility and procurement workflows, easing parts matching with ERP systems and catalogs. Application: supports standardized sourcing and reduces misclassification risk in large projects.
