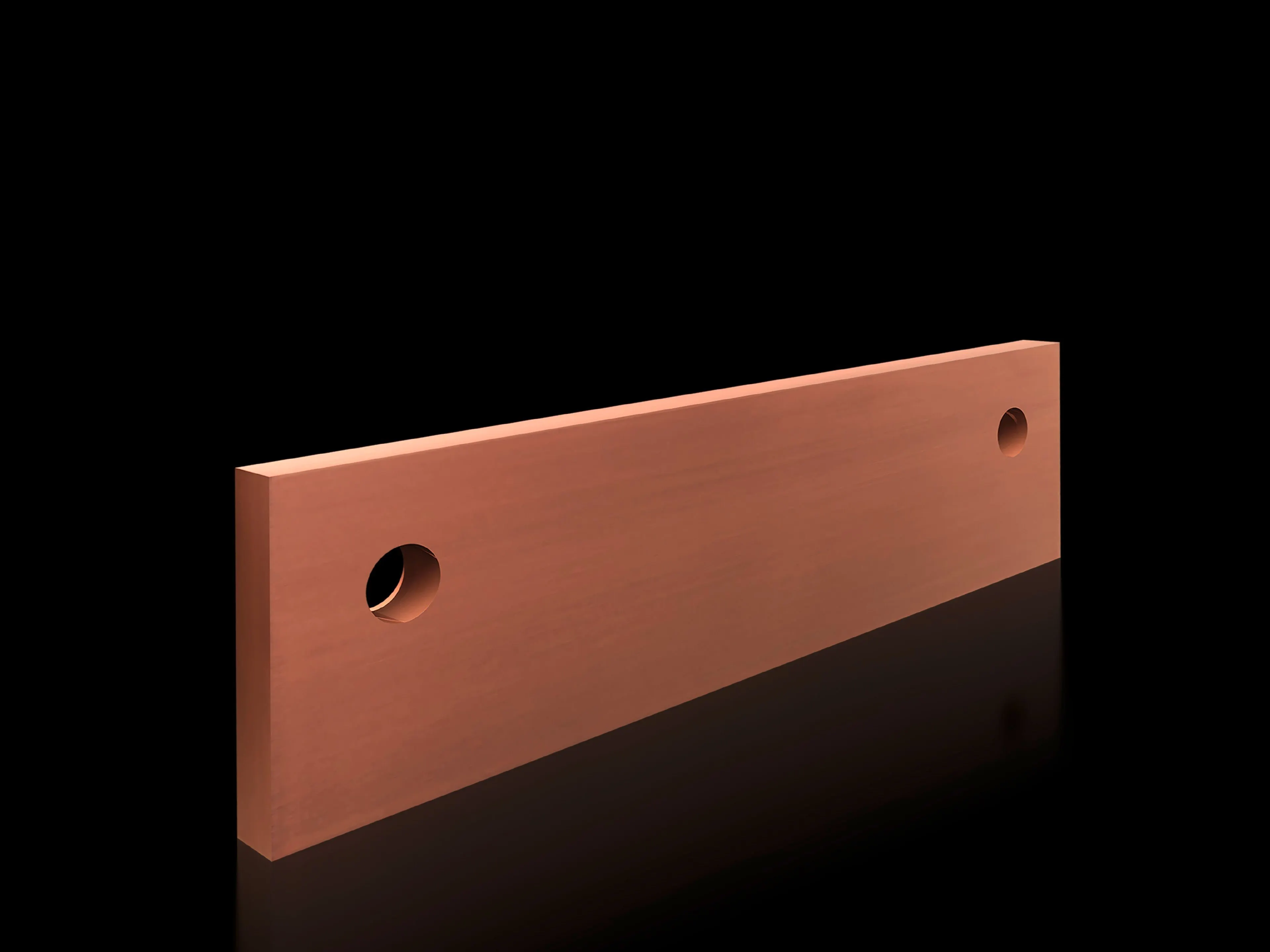

Rittal SV 9686.260 Longitudinal Connector - EC001900
Part Number: 9686260
Manufacturer
Rittal
Part number
9686260
Category
Alt Part Number
SV 9686.260
Quick Summary
Rittal SV 9686.260 longitudinal connector connects main busbars between enclosures for seamless power distribution. In multi-cabinet systems, inconsistent busbar connections can lead to voltage drop, hotspots, and increased maintenance. It conforms to ETIM EC001900 and ECLASS 27400613 classifications, and the product carries EAN 4028177936225 for accurate procurement. Manufactured from electrolytically refined copper (E-Cu), it delivers low resistance paths and robust mechanical stability. Designed for easy installation in panel builds, it supports reliable, compliant power distribution with minimal spare parts. This makes it a practical choice for OEMs and automation engineers seeking predictable performance and fast deployment.
Product Information
Extended Description
9686260 Rittal: SV longitudinal connector, height 55 mm, for E-Cu 1 x x 50 x 10 mm
Article number
SV 9686.260
Design
for main busbar 50 x 10 mm
Product description
For connecting the main busbar system from enclosure to enclosure.
Material
E-Cu
Supply includes
Assembly parts
Length
195 mm
Number of bars per conductor
1
Cross-section
55 mm x 10 mm
Packs of
1 pc(s).
Weight/pack
1.107 kg
Copper weight (kg per piece)
0.939
Customs tariff number
74198090
EAN
4028177936225
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV longitudinal connector, height 55 mm, for E-Cu 1 x x 50 x 10 mm
Feature → Business Impact → Application: Made from E-Cu (copper) delivers low resistance conduction, reducing voltage drop across long busbar runs and enhancing overall system efficiency in control cabinets. This enables higher uptime and lower energy waste in manufacturing lines. Application: Use in enclosure-to-enclosure connections within switchgear, data centers, and automation racks where reliable current paths are essential. Feature → Business Impact → Application: 195 mm length with 55 x 10 mm cross-section accommodates standard 50 x 10 mm main busbars, ensuring compatibility with common Rittal systems and reducing custom fabrication time. Application: Quick retrofit or expansion projects, minimizing downtime during cabinet upgrades. Feature → Business Impact → Application: Assembly parts included streamline installation, decreasing field labor hours and improving installation consistency. Application: Ideal for panel builders pursuing fast deployment and repeatable, compliant power distribution. Feature → Business Impact → Application: ETIM EC001900 and ECLASS 27400613 alignment supports precise procurement and BOM management. Application: Simplifies ERP integration and supplier qualification.
