Rittal SV 9686.300 Busbar Support - UL94-HB Fire Protection
Part Number: 9686300
Quick Summary
Rittal SV 9686.300 busbar support enables 1-pole neutral or PEN conductor assembly inside enclosures. In tight panels, clean wiring and reliable connections are essential, and this accessory helps avoid misrouting and loose sub-conductors. Notable standards include UL94-HB fire protection, and established cataloging classifications such as ETIM EC001166 and ECLASS 27400607, which streamline procurement and data management. The part is designed for mounting onto enclosure sections and works with 50x10 mm busbars, up to four sub-conductors per phase, delivering scalable distribution. By standardizing mounting practices, it reduces field rework, improves safety, and supports efficient panel builds. This makes it a practical choice for OEMs and integrators focusing on compliance and reliability.
Product Information
Extended Description

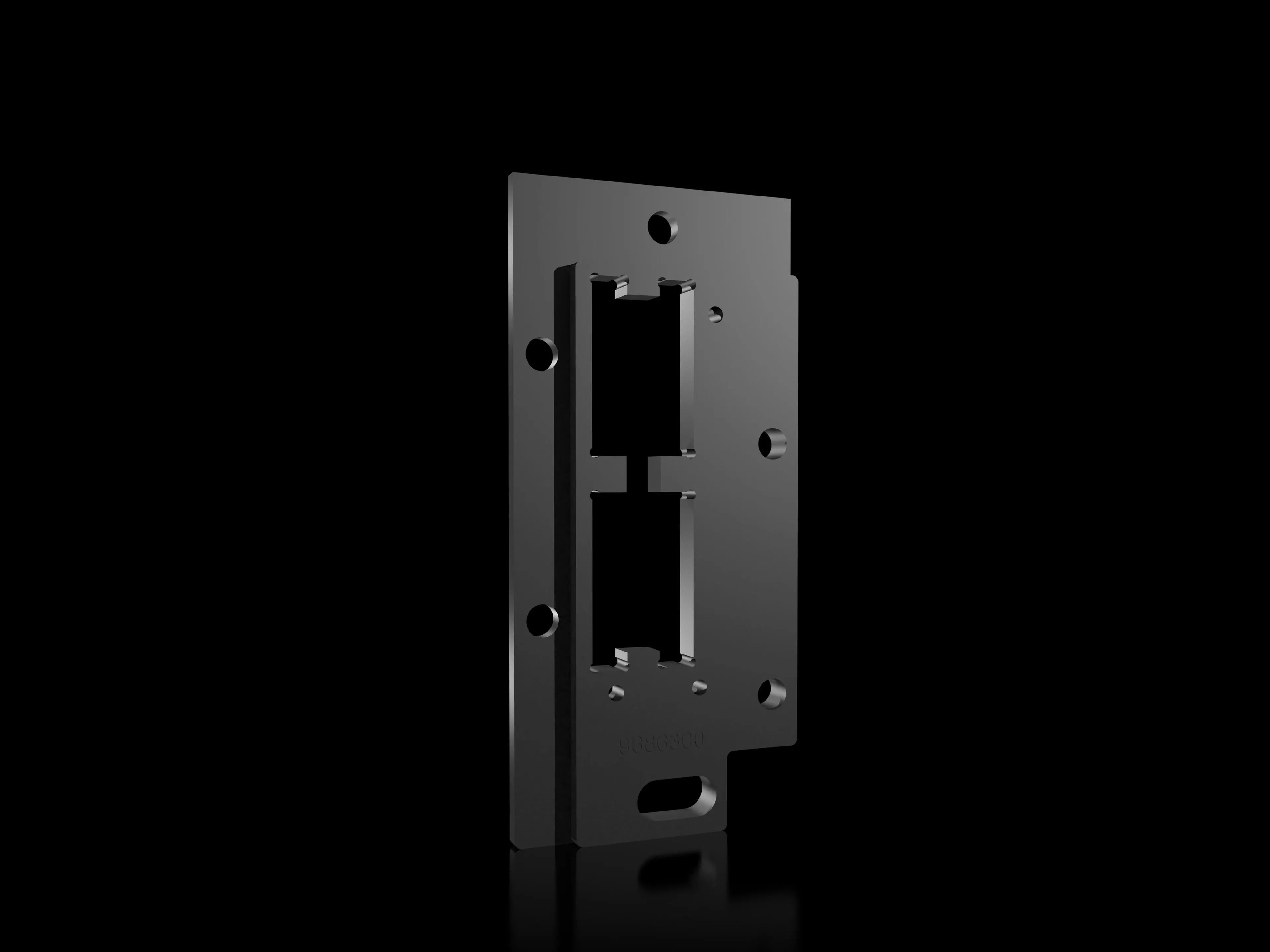

9686300 Rittal: SV Busbar support, N-/PEN conductor, 1-pole, for busbar WH: 50x10 mm, (max. 4x50x10 mm)
Article number
SV 9686.300
Product description
For the assembly of 1-pole neutral or PEN conductors. The busbar holder is mounted onto the enclosure section.
Material
Polyamide | Fire protection corresponding to UL 94-HB
Colour
Similar to RAL 9005
Supply includes
Assembly parts
Assembly instruction
For the installation of max. 4 busbars (sub-conductors) per phase
Packs of
2 pc(s).
Weight/pack
0.42 kg
Customs tariff number
85469010
EAN
4028177935983
ETIM 9
EC001166
ECLASS 8.0
27400607
Product description
SV Busbar support, N-/PEN conductor, 1-pole, for busbar WH: 50x10 mm, (max. 4x50x10 mm)
Feature → Business Impact → Application: The SV 9686.300 provides 1-pole N-/PEN conductor mounting for WH 50x10 mm busbars, enabling neat, reliable wiring in compact enclosure sections. Benefit: reduces installation time and risk of misconnection, improving overall panel performance in control cabinets and distribution boards. Application: ideal for OEMs upgrading legacy enclosures or expanding distributed circuits without redesigning mounts. Feature → Business Impact → Application: Crafted from polyamide with fire protection rated UL94-HB, this material choice delivers robust fire safety compliance while maintaining electrical insulation in crowded enclosures. Benefit: lowers risk of ignition hazards and supports audits and safety certifications. Application: suitable for harsh environments in motor control centers and switchgear, where color and compatibility with enclosure aesthetics matter. Feature → Business Impact → Application: Supplied as two pieces per pack, weighing 0.42 kg per pack, enabling efficient stocking and faster replenishment. Benefit: reduces logistics costs and simplifies kit-based installation in large projects. Application: convenient for panel builders handling multiple enclosures or widespread installations. Feature → Business Impact → Application: Assembly instructions specify up to four sub-conductors per phase, ensuring predictable wiring topology. Benefit: mitigates over-concentration and simplifies documentation for maintenance crews. Application: essential for standardized rebuilds and scalable distribution networks. Feature → Business Impact → Application: Color is similar to RAL 9005, aiding visual integration with commonly used enclosure finishes. Benefit: improves aesthetics and reduces need for additional cosmetic adapters. Application: favorable for OEMs aligning with brand color schemes across multiple SKUs. Feature → Business Impact → Application: Mounts directly onto the enclosure section, compatible with 50x10 mm busbars without extra adapters. Benefit: speeds installation and minimizes part variety. Application: ideal for retrofit projects and new builds where space is constrained and quick-fit solutions are valued.
