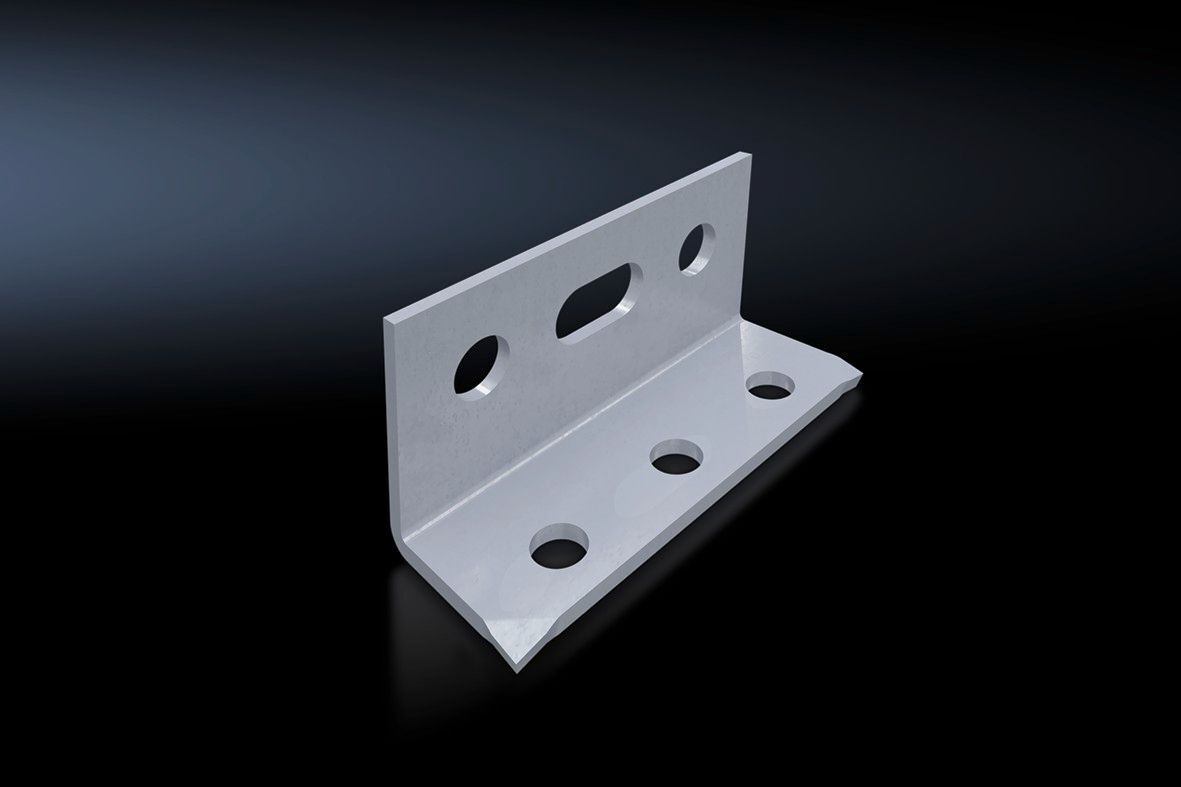

Rittal SV 9686.350 PE/PEN Angle Bracket - EC002270
Part Number: 9686350
Quick Summary
PE/PEN angle bracket securely attaches PE/PEN busbars to enclosure sections, ensuring reliable grounding and tidy internal wiring. Installers often face misalignment and inconsistent grounding when retrofitting or expanding cabinets. It adheres to ETIM 9 EC002270 and ECLASS 8.0 27409221 classifications, supporting global sourcing and system compatibility. With its 3.0 mm sheet steel construction and included assembly parts, the bracket speeds mounting and reduces field errors, delivering cost savings for panel builders. Designed for busbar sizes 30x5, 30x10, 40x10 and 80x10 mm, it integrates seamlessly with Rittal enclosures. This combination of robust design and precise fit helps streamline audits and regulatory compliance across global facilities.
Product Information
Extended Description
9686350 Rittal: SV PE/PEN angle bracket, for busbar WH: 30x5 mm,, 30/40/80x10 mm
Article number
SV 9686.350
Product description
For attaching the PE/PEN busbar to the enclosure section.
Material
Sheet steel, 3.0 mm
Supply includes
Assembly parts
Packs of
2 pc(s).
Weight/pack
0.536 kg
Customs tariff number
73182900
EAN
4028177935976
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV PE/PEN angle bracket, for busbar WH: 30x5 mm,, 30/40/80x10 mm
The SV 9686.350 PE/PEN angle bracket uses durable sheet steel, 3.0 mm thick, delivering rigid support for PE/PEN busbars in demanding environments. This translates to fewer deformations and longer service life, directly reducing maintenance cycles in panel builds. The product is designed to accept multiple common busbar sizes (30x5 mm, 30x10 mm, 40x10 mm, 80x10 mm), enabling a single mounting solution across varied enclosure configurations and saving time during design reviews. Included assembly parts and a pack of two units streamline on-site installation, minimizing tool changes and component searches while improving first-pass assembly accuracy. The bracket aligns with Industry standards (ETIM 9 EC002270, ECLASS 8.0 27409221), ensuring consistent data exchange and procurement across global supply chains. Packaging and dimensions support efficient logistics, with two pieces per pack and a total weight of 0.536 kg per pack, making inventory control straightforward. In short, this accessory reduces installation risk, accelerates commissioning, and supports scalable growth for panel builders and systems integrators.
