Rittal 9686400 Arcing Fault Kit for VX Enclosures - Class A
Part Number: 9686400
Manufacturer
Rittal
Part number
9686400
Category
Alt Part Number
SV 9686.400
Quick Summary
Rittal 9686400 arcing fault kit is designed to achieve arc flash class A protection for single-door VX enclosures. Maintenance teams often struggle to meet IEC/TR 61 641 requirements while keeping downtime to a minimum. This solution aligns with CE marking expectations and IP-rated enclosure environments, while the steel-plastic build enables durable safety upgrades across harsh industrial settings. By delivering plug-and-play components, it simplifies installation and speeds up commissioning, delivering measurable safety and uptime benefits for panel builders and maintenance crews alike.
Product Information
Extended Description
9686400 Rittal: SV arcing fault kit, class A, for 1-door VX Enclosure
Article number
SV 9686.400
Design
For single-door VX
Product description
To achieve arc flash class A (human safety) to IEC/TR 61 641. Suitable for two enclosure panels.
Material
Steel | Plastic
Supply includes

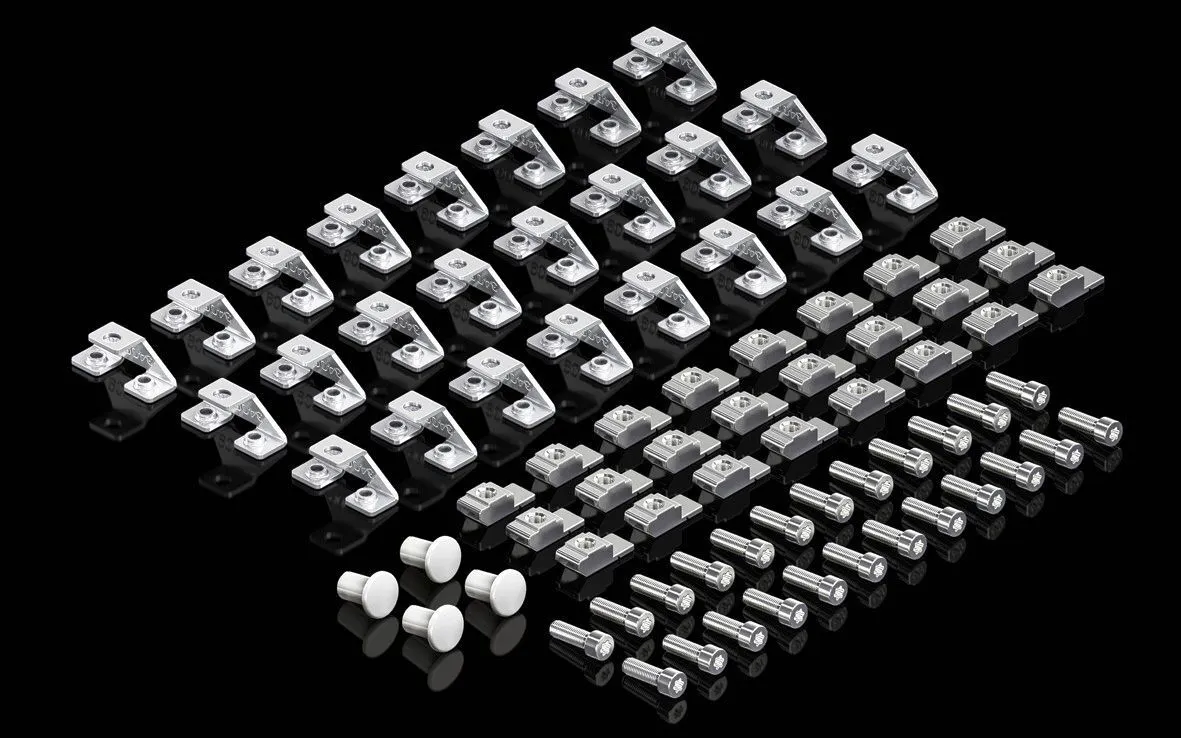

4 plugs for roof plate | 4 warning stickers | Certificate | Assembly parts | 24 enclosure panel holders
Packs of
1 pc(s).
Customs tariff number
83024900
EAN
4028177962507
ETIM 9
EC002498
ECLASS 8.0
27142423
Product description
SV arcing fault kit, class A, for 1-door VX Enclosure
Feature: Arc flash class A compliance delivered by SV arcing fault kit. Business Impact: Elevates personnel safety and reduces compliance risk, translating to lower incident exposure and insurance considerations. Application: Ideal for upgrading 1-door VX enclosures in industrial control panels. Feature: Steel | Plastic construction. Business Impact: Combines durability with weight efficiency, tolerating vibrational environments and reducing replacement costs. Application: Suitable for harsh factory floors and outdoor-rated VX installations. Feature: Comprehensive supply includes roof plate plugs, warning stickers, certificates, assembly parts, and 24 enclosure panel holders. Business Impact: Streamlines procurement and accelerates installation, cutting project lead times and labor costs. Application: Ready-to-assemble kit for rapid VX enclosure upgrades. Feature: Global compatibility metadata (Customs tariff 83024900, EAN 4028177962507, ETIM EC002498, ECLASS 27142423). Business Impact: Improves logistics, cataloging, and data accuracy in ERP systems. Application: Facilitates compliant import and data-driven procurement. Feature: Designed for compatibility with VX enclosure configurations (1-door, supports two-panel assemblies). Business Impact: Maximizes reuse of existing VX assets, reducing total cost of ownership. Application: Retrofit projects and new builds alike.
Get a Quick Quote for a Rittal 9686400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686400?
Enquire Now
FAQs
Begin by verifying enclosure access and turning off power. Insert the SV 9686.400 arcing fault components per the VX design guidelines, install roof plate plugs, apply warning stickers, and mount the 24 enclosure panel holders. Ensure all assembly parts are attached and certificate documentation is completed. This streamlined process reduces commissioning time and increases installer confidence.
The primary function is to achieve arc flash class A protection for a single-door VX enclosure, enhancing human safety and reducing arc fault risk. The kit is designed to support two enclosure panels and includes all necessary components for a compliant, ready-to-operate installation.
Yes, the SV 9686.400 arcing fault kit is designed for two-panel VX configurations in addition to its primary 1-door setup. This compatibility supports scalable safety upgrades across multiple panels without replacing the entire enclosure system, simplifying retrofit projects.
The kit targets arc flash class A protection per IEC/TR 61 641 and is positioned for CE marking where applicable. It also includes documentation and parts aligned with ETIM EC002498 and ECLASS 8.0 identifiers to support data integration and component-level certification tracking in regulated environments.
Implementing the kit reduces safety risk, minimizes unplanned downtime, and speeds up installation, lowering labor and project lead times. By standardizing components (roof plugs, warning stickers, holders) and aligning with VX enclosure designs, maintenance teams see improved uptime and predictable maintenance costs over the lifecycle of the enclosure.
