Rittal 9686495 SV Angle Bracket - ETIM EC002270
Part Number: 9686495
Manufacturer
Rittal
Part number
9686495
Category
Alt Part Number
SV 9686.495
Quick Summary
Rittal SV angle bracket is a precision mounting accessory that positions and secures the holder set (stabiliser) to enclosure sections in electrical cabinets. Misaligned stabilisers can cause vibration, uneven panel gaps, and maintenance downtime during panel assembly. This part is classified under ETIM EC002270 and ECLASS 27409221, enabling reliable data and procurement workflows. Designed for connector kits and enclosure assemblies, it simplifies installation and reduces variation across projects, delivering faster commissioning and lower inventory costs. This product ships as a four-pack of compatible parts, making it easy to standardize across multiple enclosures. The arrangement also benefits from corrosion-resistant zinc-plated sheet steel and straightforward assembly with included components, enhancing overall reliability.
Product Information
Extended Description

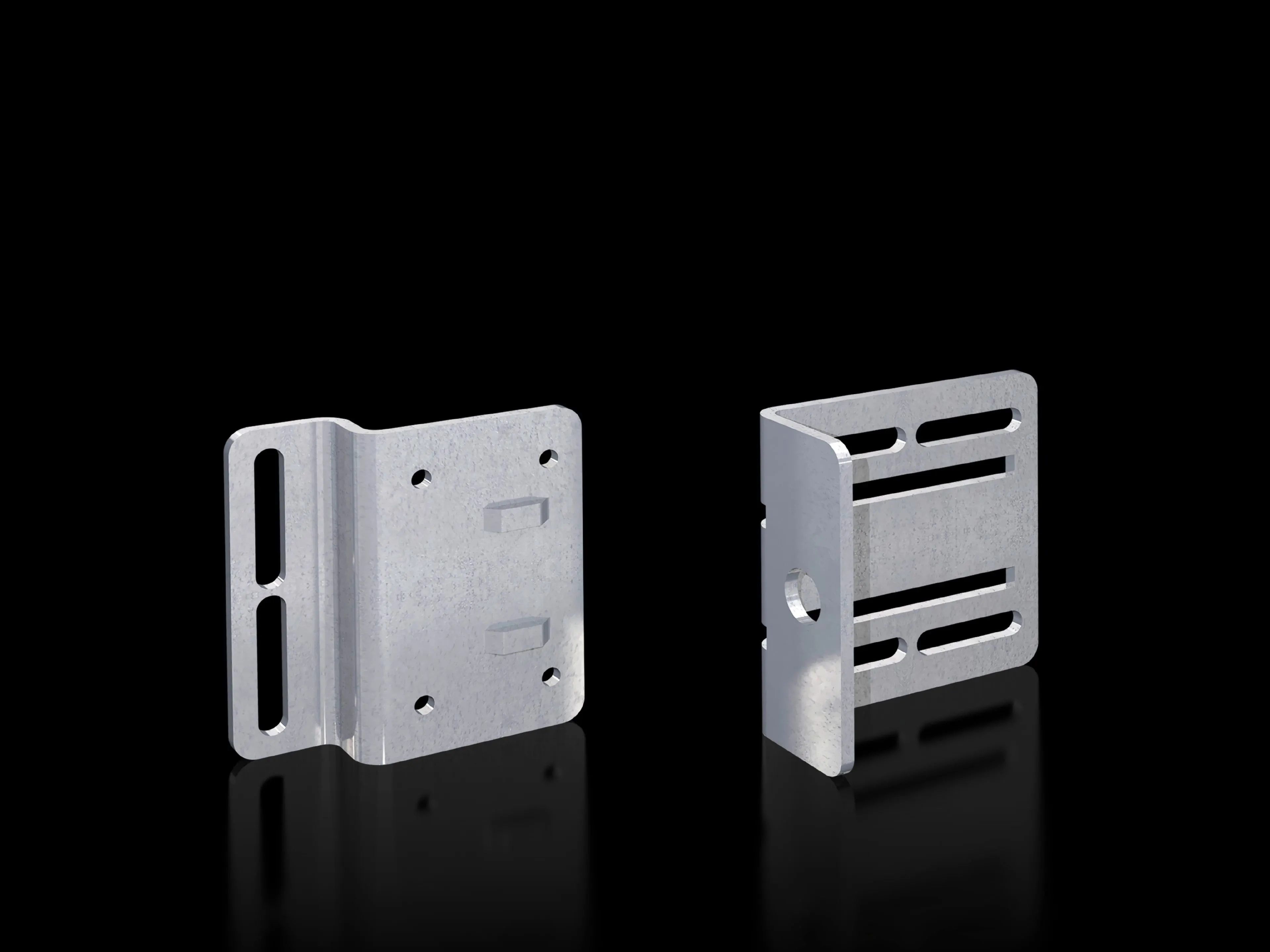

9686495 Rittal: SV angle bracket for connector kit, for positioning and attaching the holder set (stabiliser) to the enclosure section.
Article number
SV 9686.495
Product description
For positioning and securing the holder set (stabiliser) to the enclosure section.
Material
Sheet steel, zinc-plated
Supply includes
Assembly parts
Note
An angle bracket consists of one bracket to be fastened to the enclosure section or the compartment side panel, and one bracket for mounting plastic stabilisers
Packs of
4 pc(s).
Weight/pack
1.1 kg
Customs tariff number
73182900
EAN
4028177943902
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV angle bracket for connector kit, for positioning and attaching the holder set (stabiliser) to the enclosure section.
