Rittal SV 9686.522 Busbar E-Cu 30x5 - DIN EN 13 601
Part Number: 9686522
Quick Summary
Rittal SV 9686.522 busbar is a copper E‑Cu conductor for panel and enclosure wiring, designed to maximize conductivity in compact control cabinets. End users often struggle with misaligned mounting holes and inconsistent lengths that slow assembly and increase reliability risk. The design aligns with DIN EN 13 601 and is referenced in ETIM EC000329 and ECLASS 27400605 to support precise procurement and compliance workflows. With a 30x5 mm cross-section and a 1100 mm length, it simplifies stocking and installation, delivering predictable performance and enabling scalable enclosure solutions for growing projects.
Product Information
Extended Description

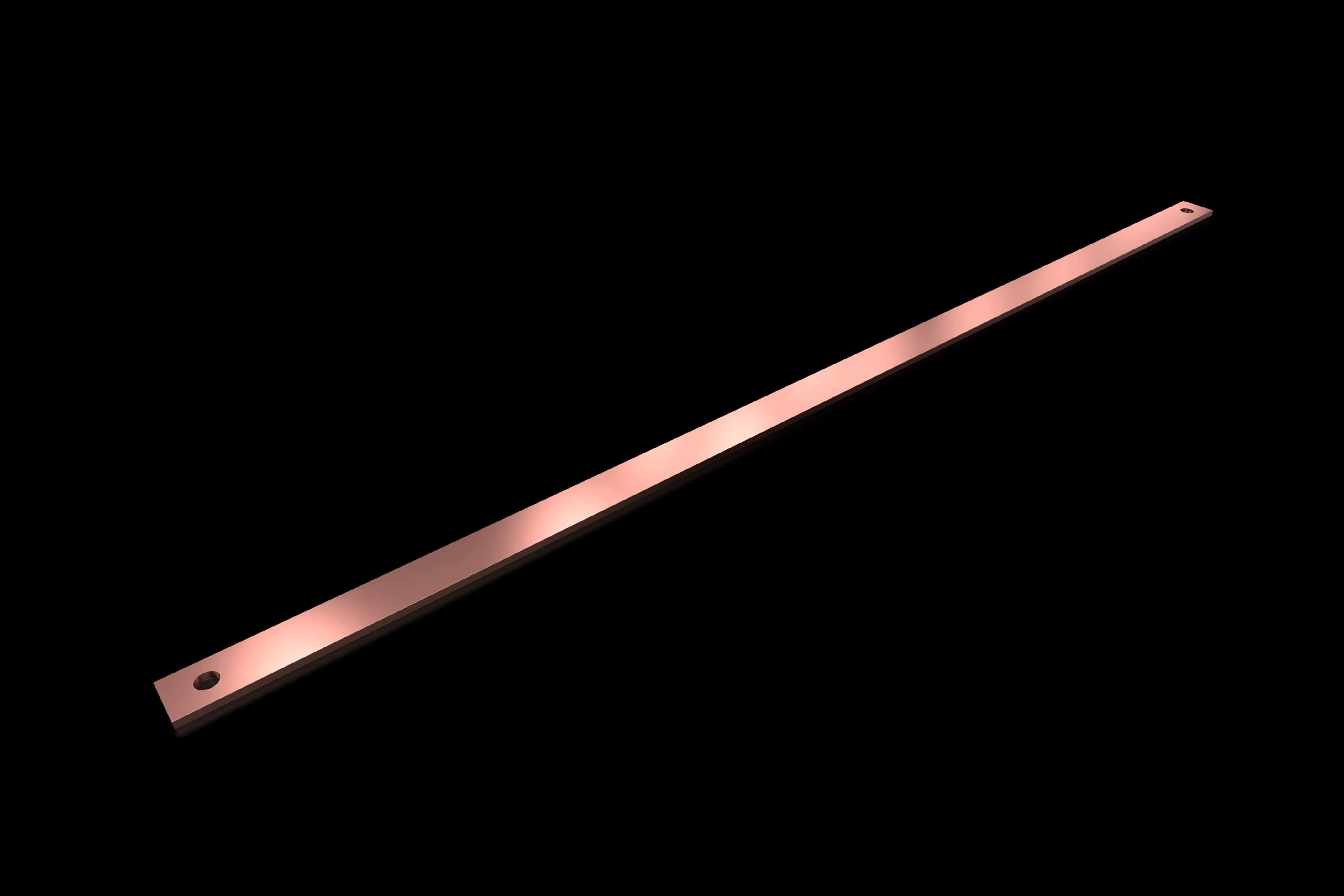

9686522 Rittal: SV PE/PEN busbar E-Cu, WH: 30x5 mm, L: 1100 mm
Article number
SV 9686.522
Product description
With integral holes.
Material
E-Cu
Ø hole
11.5 mm
Dimensions
Length: 1,100 mm
To fit
Width: = 1,200 mm
Cross-section
30 mm x 5 mm
Packs of
2 pc(s).
Weight/pack
3.02 kg
Copper weight (kg per piece)
1.47
Customs tariff number
74071000
EAN
4028177934870
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
SV PE/PEN busbar E-Cu, WH: 30x5 mm, L: 1100 mm
Feature: E-Cu copper with a 30 mm x 5 mm cross-section and a 1,100 mm length. Business impact: provides low electrical resistance, high current carrying capacity, and long-term corrosion resistance, reducing voltage drop in dense distribution networks. Application: ideal for power distribution in control cabinets and compact enclosures. Feature: Integral holes and Ø11.5 mm punchings. Business impact: eases mounting and alignment, cuts drilling time, and improves mechanical reliability in tight spaces. Application: DIN rail and panel mounting where precise hole pattern is required. Feature: Packs of 2 with a weight of 3.02 kg per pack and copper weight of 1.47 kg per piece. Business impact: lowers procurement overhead, simplifies inventory planning, and enables quick replenishment. Application: maintenance stocking and batch fabrication. Feature: Dimensions and compatibility—WH 30x5 mm, L 1100 mm, width fit 1200 mm. Business impact: reduces custom fabrication, ensures faster integration, and supports standardized enclosure design. Application: large-scale installations and modular control cabinets. Feature: Certifications and classifications—ETIM EC000329, ECLASS 8.0 27400605, customs tariff 74071000. Business impact: streamlines sourcing, import/compliance, and parts cataloging. Application: enterprise procurement and global supply chains.
