Rittal SV 9686.524 Busbar - E-Cu 30x5 mm DIN EN 13 601
Part Number: 9686524
Quick Summary
Rittal SV 9686.524 busbar provides efficient copper power distribution within enclosure systems. Engineers often struggle with achieving reliable connections and fast, error-free installation in compact panels. This solution aligns with DIN EN 13 601 and is cataloged under ETIM EC000329 and ECLASS 27400605, supporting seamless procurement and data synchronization. By combining robust copper performance with standardized data, it delivers measurable business value through reduced installation time, improved reliability, and easier maintenance in control cabinets and industrial enclosures.
Product Information
Extended Description

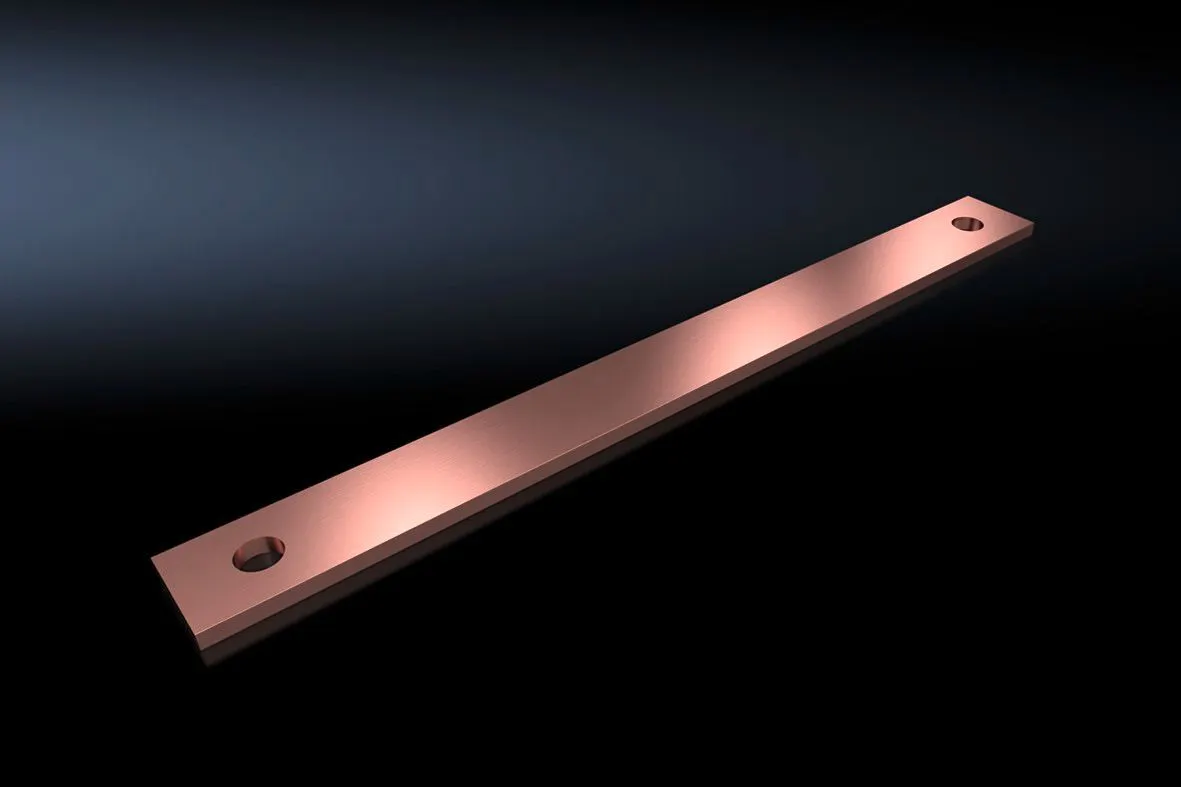

9686524 Rittal: SV PE/PEN busbar E-Cu, WH: 30x5 mm, L: 300 mm
Article number
SV 9686.524
Product description
With integral holes.
Material
E-Cu
Ø hole
11.5 mm
Dimensions
Length: 300 mm
To fit
Width: = 400 mm
Cross-section
30 mm x 5 mm
Packs of
2 pc(s).
Weight/pack
0.796 kg
Copper weight (kg per piece)
0.39
Customs tariff number
74071000
EAN
4028177934931
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
SV PE/PEN busbar E-Cu, WH: 30x5 mm, L: 300 mm
Feature: Copper E-Cu material provides low electrical resistance and high conductivity. Benefit: Enhances current carrying capacity and minimizes heat buildup, lowering operating costs and improving system reliability in panel power distribution. Application: Control cabinets and switchgear where compact footprints demand efficient copper paths. Feature: Cross-section 30 mm x 5 mm with a 300 mm length. Benefit: Fits standard 400 mm wide enclosures, enabling precise mounting without spare material, and reduces parts diversity. Application: Enclosure-based distribution blocks and busbar trunks in industrial automation. Feature: Ø holes 11.5 mm with integral punchings. Benefit: Simple, fast mounting with common hardware, reducing assembly time and field adjustments. Application: Pre-punched busbars used for rapid installation in DIN-rail and panel mounting scenarios. Feature: Packs of 2 pieces, weight per pack 0.796 kg, copper weight per piece 0.39 kg. Benefit: Predictable inventory planning and scalable quantities for cost control. Application: Batch procurement for panel builds and ongoing maintenance programs. Feature: Compliance and classifications ETIM EC000329 and ECLASS 27400605 with EAN 4028177934931. Benefit: Streamlines procurement, part tagging, and cross-system data exchange across MRO ecosystems. Application: Supply chain integration and ERP/MMIS synchronization.
Get a Quick Quote for a Rittal 9686524
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686524?
Enquire Now
FAQs
The SV 9686.524 ships as pre-punched E-Cu copper bars with 11.5 mm Ø holes, designed for straightforward mounting to enclosure rails or panels using standard fasteners. The 300 mm length and 30x5 mm cross-section fit typical distribution layouts, reducing the need for on-site machining and ensuring consistent, repeatable connections.
This busbar is manufactured from copper (E-Cu) with a cross-section of 30 mm by 5 mm and a length of 300 mm. It comes in packs of two pieces, with copper weight of 0.39 kg per piece and a pack weight of 0.796 kg. The Ø holes are 11.5 mm to accommodate common mounting hardware.
Yes. The busbar is specified to DIN EN 13 601, including integral punchings, which supports compliant integration into standard enclosures and ensures compatibility with typical manufacturing and safety requirements in industrial control cabinets.
Designed to fit enclosures up to 400 mm in width, the 30x5 mm cross-section and 300 mm length are optimized for compact panels. The integral holes enable fast mounting with standard hardware, improving installation speed and reducing the likelihood of misalignment during assembly.
Each order contains 2 pieces per pack, with a total pack weight of 0.796 kg and copper content of 0.39 kg per piece. The product is identified by article number SV 9686.524 and GTIN 4028177934931, with ETIM EC000329 and ECLASS 27400605 classifications to simplify ERP and procurement workflows.
