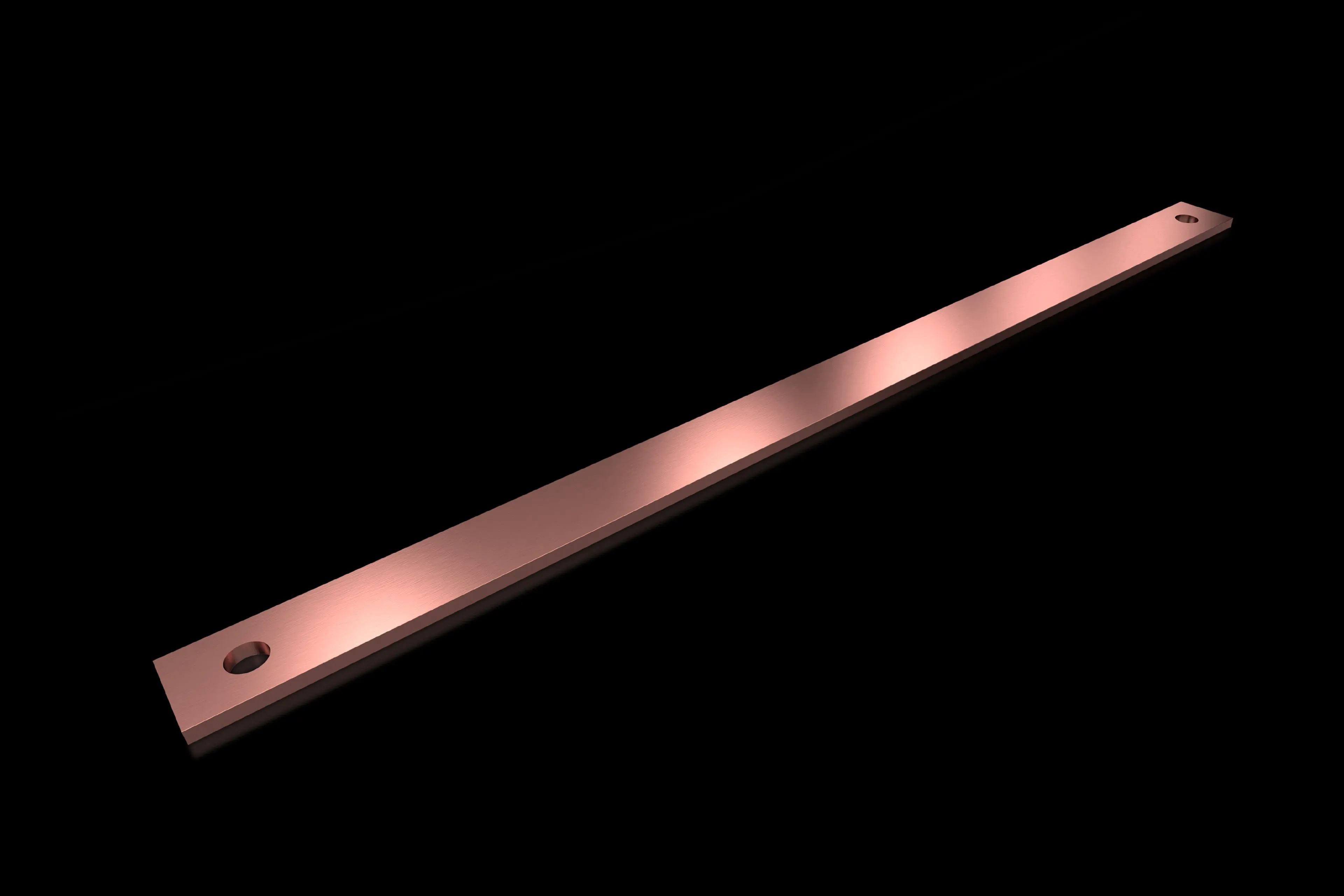

Rittal SV 9686.526 Busbar E-Cu - DIN EN 13 601
Part Number: 9686526
Quick Summary
Rittal SV 9686.526 busbar is a copper busbar for power distribution in switchgear and control panels. It addresses common panel-building pains such as mismatched hole patterns and inconsistent cross-sections, enabling faster assembly. This part aligns with standards and classifications like DIN EN 13 601, ETIM EC000329, and ECLASS 27400605, supporting procurement and compliance. For engineers and buyers, the combination of reliable conductivity, predictable lead times, and a compact, easy-to-install form factor delivers tangible business value across automation and electrical projects.
Product Information
Extended Description
9686526 Rittal: SV PE/PEN busbar E-Cu, WH: 30x5 mm, L: 500 mm
Article number
SV 9686.526
Product description
With integral holes.
Material
E-Cu
Ø hole
11.5 mm
Dimensions
Length: 500 mm
To fit
Width: = 600 mm
Cross-section
30 mm x 5 mm
Packs of
2 pc(s).
Weight/pack
1.34 kg
Copper weight (kg per piece)
0.66
Customs tariff number
74071000
EAN
4028177934740
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
SV PE/PEN busbar E-Cu, WH: 30x5 mm, L: 500 mm
Feature: Cross-section 30x5 mm in E-Cu. Business Impact: High conductor area delivers robust current carrying capacity with minimal voltage drop. Application: Ideal for primary and secondary distribution in control panels and switchgear where space is tight and performance matters. Long-tail keywords: 30 mm x 5 mm cross-section busbar, copper busbar E-Cu. Feature: Length 500 mm with width fit up to 600 mm. Business Impact: Standardized footprint reduces enclosure adaptation work, cutting installation time and costs. Application: Fits common cabinet widths, enabling quick retrofits and scalable panel builds. Long-tail keywords: L 500 mm busbar, fits width 600 mm enclosures. Feature: Ø hole 11.5 mm with integral punchings. Business Impact: Pre-punched holes simplify mounting and alignment, lowering machining requirements and part count. Application: Fast, reliable mounting in Rittal enclosures and modular panels. Long-tail keywords: 11.5 mm holes, integral holes. Feature: Material E-Cu (copper). Business Impact: Excellent electrical conductivity and corrosion resistance improve longevity and reduce maintenance cycles. Application: Critical power paths in harsh industrial environments. Long-tail keywords: copper weight, E-Cu busbars. Feature: Packs of 2 with weight 1.34 kg per pack; copper weight per piece 0.66 kg. Business Impact: Economies of scale in procurement and predictable inventory planning; lighter replacement components streamline field service. Application: Industrial rollouts and service parts strategy. Long-tail keywords: packs of 2, weight per piece. Feature: Certifications and classifications (DIN EN 13 601, ETIM EC000329, ECLASS 27400605). Business Impact: Clear regulatory and system interoperability support reduces risk and accelerates sourcing. Application: Suitable for certified control panels and safety-compliant installations. Long-tail keywords: DIN EN 13 601, ETIM EC000329, ECLASS 27400605.
Get a Quick Quote for a Rittal 9686526
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686526?
Enquire Now
FAQs
The SV 9686.526 is a 30x5 mm copper busbar designed for DIN EN 13 601 compliant panel installations. It features integral 11.5 mm holes pre-punched for straightforward mounting and aligns with typical enclosure widths up to 600 mm, reducing the need for on-site machining and adapters. Ensure mounting hardware matches the 11.5 mm hole pattern.
A 30x5 mm cross-section in E-Cu provides a substantial conductor area for reliable current-carrying performance with low resistance and minimized voltage drop. This makes it suitable for primary power paths in control panels and switchgear, supporting consistent operation under typical industrial loads while keeping heat rise within acceptable limits.
Yes. The SV 9686.526 busbar is specified to DIN EN 13 601 standards and is associated with ETIM EC000329 and ECLASS 27400605 classifications. The combination of these references aids in compliant procurement, accurate cataloging, and interoperability with compatible components in standardized control systems.
Copper E-Cu offers excellent conductivity and corrosion resistance, reducing degradation over time. Pre-punched integral holes simplify ongoing maintenance and future reconfiguration, while the 500 mm length and 600 mm fit width minimize the need for field fabrication, lowering maintenance downtime and extending service intervals in harsh industrial environments.
Buying in packs of 2 provides procurement efficiency by reducing ordering frequency and part-count management. With a per-piece copper weight of 0.66 kg and a total pack weight of about 1.34 kg, total material cost remains predictable. Combined with faster installation, labor costs and downtime are typically reduced in panel builds.
