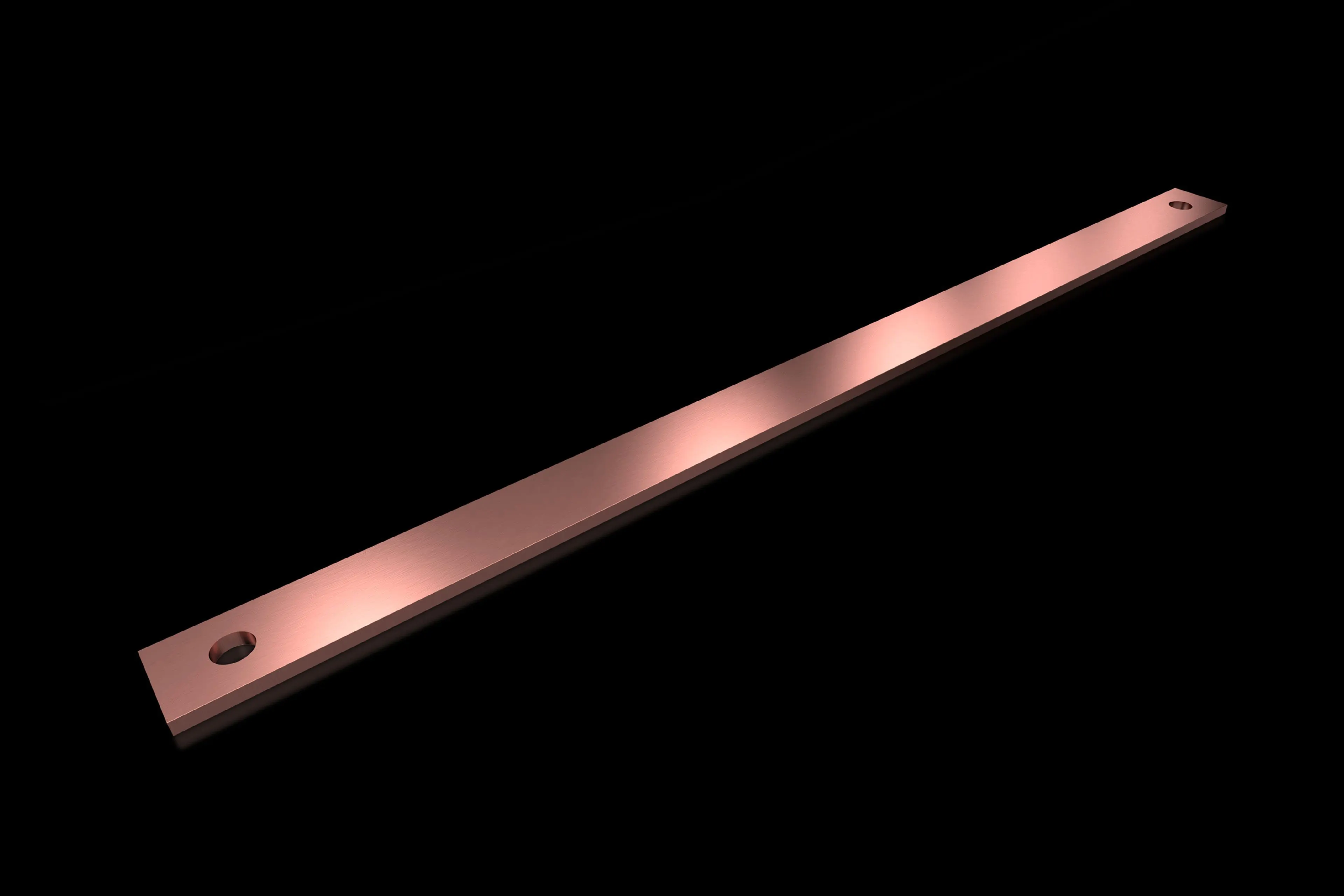

Rittal SV 9686.528 busbar - DIN EN 13 601, integral holes
Part Number: 9686528
Quick Summary
The Rittal SV 9686.528 busbar enables efficient copper power distribution in control cabinets. Engineers often struggle with mounting complexity and time-consuming wiring, leading to delays and higher assembly costs. The part complies with DIN EN 13 601 and is referenced in ETIM 9 EC000329 and ECLASS 8.0 27400605, supporting procurement standardization and data accuracy. With E-Cu material, 30x5 mm cross-section, L 700 mm, and integral holes, it delivers reliable connections and fast installation. The two-pack design helps streamline stocking and project planning, while predictable copper weight supports precise heat management and inventory control.
Product Information
Extended Description
9686528 Rittal: SV PE/PEN busbar E-Cu, WH: 30x5 mm, L: 700 mm
Article number
SV 9686.528
Product description
With integral holes.
Material
E-Cu
Ø hole
11.5 mm
Dimensions
Length: 700 mm
To fit
Width: = 800 mm
Cross-section
30 mm x 5 mm
Packs of
2 pc(s).
Weight/pack
1.86 kg
Copper weight (kg per piece)
0.93
Customs tariff number
74071000
EAN
4028177934887
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
SV PE/PEN busbar E-Cu, WH: 30x5 mm, L: 700 mm
Feature: Integral holes and punchings enable quick, accurate mounting. Benefit: Reduces assembly time, minimizes misalignment, and lowers field modification costs when wiring control cabinets. Application: Ideal for DIN-rail compatible enclosures and 800 mm-wide cabinets where precise hole alignment speeds installation. Feature: E-Cu material with 30x5 mm cross-section delivers low electrical resistance. Benefit: Minimizes voltage drop and heat, improving overall efficiency and reliability of power distribution in automation panels. Application: Suitable for feeder bars and main distribution in PLC cabinets. Feature: Length 700 mm designed to fit 800 mm-wide enclosures. Benefit: Reduces waste and trimming steps, enabling predictable stock and faster project completion. Application: Common in standard control cabinets and machine automations. Feature: Packs of 2 with copper weight 0.93 kg per piece (1.86 kg per pack). Benefit: Streamlines procurement and inventory planning, lowering handling costs and lead times. Application: Enterprise-level projects with multi-bay cabinets and modular layouts. Feature: DIN EN 13 601 alignment with ETIM 9 EC000329 and ECLASS 8.0 27400605. Benefit: Improves data accuracy for procurement systems and ensures compliance with industry data standards. Application: Eases supplier qualification and catalog integration for manufacturing environments.
Get a Quick Quote for a Rittal 9686528
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686528?
Enquire Now
FAQs
The SV 9686.528 is designed for standard 800 mm-wide control cabinets with a 700 mm length, using 30x5 mm cross-section copper and 11.5 mm holes for integral mounting.
Key specs include E-Cu material, 30x5 mm cross-section, 700 mm length, 11.5 mm hole diameter, and copper weight about 0.93 kg per piece (1.86 kg per pack).
It references DIN EN 13 601, ETIM 9 EC000329, and ECLASS 8.0 27400605, aiding data accuracy and procurement workflows in industrial environments.
It serves as a copper power distribution busbar in control cabinets and automation panels, providing reliable connections for 30x5 mm cross-section conductors.
Integral holes simplify mounting, reducing assembly time, while the two-pack configuration supports efficient stocking and project planning in multi-cabinet deployments.
