Rittal 9686530 Busbar SV 9686.530 - DIN EN 13 601
Part Number: 9686530
Quick Summary
Rittal busbar 9686530 provides high-conductivity power distribution for control panels. Hard-to-align holes and heavy copper complicate panel assembly—this busbar features integral punchings for faster, reliable mounting. Compliance includes DIN EN 13 601; supported by ETIM EC000329 and ECLASS 27400605 for vendor data. The 30x10 mm E-Cu cross-section and 900 mm length balance density and space, enabling compact enclosures with minimal copper waste. This combination supports robust electrical performance, predictable resistance, and reduced installation time, while the included pack configuration (two pieces per pack) streamlines stocking and increases project efficiency. By leveraging standard data classifications and a proven copper alloy, procurement remains consistent across assemblies, reducing rework and enhancing serviceability for future maintenance.
Product Information
Extended Description

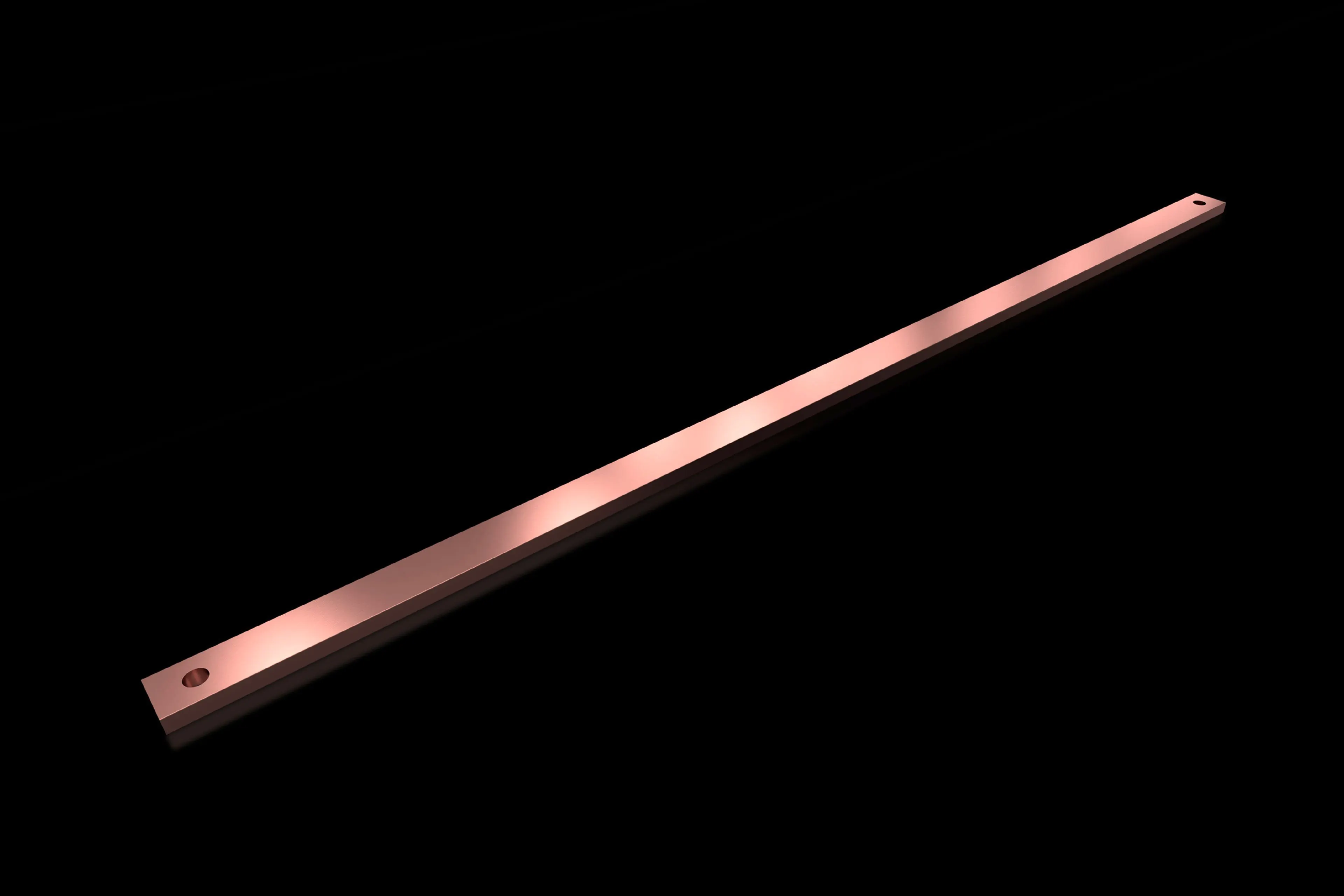

9686530 Rittal: SV PE/PEN busbar E-Cu, WH: 30x10 mm, L: 900 mm
Article number
SV 9686.530
Product description
With integral holes.
Material
E-Cu
Ø hole
11.5 mm
Dimensions
Length: 900 mm
To fit
Width: = 1,000 mm
Cross-section
30 mm x 10 mm
Packs of
2 pc(s).
Weight/pack
4.86 kg
Copper weight (kg per piece)
2.4
Customs tariff number
74071000
EAN
4028177934924
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
SV PE/PEN busbar E-Cu, WH: 30x10 mm, L: 900 mm
Feature: E-Cu copper with 30x10 mm cross-section. Benefit: High conductivity and low resistance reduce voltage drop in power distribution, improving panel efficiency and performance in control cabinets. Application: Ideal for compact control panels where space and thermal management are critical, enabling reliable power distribution with minimal heat buildup. Feature: Length 900 mm with integral punchings and 11.5 mm holes. Benefit: Facilitates quick mounting and alignment, cutting installation time and reducing the need for additional hardware. Application: Perfect for DIN-rail and panel mounting scenarios where standardized hole size accelerates integrations and maintenance.Feature: Pack size two pieces and weight characteristics (4.86 kg per pack, 2.4 kg copper per piece). Benefit: Streamlined stocking, predictable inventory planning, and scalable procurement for mid-to-large installations. Application: Helpful in projects requiring multiple bars or modular assemblies across enclosures with repeatable layouts.Feature: Material and standards alignment (E-Cu, DIN EN 13 601, ETIM EC000329, ECLASS 27400605). Benefit: Ensures regulatory compliance and consistent data communication across procurement systems, reducing misinterpretation and mismatch risk. Application: Facilitates cross-supplier compatibility and a smoother data handoff between engineering, sourcing, and maintenance teams.Feature: Compatibility with width up to 1,000 mm and 900 mm length. Benefit: Supports flexible enclosure designs while maintaining robust current paths, minimizing unused space and material waste. Application: Suitable for medium to large electrical panels where panel width varies by system requirements.Industry context: In modern automation environments, these busbars are favored for their balance of mechanical fit, electrical performance, and data-standard alignment. Long-term value comes from reduced assembly time, lower risk of misalignment, and improved lifecycle maintenance, making this choice well-suited for aerospace, automotive, and process industries where reliability matters.
