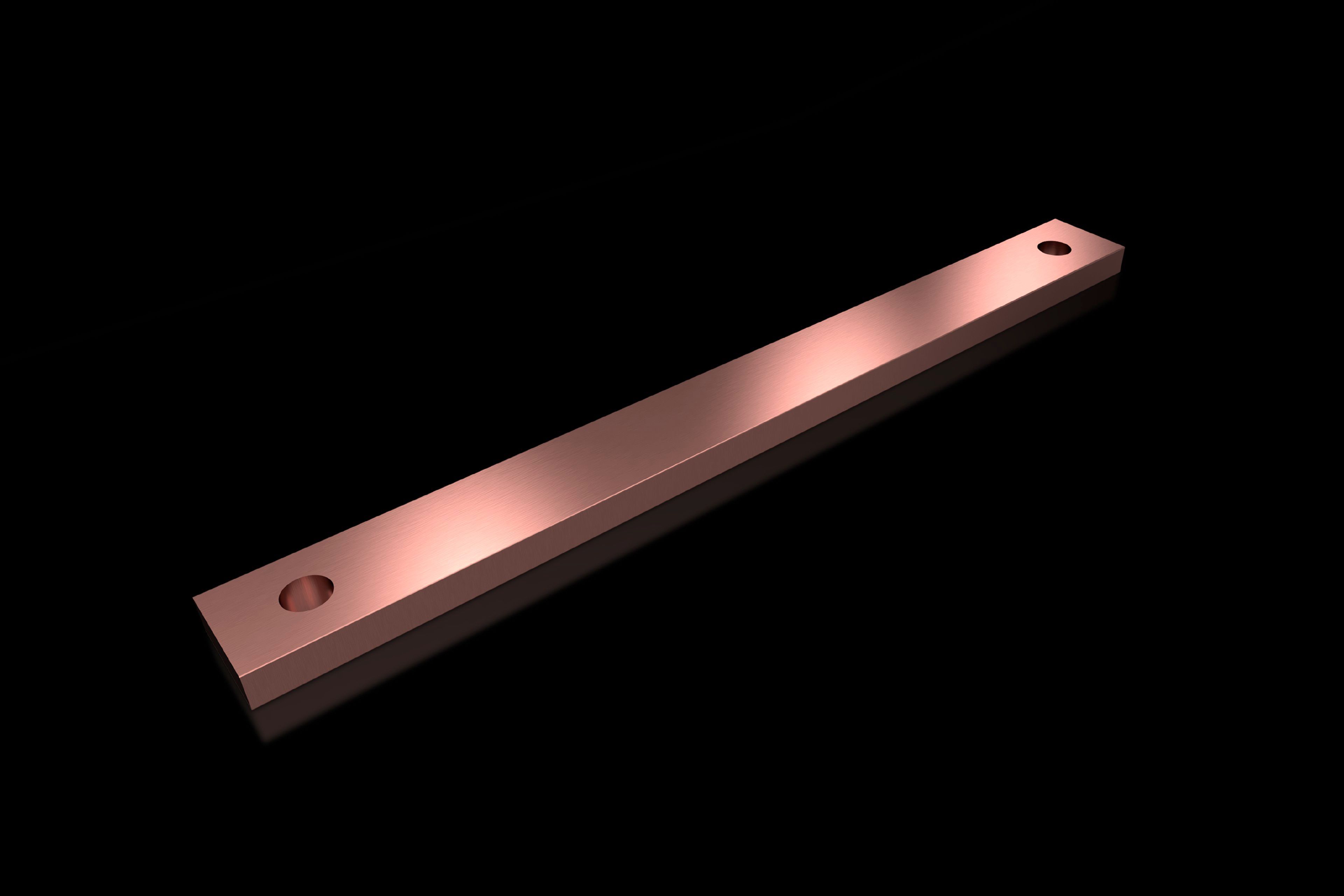

Rittal 9686534 Busbar - DIN EN 13 601, E-Cu 30x10 mm
Part Number: 9686534
Quick Summary
Rittal SV 9686.534 busbar is a copper power busbar designed for tight control cabinet layouts. It delivers reliable, low-resistance current paths with integrated holes for quick mounting. Engineers often face space constraints and misaligned mounting hardware; this busbar’s 30x10 mm cross-section, 11.5 mm hole diameter, and 300 mm length help simplify installation while maintaining electrical integrity. The product is specified to DIN EN 13 601, and is classified under ETIM 9 EC000329 and ECLASS 8.0 27400605, which improves procurement data and cross-system compatibility. For panel builders and integrators, this combination reduces assembly time, supports traceability, and aligns with standard enclosure designs while providing the necessary copper weight and current capacity for medium-power distributor blocks.
Product Information
Extended Description
9686534 Rittal: SV PE/PEN busbar E-Cu, WH: 30x10 mm, L: 300 mm
Article number
SV 9686.534
Product description
With integral holes.
Material
E-Cu
Ø hole
11.5 mm
Dimensions
Length: 300 mm
To fit
Width: = 400 mm
Cross-section
30 mm x 10 mm
Packs of
2 pc(s).
Weight/pack
1.582 kg
Copper weight (kg per piece)
0.79
Customs tariff number
74071000
EAN
4028177934894
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
SV PE/PEN busbar E-Cu, WH: 30x10 mm, L: 300 mm
Feature: E-Cu material provides low electrical resistance and high conductivity. Impact: Improves current capacity and reduces heat buildup in dense panel layouts, enabling reliable operation across power rails. Application: Ideal for control cabinets and subsystem power distribution where thermal performance matters and copper weight per piece is a procurement consideration. Feature: 30 mm x 10 mm cross-section with 11.5 mm Ø holes delivers robust mounting geometry. Impact: Ensures strong mechanical anchoring and consistent contact interfaces, reducing need for spacers. Application: Common in mid-power applications with standardized hole spacing in Rittal enclosures. Feature: 300 mm length with integral punchings and holes. Impact: Enables fast installation and minimizes on-site drilling, cutting, or modification, lowering labor time and waste. Application: Panel buildouts requiring rapid rack mounting and tidy wiring runs. Feature: Packs of 2 pieces and copper weight 0.79 kg per piece (1.582 kg per pack). Impact: Predictable inventory planning and cost per install; supports batch purchasing and just-in-time sourcing. Application: Sizable projects with multiple busbars and strict procurement data tracking. Feature: DIN EN 13 601 compliance with ETIM 9 EC000329 and ECLASS 8.0 27400605 classification. Impact: Streamlines regulatory alignment and cross-vendor data exchange, reducing compliance risk. Application: Industrial automation projects with strict standards and data-driven procurement workflows.
Get a Quick Quote for a Rittal 9686534
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686534?
Enquire Now
FAQs
Yes. The SV 9686.534 busbar features a 30x10 mm cross-section and is sized to fit standard enclosure widths up to 400 mm. It comes with integral holes (Ø 11.5 mm) and a 300 mm length, simplifying mounting within typical control cabinet frames and aligning with common mounting hole patterns for fast, secure installation.
The busbar is made from E-Cu (copper) with a cross-section of 30 mm by 10 mm, length 300 mm, and Ø 11.5 mm mounting holes. It belongs to the SV PE/PEN family and is supplied in packs of two pieces, with copper weight around 0.79 kg per piece and 1.582 kg per pack.
It complies with DIN EN 13 601. It is also cataloged with ETIM 9 EC000329 and ECLASS 8.0 27400605, ensuring consistent procurement metadata and cross-system compatibility across ERP, purchasing platforms, and product catalogs.
Integral holes eliminate the need for on-site drilling, reducing installation time and risk of misalignment. The 11.5 mm holes and 300 mm length support straightforward mounting with standard hardware, promoting faster assembly in control panels while maintaining reliable electrical contact.
Copper weight is 0.79 kg per piece, with 1.582 kg per pack (two pieces). This predictable copper weight supports accurate BOM planning, reduces waste, and improves shipping efficiency. For projects requiring multiple busbars, the two-piece packs simplify stocking and procurement logistics while maintaining performance.
