Rittal 9686538 busbar SV PE/PEN - DIN EN 13 601
Part Number: 9686538
Quick Summary
Rittal 9686538 busbar SV PE/PEN is a high-conductivity copper conductor designed for power distribution in control panels and switchgear. Engineers often struggle with mounting accuracy and hole alignment when integrating copper busbars into compact enclosures. This solution complies with DIN EN 13 601, uses E-Cu material, and features integral punchings to speed installation. With a 30x10 mm cross-section and a 700 mm length, it supports scalable wiring for automation cabinets while delivering reliable performance. In practice, it reduces assembly time, improves electrical reliability, and lowers total cost of ownership by standardizing fit and simplifying procurement. For panel builders and electrical contractors, it offers a proven combination of mechanical compatibility and electrical efficiency.
Product Information
Extended Description

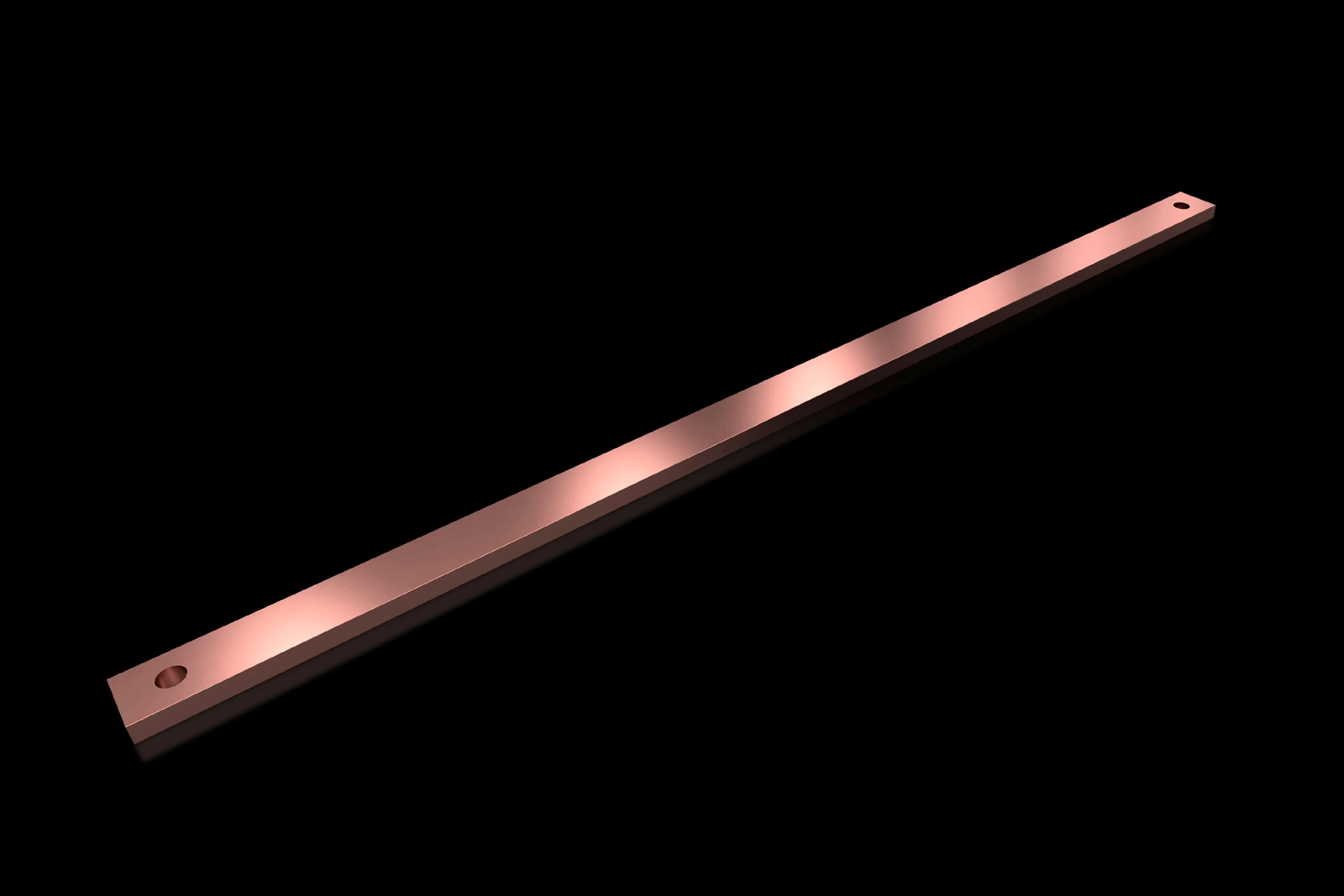

9686538 Rittal: SV PE/PEN busbar E-Cu, WH: 30x10 mm, L: 700 mm
Article number
SV 9686.538
Product description
With integral holes.
Material
E-Cu
Ø hole
11.5 mm
Dimensions
Length: 700 mm
To fit
Width: = 800 mm
Cross-section
30 mm x 10 mm
Packs of
2 pc(s).
Weight/pack
3.774 kg
Copper weight (kg per piece)
1.86
Customs tariff number
74071000
EAN
4028177934764
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
SV PE/PEN busbar E-Cu, WH: 30x10 mm, L: 700 mm
Feature: E-Cu material with 30x10 mm cross-section provides high electrical conductivity and structural strength. Benefit: Reduces voltage drop and heat generation, enabling safer, more efficient power distribution in control cabinets. Application: Ideal for 24 V to 400 V automation panels where consistent current carrying capacity is required. Feature: Length of 700 mm and a width to fit up to 800 mm enclosures. Benefit: Flexible routing across common panel widths, minimizing splices and joins. Application: Suitable for multi-module machine builds and scalable automation systems. Feature: Ø holes of 11.5 mm and integral punchings. Benefit: Quick mounting and precise alignment reduces on-site drilling and warranty risks. Application: Fast, repeatable installation in production lines and panel assemblies. Feature: Pack configuration of 2 pieces per pack with copper weight of 1.86 kg per piece. Benefit: Simplified stocking, predictable weight planning, and cost-efficient procurement. Application: Warehousing and supply chains for panel fabrication projects. Feature: DIN EN 13 601 compliance and documented product data (ETIM/ECLASS). Benefit: Regulatory alignment and easy specification matching in procurement systems. Application: Engineering and sourcing workflows in industrial automation environments. Feature: Product description and dimensions mirror common industry standards, enabling compatibility with mix-and-match components and modular enclosures. Benefit: Reduces design iterations and accelerates project timelines. Application: System integrators and panel builders seeking reliable, plug-and-play busbar components.
Get a Quick Quote for a Rittal 9686538
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686538?
Enquire Now
FAQs
The SV 9686.538 busbar is made of electronic-grade copper (E-Cu) with a cross-section of 30 mm by 10 mm and a length of 700 mm. Holes measure 11.5 mm in diameter, and the product is designed to fit enclosure widths up to 800 mm.
This busbar is ideal for power distribution in control panels and automation cabinets, including connections between modular components in switchgear and other industrial electrical assemblies.
Yes, the product is specified to be to DIN EN 13 601, with integral punchings that support rapid, compliant installation in standard enclosures.
Packs contain 2 pieces, with a copper weight of 1.86 kg per piece, totaling 3.774 kg per pack.
It features integral holes with a 11.5 mm diameter to facilitate fast mounting and alignment, reducing on-site drilling and ensuring a reliable mechanical fit in standard panels.
