Rittal SV 9686.544 Busbar - DIN EN 13 601 integral holes
Part Number: 9686544
Quick Summary
Rittal SV 9686.544 Busbar is a copper power-distribution component designed for control panels and electrical cabinets. The goal is to deliver reliable, compact connections in tight spaces where space and current path integrity are critical. It aligns with DIN EN 13 601 and leverages ETIM and ECLASS classifications to ensure procurement consistency. This solution emphasizes copper performance for low resistance, while the 40x10 mm cross-section and 300 mm length support scalable current paths, enabling efficient panel layouts and reduced wiring complexity. Businesses gain predictable installation times and improved supply-chain traceability through standardized part numbers and documented specifications.
Product Information
Extended Description

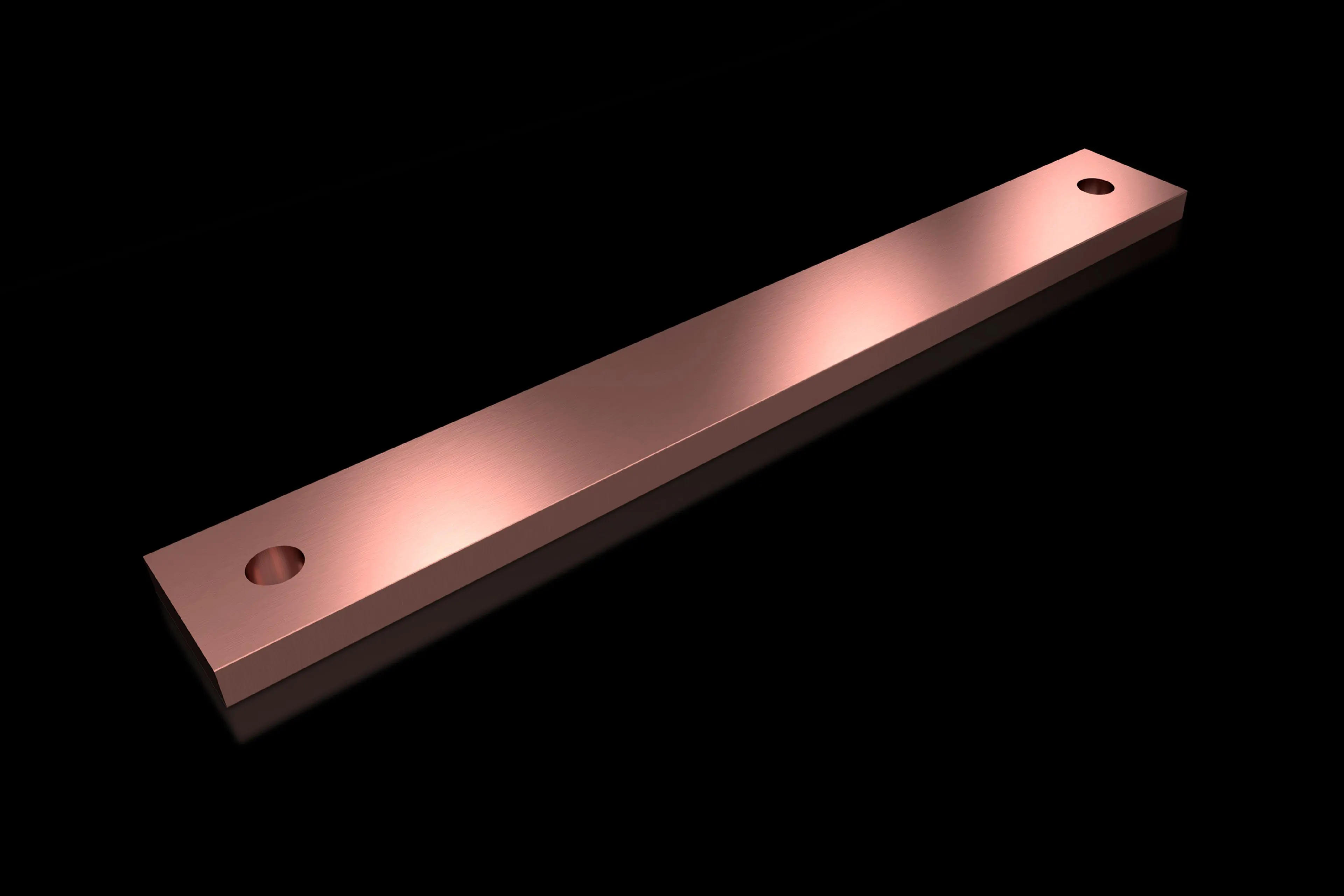

9686544 Rittal: SV PE/PEN busbar E-Cu, WH: 40x10 mm, L: 300 mm
Article number
SV 9686.544
Product description
With integral holes.
Material
E-Cu
Ø hole
11.5 mm
Dimensions
Length: 300 mm
To fit
Width: = 400 mm
Cross-section
40 mm x 10 mm
Packs of
2 pc(s).
Weight/pack
2.122 kg
Copper weight (kg per piece)
1.05
Customs tariff number
74071000
EAN
4028177934856
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
SV PE/PEN busbar E-Cu, WH: 40x10 mm, L: 300 mm
Feature → Business Impact → Application: Integral holes across the busbar simplify mounting and reduce assembly steps, cutting install time and potential misalignment in dense switchgear assemblies. Result: faster panel builds and lower labor costs during commissioning; ideal for E-Cu distribution paths in compact enclosures. Feature → Copper weight and cross-section (40 mm x 10 mm) supports low electrical resistance and robust current capacity, improving thermal performance and reliability in continuous duty applications; use in control panels and power distribution blocks. Feature → Length 300 mm and width compatibility up to 400 mm broadens design options, enabling modular rack layouts and compatibility with common Rittal enclosures; applicable to medium-scale enclosures and shared busbar runs. Feature → Packs of 2 and weight per pack (2.122 kg) support optimized stocking, predictable replenishment cycles, and reduced inventory carrying costs; suitable for procurement strategies in manufacturing environments. Feature → DIN EN 13 601 compliance, ETIM 9 EC000329 and ECLASS 8.0 27400605 classifications provide clear sourcing signals and compliance alignment for global supply chains; use when evaluating supplier catalogs and ERP integrations. Feature → Material E-Cu and detailed holeØ (11.5 mm) ensures consistent mechanical fit and electrical contact integrity, minimizing retorque needs and maintenance intervals in high-density panels. These attributes collectively support efficient maintenance planning, reduced downtime, and improved overall equipment reliability in industrial automation and electrical distribution systems.
