Rittal SV 9686.580 Busbar - 80x10 mm, DIN EN 13 601
Part Number: 9686582
Quick Summary
Rittal SV 9686.580 busbar is a copper conductor for power distribution inside electrical enclosures. This solution reduces on-site punching, misalignment, and copper loss by providing ready-to-mount holes and a precise cross-section. The design directly addresses common field challenges, such as adapting to enclosure widths and ensuring robust current paths under dynamic load. It complies with DIN EN 13 601 and is classified in ETIM EC000329 and ECLASS 27400605, which streamlines cataloging and supplier collaboration. For engineers and procurement teams, this busbar translates to faster installations, predictable resistance, and lower lifecycle costs, while maintaining compatibility with standard enclosure frameworks and component families. Copper weight and dimensional accuracy support repeatable assembly in high-demand environments.
Product Information
Extended Description

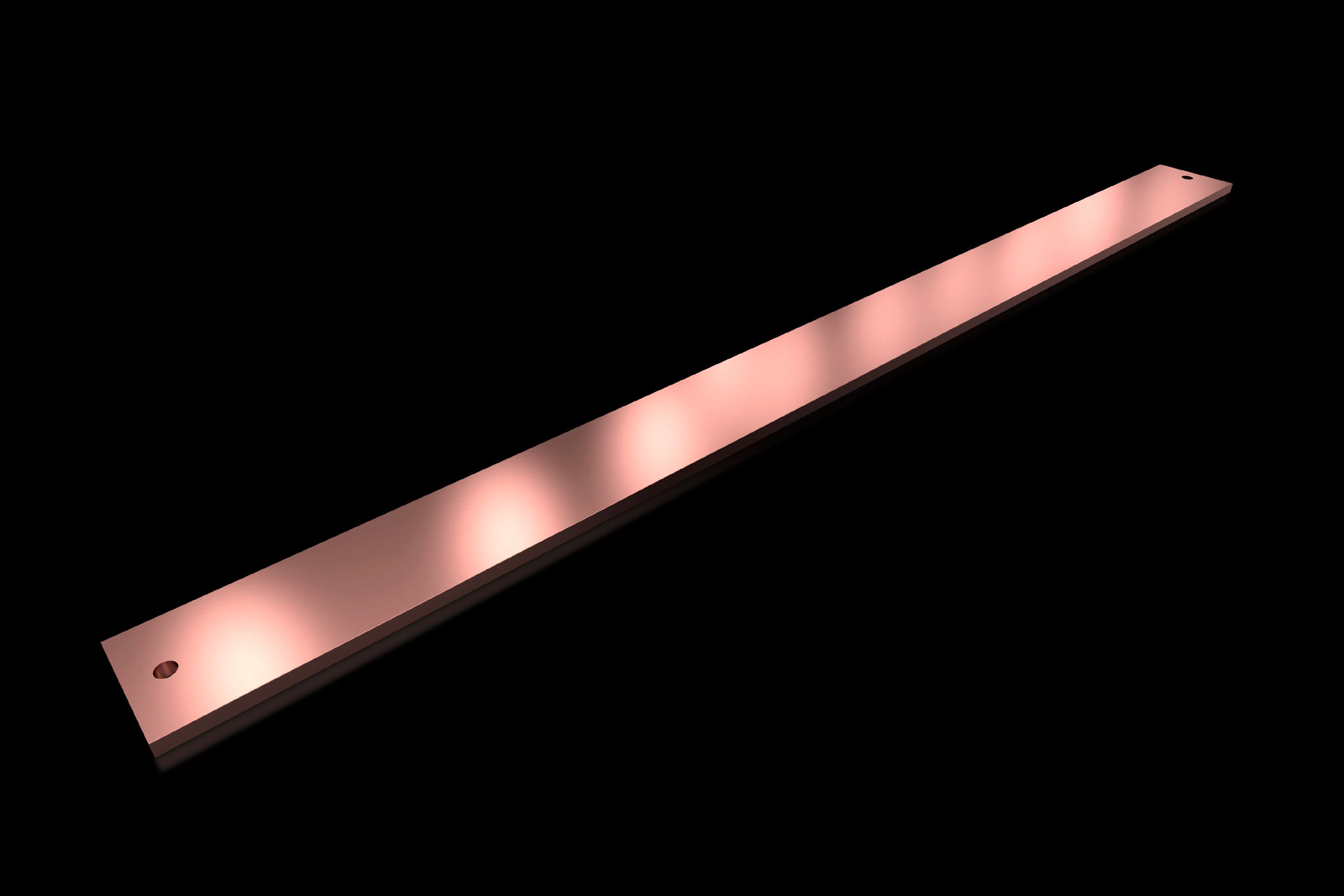

9686582 Rittal: SV PE/PEN busbar E-Cu, WH: 80x10 mm, L: 1100 mm
Article number
SV 9686.582
Product description
With integral holes.
Material
E-Cu
Ø hole
11.5 mm
Dimensions
Length: 1,100 mm
To fit
Width: = 1,200 mm
Cross-section
80 mm x 10 mm
Packs of
2 pc(s).
Weight/pack
15.78 kg
Copper weight (kg per piece)
7.85
Customs tariff number
74071000
EAN
4028177934733
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
SV PE/PEN busbar E-Cu, WH: 80x10 mm, L: 1100 mm
Feature: Copper E-Cu material provides excellent electrical conductivity and durability, reducing resistive losses and heat generation. Business Impact: Lower energy waste and cooler operation translate to higher reliability in dense control panels and power distribution blocks. Application: Ideal for high-current paths in industrial enclosures where long-term performance matters. Feature: Cross-section 80 mm x 10 mm delivers a robust current path with compact form factor, supporting efficient space planning in switchgear assemblies. Business Impact: Maximizes enclosure capacity and minimizes board space, enabling scalable designs for future upgrades. Application: Suitable for Rittal enclosures and similar modular systems. Feature: Length 900 mm with integral holes (Ø 11.5 mm) and factory-punched mounting points. Business Impact: Speeds installation, reduces field modification costs, and ensures repeatable mounting accuracy. Application: Quick replacement or retrofit in existing layouts. Feature: Packs of 2 pieces and weight per piece 6.42 kg copper weight; Business Impact: Streamlines logistics and budgeting, enabling predictable project scoping. Application: Two-piece sets support bilateral busbar runs in mid-size systems. Feature: Customs tariff 74071000 and ETIM/ECLASS alignment enhance procurement traceability. Business Impact: Eases import compliance and supplier data integration, reducing sourcing risk. Application: Ideal for global projects with standardized cataloging. Feature: Integral punching and DIN EN 13 601 compliance confirm interoperability. Business Impact: Simplifies installation, guarantees compatibility, and supports regulatory conformity. Application: Fits standard industrial control architectures and enclosure families.
Get a Quick Quote for a Rittal 9686582
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686582?
Enquire Now
FAQs
The SV 9686.580 busbar is designed for enclosures with up to 1000 mm width and a 900 mm length fit. It features an 80x10 mm cross-section and integral 11.5 mm holes, packaged as two pieces per set, optimizing space planning and reducing on-site modifications.
The busbar uses E-Cu copper with a cross-section of 80x10 mm, length of 900 mm, and hole diameter of 11.5 mm. Copper weight per piece is 6.42 kg, with a pack weight of 12.92 kg, and it arrives in packs of two for efficient logistics.
Yes, the SV 9686.580 is manufactured to DIN EN 13 601 specifications and includes integral punching holes (Ø 11.5 mm) for straightforward mounting. The design minimizes on-site punching and aligns with standard enclosure frameworks for rapid, repeatable installation.
The product is associated with DIN EN 13 601 compliance and is cataloged under ETIM EC000329 and ECLASS 27400605, ensuring consistent data across procurement systems and facilitating cross-vendor compatibility.
Two-piece packs simplify stocking and logistics, with a total copper weight of 12.92 kg per pack. Integral holes streamline installation and reduce field processing time, delivering faster commissioning and improved project predictability.
