Rittal 9686588 Busbar - DIN EN 13 601 compliant
Part Number: 9686588
Quick Summary
Rittal 9686588 busbar provides high-conductivity copper interconnects for electrical distribution in control panels and switchgear. End users often struggle with misalignment, inconsistent copper weight, and time-consuming mounting; this model addresses those pains with precise dimensions and integral punchings. The product aligns with DIN EN 13 601 and is classified under ETIM EC000329 and ECLASS 27400605, supporting reliable procurement and regulatory alignment. In practice, technicians gain faster installation, improved current handling, and easier maintenance, while engineers can document specifications quickly for BOMs. Organized packaging (two pieces per pack) and clear labeling streamline inventory in high-volume assembly environments.
Product Information
Extended Description

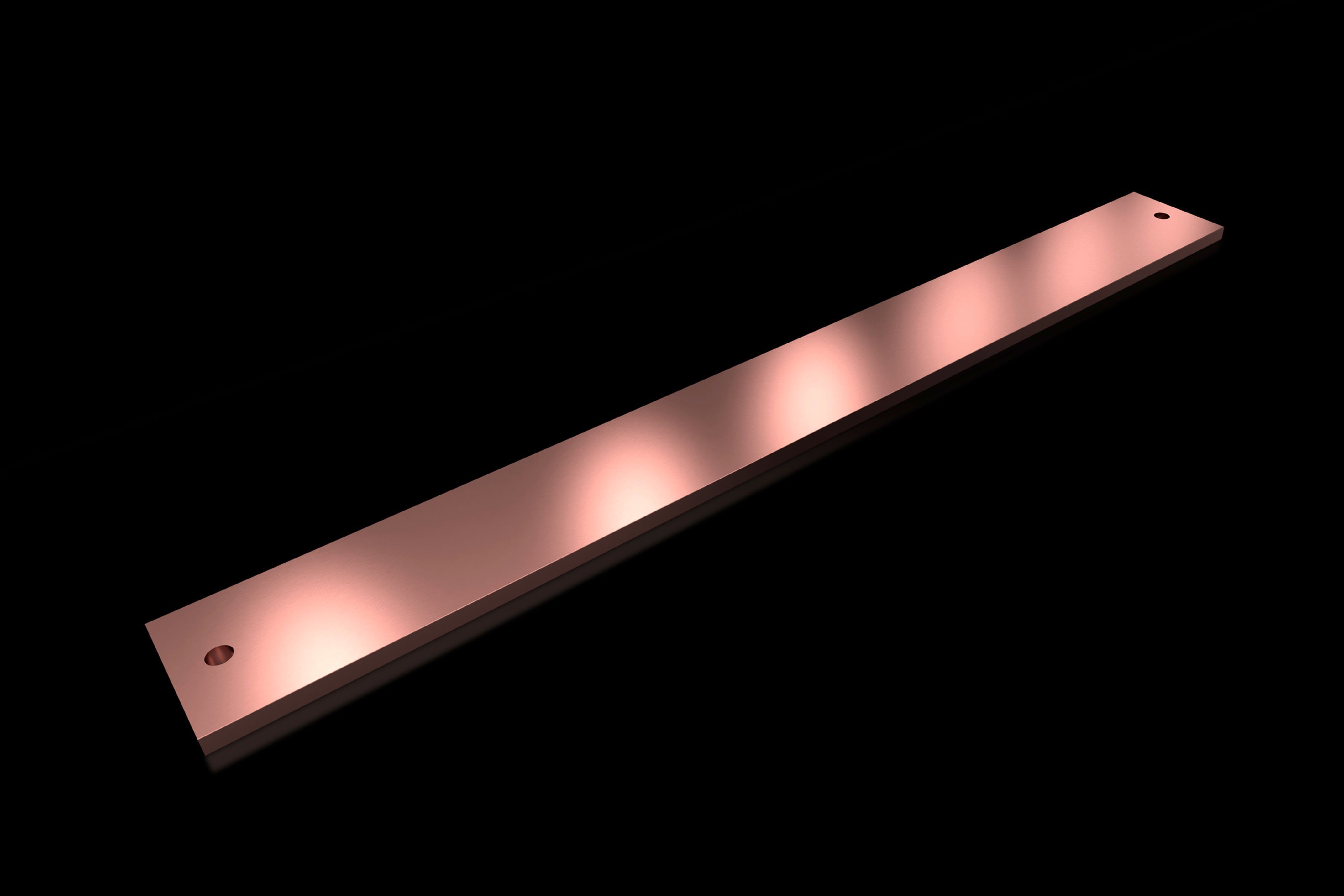

9686588 Rittal: SV PE/PEN busbar E-Cu, WH: 80x10 mm, L: 700 mm
Article number
SV 9686.588
Product description
With integral holes.
Material
E-Cu
Ø hole
11.5 mm
Dimensions
Length: 700 mm
To fit
Width: = 800 mm
Cross-section
80 mm x 10 mm
Packs of
2 pc(s).
Weight/pack
10.06 kg
Copper weight (kg per piece)
4.99
Customs tariff number
74071000
EAN
4028177934825
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
SV PE/PEN busbar E-Cu, WH: 80x10 mm, L: 700 mm
Material and cross-section: The busbar is made of E-Cu copper with a cross-section of 80 mm x 10 mm and a length of 700 mm, delivering low electrical resistance and robust current handling. Business impact: Lower operating temperatures and reduced voltage drop translate into higher system reliability and longer component life. Application: Ideal for panel wiring in control cabinets and compact switchgear assemblies where space is at a premium. Integral holes and precise punching: With integral holes, mounting accuracy is improved and assembly time is reduced. Business impact: Fewer misfit parts and faster installation minimize downtime during maintenance or expansion. Application: Pre-punched, factory-made holes align with standard mounting patterns in Rittal enclosures. Dimensions and fit: Width support up to 800 mm and a 700 mm length ensure compatibility with common cabinet footprints, while a 11.5 mm hole size facilitates secure connector integration. Business impact: Predictable fit reduces rework and accelerates project timelines. Application: Suitable for modular panel builds and plug-in distribution across automation cabinets. Pack and weight clarity: Packs of 2 pieces with a total weight of 10.06 kg per pack and 4.99 kg copper weight per piece enable straightforward inventory planning. Business impact: Simplified logistics and cost accounting, with clear BOM data. Application: Meets procurement tagging needs and supports bulk ordering. Standards and classification: ETIM EC000329, ECLASS 27400605, and DIN EN 13 601 alignment provide robust product tagging and compliance support. Business impact: Streamlined supplier qualification and safer, auditable installations. Application: Useful for industry-grade electrical distribution in industrial automation environments.
Get a Quick Quote for a Rittal 9686588
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686588?
Enquire Now
FAQs
Yes. The SV PE/PEN busbar is designed for 80x10 mm cross-section and 700 mm length with 11.5 mm holes to match typical Rittal enclosure mounting patterns. It ships as two pieces per pack and aligns with common pre punched layouts, simplifying adoption in existing control panels and switchgear assemblies.
Key specs include material E-Cu copper, cross-section 80 mm x 10 mm, length 700 mm, hole diameter 11.5 mm, and weight per piece 4.99 kg. Packs contain two pieces, with total pack weight 10.06 kg. These values support reliable current distribution in medium- to high-current panel applications.
The copper busbar offers high conductivity due to E-Cu construction and a substantial cross-section, suitable for internal distribution in control cabinets and switchgear. For very high-current scenarios, verify connector sizing and enclosure clearance, but the 80x10 mm profile provides robust performance for most industrial automation applications.
The product aligns with DIN EN 13 601 and is catalogued under ETIM EC000329 and ECLASS 27400605. It carries the EAN 4028177934825 and customs tariff 74071000, supporting compliant procurement and traceability in regulated supply chains.
Copper busbars provide low resistance and durable connections, reducing heating and downtime. Integral holes shorten assembly steps, improving installation efficiency. The two-piece pack and clear specifications support accurate BOMs and faster replacement, contributing to lower total cost of ownership in ongoing manufacturing and panel maintenance.
