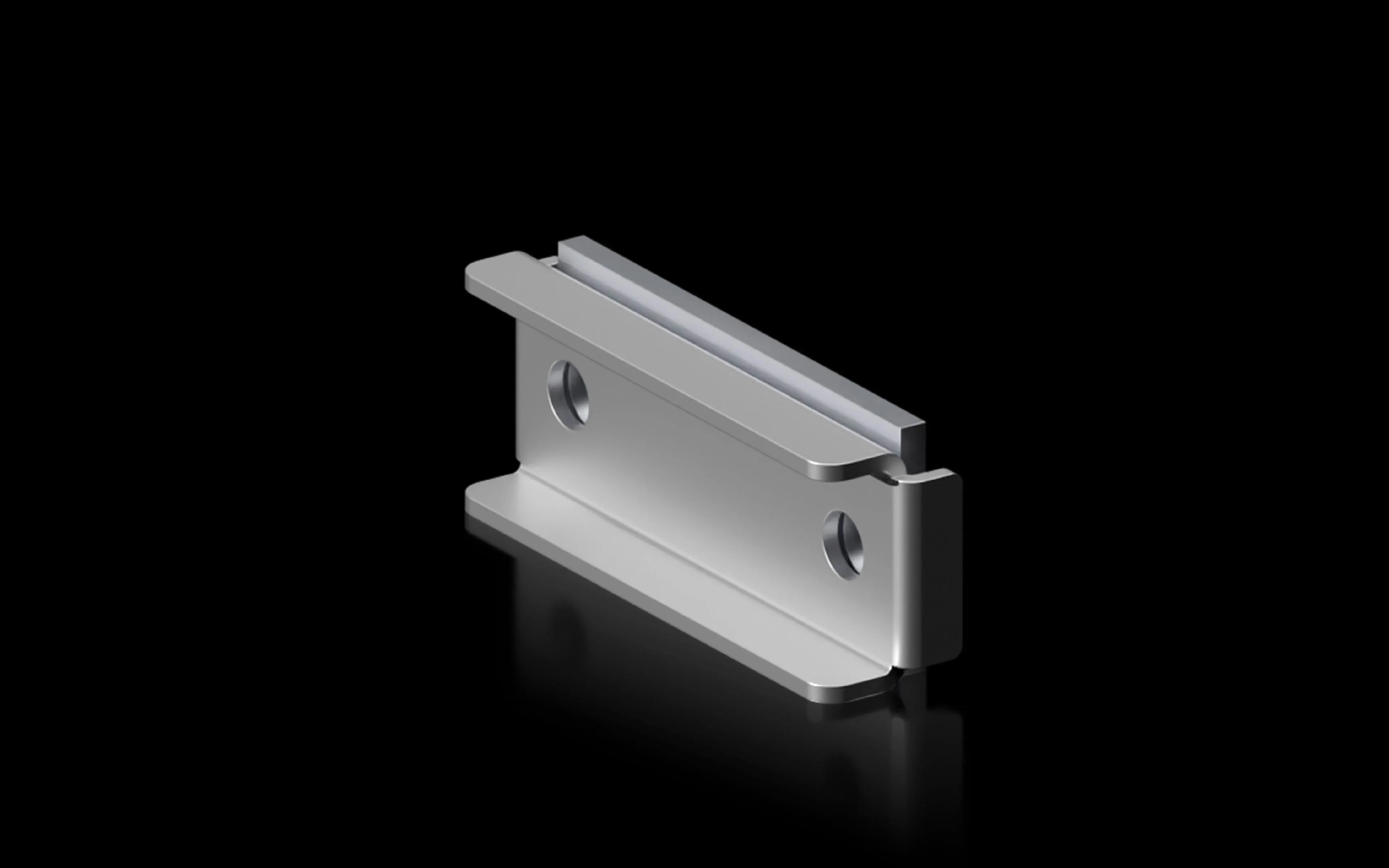

Rittal 9686720 SV Connection Plate - 32x20 mm
Part Number: 9686720
Manufacturer
Rittal
Part number
9686720
Category
Alt Part Number
SV 9686.720
Quick Summary
Rittal 9686720 SV Connection Plate is a stainless steel clamping plate that secures laminated copper bars to a flat busbar system for robust power distribution. Engineers often struggle with unreliable connections, corrosion risk, and time-consuming assembly in panels. The product aligns with ETIM EC002270 and ECLASS 27409221 classifications, while its silver-plated copper infill and corrosion-resistant clamp deliver durable, high-conductivity performance. By providing a standardized 32x20 mm clamping area and clear installation notes, it accelerates assembly and reduces lifecycle costs, delivering dependable busbar integrity in demanding environments. Secondary benefits include streamlined procurement and consistent mechanical fits across Rittal panel ecosystems.
Product Information
Extended Description
9686720 Rittal: SV connection plate, clamping area WH: 32x20 mm
Article number
SV 9686.720
Material
Clamping plate: Stainless steel | Connection infill: E-Cu, silver-plated
Note
Connection plate 9686.750 is additionally required for connecting to the busbar system
Clamping area for laminated copper bars (W x H)
32 x 20 mm
Packs of
1 pc(s).
Customs tariff number
74071000
EAN
4028177981393
ETIM 9
EC002270
ETIM 8
EC002270
ECLASS 8.0
27409221
Product description
SV connection plate, clamping area WH: 32x20 mm
Feature: Stainless steel clamping plate with silver-plated copper infill ensures corrosion resistance and low contact resistance. Business Impact: Extends service life and reduces maintenance costs in harsh environments. Application: Ideal for power distribution panels and switchgear using laminated copper bars. Feature: Clamping area precisely sized at 32 x 20 mm. Business Impact: Facilitates quick, repeatable installations with standard bar dimensions, minimizing misalignment. Application: Suitable for common laminated copper bar configurations in busbar systems. Feature: Material combination—Stainless steel clamp and E-Cu, silver-plated infill. Business Impact: Delivers reliable electrical paths with high conductivity and long-term stability. Application: Supports high-current, low-impedance connections in distribution assemblies. Feature: Clear note on assembly requirement—9686.750 for busbar system connections. Business Impact: Reduces installation errors and ensures proper system integration. Application: Clear guidance for teams integrating with complete busbar architectures. Feature: Pack quantity of 1 piece per pack and standard documentation (ETIM/ECLASS codes). Business Impact: Simplifies stocking, cataloging, and procurement workflows. Application: Eases integration into ERP and MRP processes for batch orders and BOMs.
