Rittal 9686730 Clamping Plate - ETIM EC002270
Part Number: 9686730
Manufacturer
Rittal
Part number
9686730
Category
Alt Part Number
SV 9686.730
Quick Summary

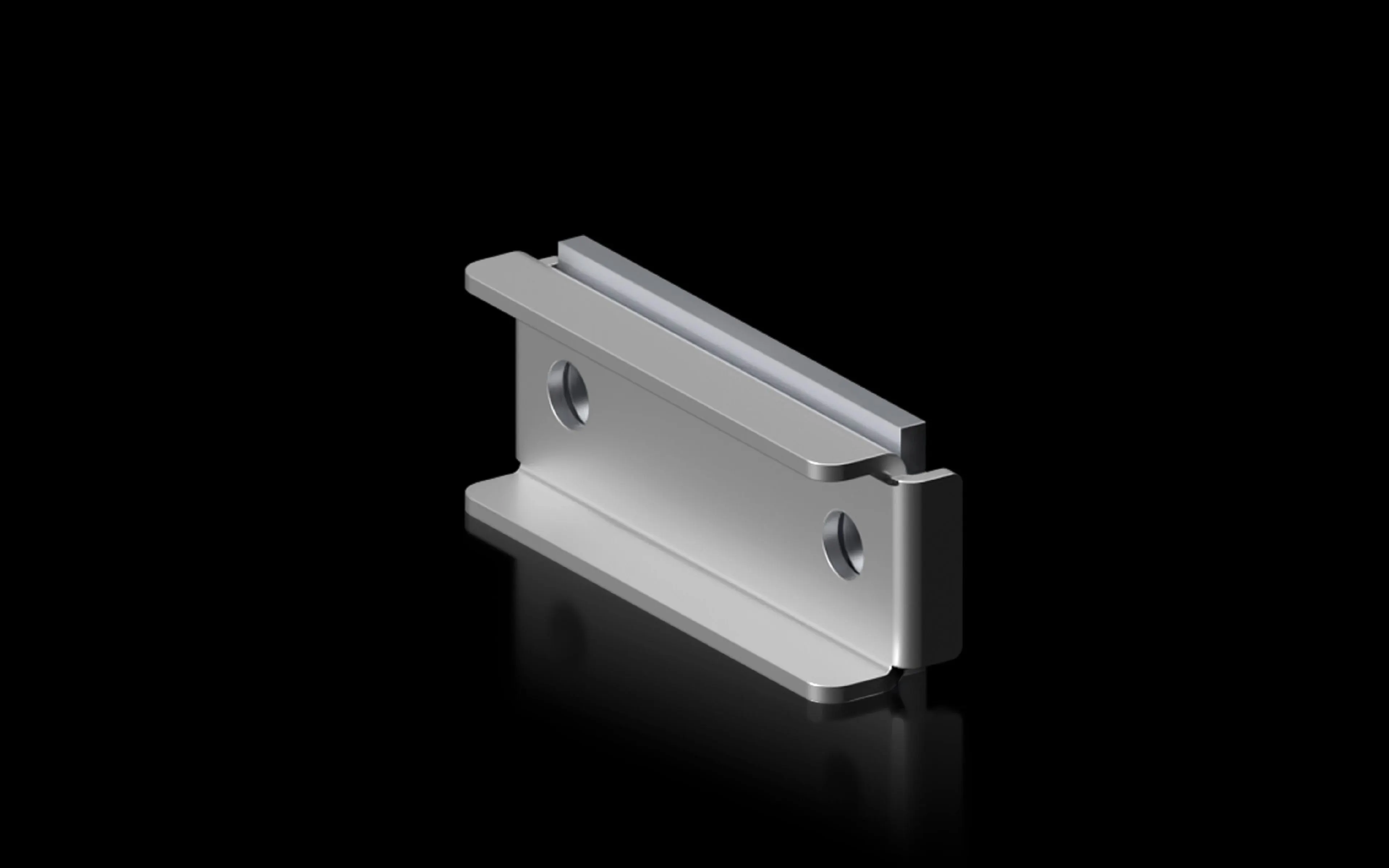

Rittal 9686730 clamping plate is designed to fasten laminated copper bars to a flat copper main or distributor busbar system. In dense switchgear and power-distribution panels, achieving a reliable connection can be compromised by vibration, thermal cycling, and corrosion. The part uses a stainless steel clamping plate with a silver-plated copper infill and is classified under ETIM EC002270 and ECLASS 27409221 to streamline procurement and interoperability. Its rugged construction supports quick installation and long service life, reducing maintenance downtime, while compatibility with the 9686.750 connector plate enables seamless full busbar integration in panel assemblies and service environments.
Product Information
Article number
SV 9686.730
Material
Clamping plate: Stainless steel | Connection infill: E-Cu, silver-plated
Note
Connection plate 9686.750 is additionally required for connecting to the busbar system
Clamping area for laminated copper bars (W x H)
63 x 20 mm
Packs of
1 pc(s).
Customs tariff number
74071000
EAN
4028177981386
ETIM 9
EC002270
ETIM 8
EC002270
ECLASS 8.0
27409221
