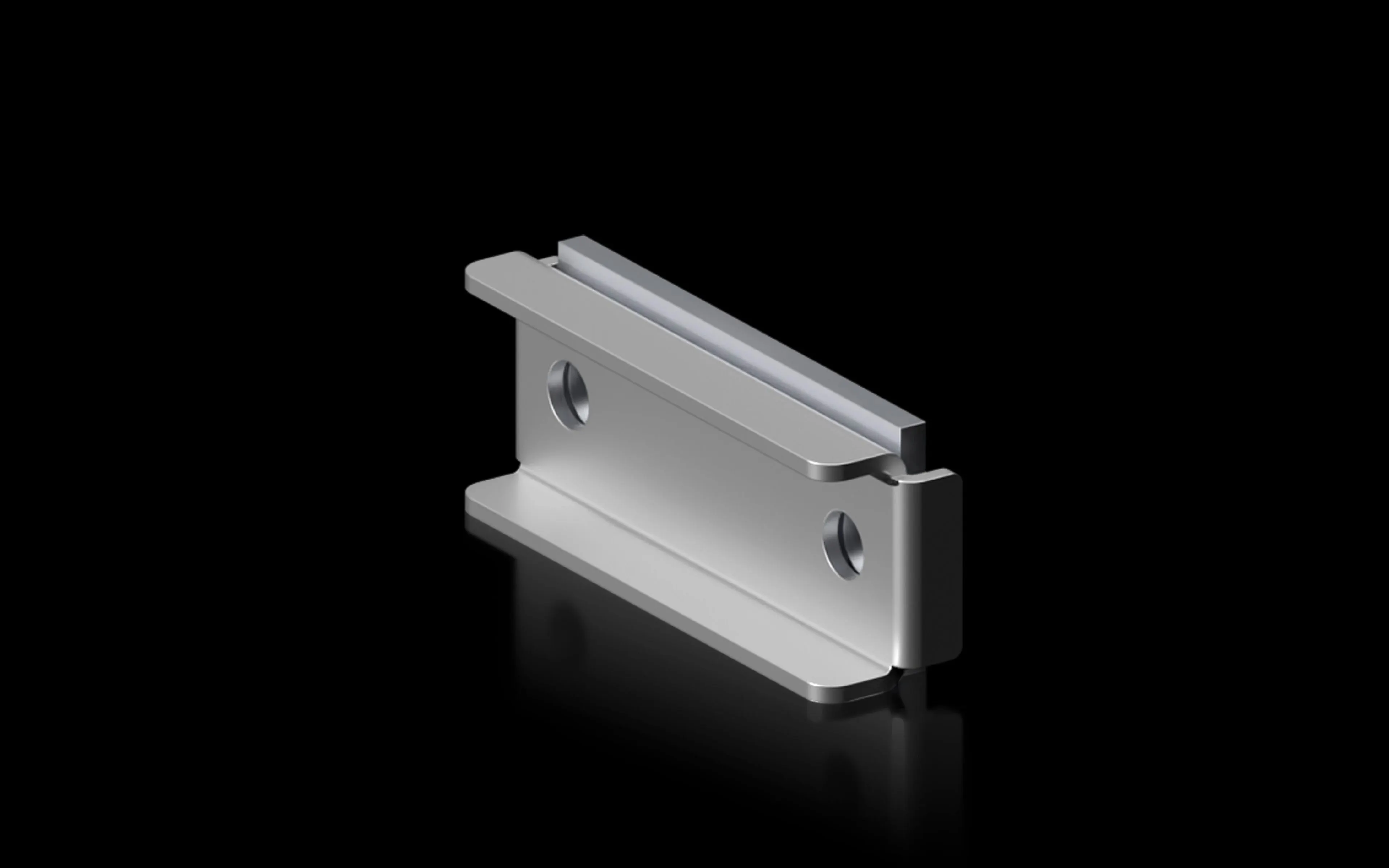

Rittal 9686740 Clamping Plate - EC002270 ETIM9
Part Number: 9686740
Manufacturer
Rittal
Part number
9686740
Category
Alt Part Number
SV 9686.740
Quick Summary
Rittal 9686740 clamping plate securely fastens laminated copper bars to busbar systems. Many engineers struggle with reliable contact quality and lengthy assembly when configuring copper busbar layouts, which can cause voltage drops and maintenance downtime. This part aligns with ETIM EC002270 and ECLASS 8.0 27409221 classifications, while the stainless steel clamp and silver-plated copper infill ensure durable, low-resistance connections. Note that connecting to the busbar system requires the 9686.750 connection plate. With a 100 × 20 mm clamping area, it accommodates standard laminated copper bars and ships as a single piece per pack, supporting manufacturing efficiency and standardized procurement across panel builds.
Product Information
Article number
SV 9686.740
Material
Clamping plate: Stainless steel | Connection infill: E-Cu, silver-plated
Note
Connection plate 9686.750 is additionally required for connecting to the busbar system
Clamping area for laminated copper bars (W x H)
100 x 20 mm
Packs of
1 pc(s).
Customs tariff number
74071000
EAN
4028177981379
ETIM 9
EC002270
ETIM 8
EC002270
ECLASS 8.0
27409221
Material integrity and conductance drive meaningful business impact. Feature: Clamping plate made of stainless steel with a silver-plated copper infill. Benefit: Improved corrosion resistance and consistently low contact resistance, reducing heat buildup and extending service life in demanding panel environments. Application: Ideal for mounting laminated copper bars in Rittal busbar systems, delivering reliable performance in power distribution cabinets. Feature: Clamping area of 100 × 20 mm. Benefit: Accommodates common laminated copper bar geometries, enabling efficient space utilization and standardized installation across fleets. Application: Suitable for compact enclosures where space is at a premium and precise alignment is critical. Feature: Single-pack 1 pc(s) packaging. Benefit: Simplifies procurement and inventory management, supporting lean maintenance strategies. Application: Streamlines stocking for OEMs and panel-build shops. Feature: Connection to busbar system via dedicated plate. Benefit: Ensures robust mechanical and electrical integration when paired with 9686.750. Application: Facilitates scalable configurations in modular power distribution. Feature: Product traceability and classifications (ETIM EC002270, ECLASS 27409221). Benefit: Enhances compliance, interoperability, and parts sourcing across multiple vendors. Application: Supports procurement and engineering data management with clear standard references.
