Rittal SV 9686.750 Busbar Connector - Copper Tin Alloy
Part Number: 9686750
Manufacturer
Rittal
Part number
9686750
Category
Alt Part Number
SV 9686.750
Quick Summary
The Rittal SV 9686.750 busbar connector enables secure laminated copper bars to be integrated with flat copper main or distributor busbars. Engineers often struggle with contact reliability and torque transmission when joining laminated copper sections, especially without a properly specified thrust piece. This connector uses E-Cu material with a copper tin alloy surface, and it carries ETIM 9 EC002270 and ETIM 8 EC002270 along with ECLASS 8.0 27409221 classifications to support robust procurement and traceability. Note that a thrust piece is additionally required for contacting the laminated bars to the busbar system. In practice, it delivers reliable power distribution, streamlined assembly, and straightforward sourcing for panel builders and OEMs.
Product Information
Extended Description

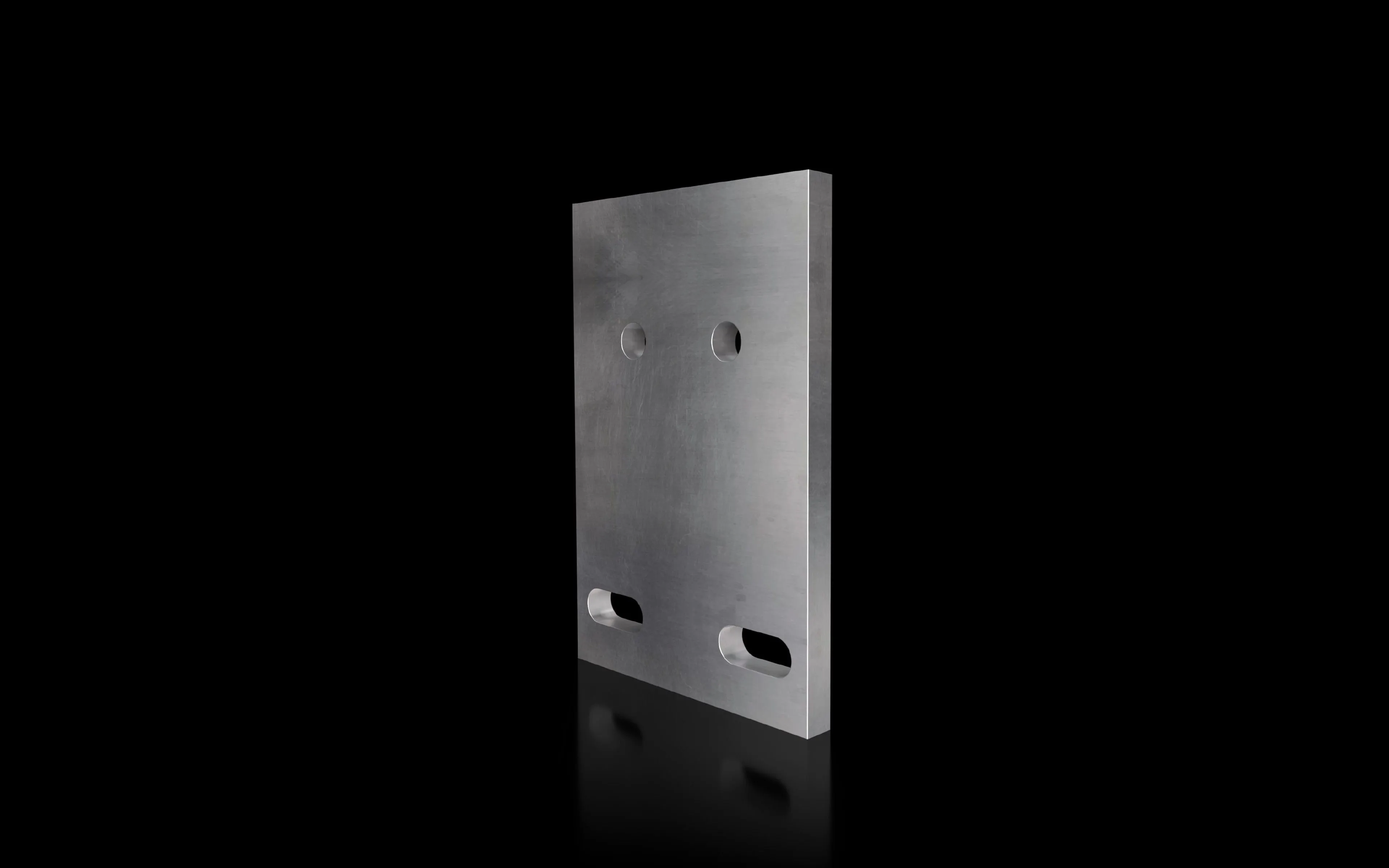

9686750 Rittal: For connecting laminated copper bars to a flat copper main or distributor busbar system.
Article number
SV 9686.750
Product description
For connecting laminated copper bars to a flat copper main or distributor busbar system.
Material
E-Cu
Surface finish
Copper tin alloy
Note
A thrust piece is additionally required for contacting the laminated copper bars to the busbar system
Packs of
1 pc(s).
Customs tariff number
74071000
EAN
4028177981362
ETIM 9
EC002270
ETIM 8
EC002270
ECLASS 8.0
27409221
Feature → Business Impact → Application: The SV 9686.750 is built from E-Cu with a copper tin alloy finish, delivering low contact resistance and high conductivity for consistent current transfer. This translates to reduced heating, improved efficiency, and longer component life in power distribution panels and switchgear assemblies; ideal for control cabinets using laminated copper bars to flat busbars. Feature → Business Impact → Application: The packaging of 1 piece per pack simplifies stocking and eliminates mix-ups in high-mix production lines, supporting lean inventory and rapid changeovers in electrical enclosures. Feature → Business Impact → Application: Clear compatibility with laminated copper bars and flat copper main/distributor busbars reduces installation time and field adjustments, enabling faster commissioning in OEM manufacturing and panel building workflows. Feature → Business Impact → Application: ETIM EC002270 and ECLASS 27409221 alignment ensures easy procurement, catalog accuracy, and seamless integration with digital sourcing systems, improving compliance and traceability across procurement teams. Feature → Business Impact → Application: A thrust piece is required for contact reliability; accounted-for accessory simplifies field installation planning and reduces rework in dense cabinet layouts, enhancing overall reliability in industrial automation environments.
