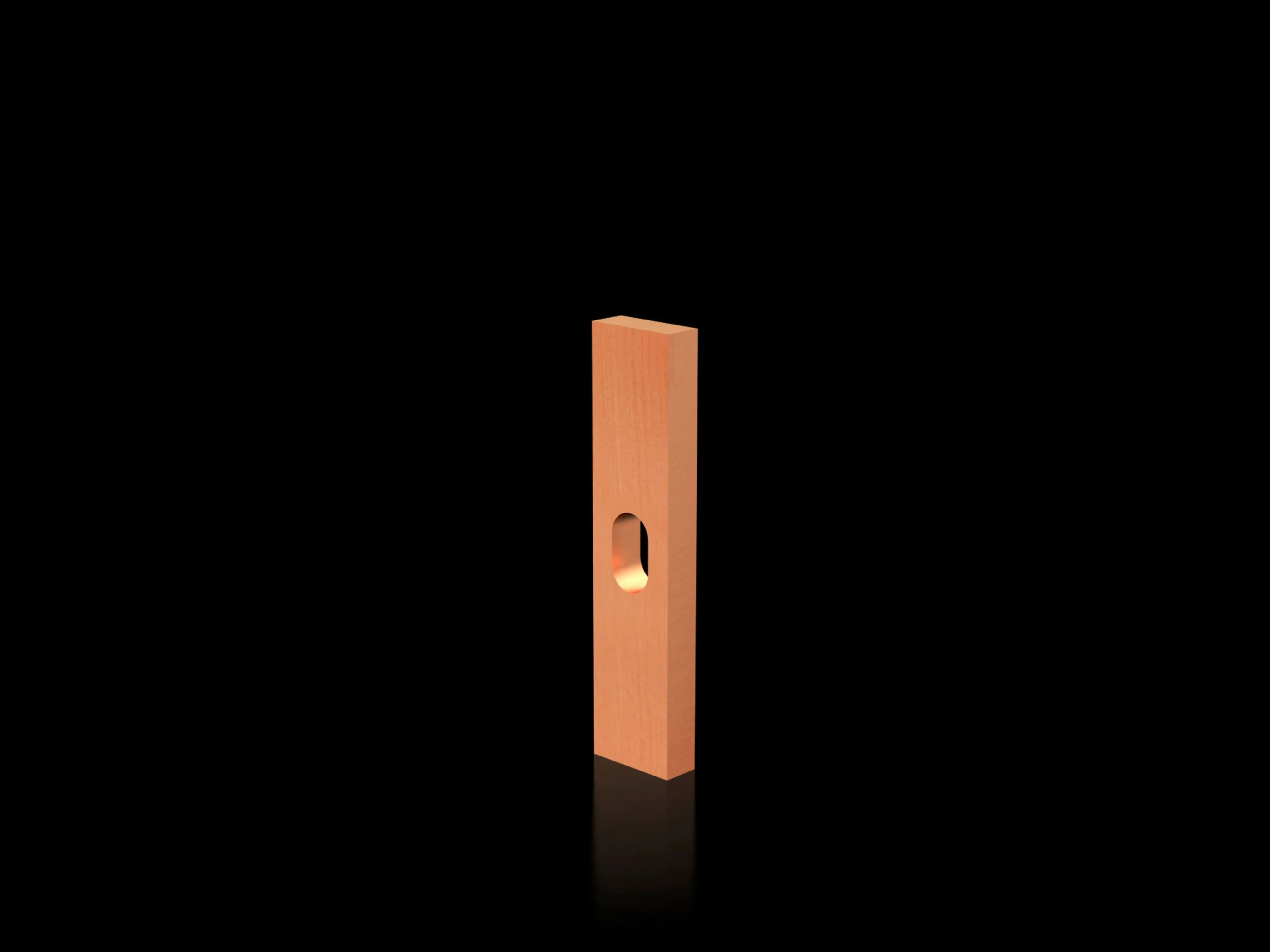

Rittal 9686820 SV filler piece - EC002270
Part Number: 9686820
Manufacturer
Rittal
Part number
9686820
Category
Alt Part Number
SV 9686.820
Quick Summary
Rittal 9686820 SV filler piece provides copper filler for busbar connections in top-mounted configurations. Without a proper filler between strands, misalignment and uneven current distribution can compromise safety and efficiency. This part aligns with ETIM EC002270 and ECLASS 27409221 standards, supporting interoperability and traceability, even though CE or IP data is not specified in the provided dataset. The filler piece is designed for four strands per phase, fitting typical busbar layouts and reducing assembly complexity. Using this copper filler improves cross-section continuity and thermal performance, helping manufacturers meet uptime targets and minimize field rework, while enabling quicker, more reliable maintenance in industrial switchgear and distribution panels.
Product Information
Extended Description
9686820 Rittal: SV filler piece for connection set. When using top-mounting components on a busbar system with 4 strands per phase, a filler piece is additionally required between the strands.
Article number
SV 9686.820
Product description
When using top-mounting components on a busbar system with 4 busbars per phase, a filler piece is additionally required between the bars.
Material
E-Cu
Length
110 mm
Cross-section
25 mm x 10 mm
Packs of
3 pc(s).
Weight/pack
0.678 kg
Copper weight (kg per piece)
0.076
Customs tariff number
85369001
EAN
4028177947283
ETIM 7.0
EC002270
ECLASS 8.0
27409221
Product description
SV filler piece for connection set. When using top-mounting components on a busbar system with 4 strands per phase, a filler piece is additionally required between the strands.
The SV 9686.820 filler piece is manufactured from E-Cu with a precise 25 mm x 10 mm cross-section, delivering a low-resistance current path and stable thermal performance for four-strand, top-mounted busbar configurations. This translates into improved reliability, reduced heat buildup, and fewer mid-install changes, enabling faster commissioning in control cabinets and switchgear. With a length of 110 mm, it matches standard spacing and facilitates clean, orderly busbar layouts, enhancing serviceability and future upgrades without rework. Packaged as 3 pieces per pack and weighing 0.678 kg per pack, it simplifies inventory management and on-site logistics. Copper weight per piece at 0.076 kg provides robust conductivity without unnecessary bulk, supporting high-current applications. Compatibility with ETIM EC002270 and ECLASS 27409221 ensures seamless procurement and ERP integration. The solution is designed for top-mounting components and standard busbar spans, making installation straightforward and repeatable across multiple panels.
Get a Quick Quote for a Rittal 9686820
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686820?
Enquire Now
FAQs
Install the filler piece between the strands of the top-mounted busbar configuration, ensuring a snug fit to maintain spacing. The piece matches a 110 mm length with a 25 mm x 10 mm cross-section and is provided in packs of three for rapid replenishment and standardized assembly. Verify correct alignment before final torqueing of adjacent components to maintain consistent electrical contact.
Material is E-Cu with a length of 110 mm and a cross-section of 25 mm by 10 mm. Each piece carries a copper weight of 0.076 kg, with a pack weight of 0.678 kg (3 pieces). These specifications support low resistance paths, stable current distribution, and predictable thermal performance in four-strand-per-phase, top-mounted busbar layouts.
Ideal for industrial switchgear, distribution panels, and any busbar system requiring a between-bar filler in four-strand-per-phase configurations. Its 110 mm length and 25x10 mm cross-section fit standard top-mount spacing, simplifying retrofit and new installations while preserving mechanical integrity and electrical continuity.
The product aligns with ETIM 7.0 EC002270 and ECLASS 8.0 27409221 classifications, supporting interoperability and procurement workflow. No CE, IP, or SIL data are provided in the current dataset, so confirm your compliance requirements if those certifications are mandatory for your project.
Using the SV filler piece reduces field rework by ensuring proper spacing and predictable current paths, which lowers the risk of arcing and hotspots. The 3-piece pack streamlines stocking and maintenance, enabling faster replacements during routine service and enabling consistent assembly across multiple panels, ultimately reducing downtime and labor costs.
