Rittal SV 9686.830 Screw M10x35 mm - Hardware M10x35
Part Number: 9686830
Manufacturer
Rittal
Part number
9686830
Category
Alt Part Number
SV 9686.830
Quick Summary
Rittal SV 9686.830 screw M10x35 mm for enclosure assembly securely joins connection brackets and connector kits used in electrical cabinets. The right fastener is essential to prevent loosening and misalignment during vibration, chemical exposure, or thermal cycling; this part helps avoid costly rework and field failures. While the data does not list explicit SIL, IP, or CE certifications, these hardware components are typically manufactured to meet general standards for enclosure hardware in industrial settings and commonly used with CE-compliant systems. Choosing this screw design reduces assembly time and ensures compatible thread length with M10 bolts and 35 mm depth. This aligns with your procurement goals of reliability, supply chain resilience, and reduced maintenance costs.
Product Information
Extended Description
9686830 Rittal: SV screw M10x35 mm
Article number
SV 9686.830
Product description
For connecting components such as connection brackets and connection kits.
Material
Sheet steel, zinc-plated

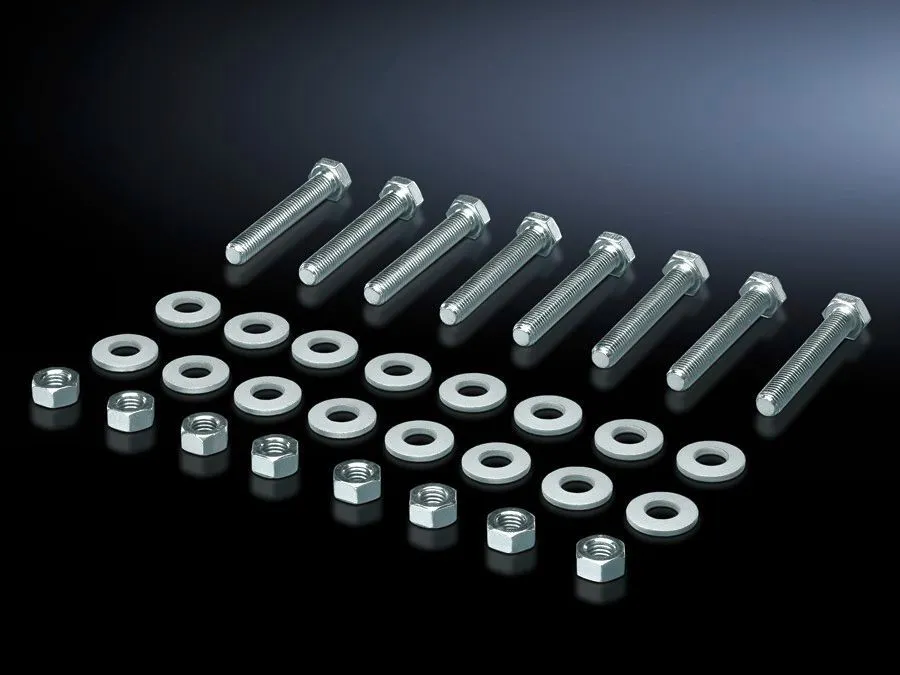

Supply includes
8 nuts and 16 washers.
Dimensions
Thread: M10 | Thread length: 35 mm
Packs of
8 pc(s).
Customs tariff number
73181552
EAN
4028177981508
ECLASS 8.0
27400613
Product description
SV screw M10x35 mm
Feature: M10x35 mm thread length provides precise engagement with standard M10 hardware. Business Impact: reduces installation time and ensures consistent clamping force across connection brackets. Application: ideal for 3-pole and 4-pole connector kits in Rittal enclosures. Feature: Sheet steel, zinc-plated finish offers corrosion resistance in electrical cabinets exposed to varied environments. Business Impact: extends service life, lowers maintenance costs, and protects critical connections. Application: suitable for outdoor and indoor enclosure installations with exposure to moisture or pollutants. Feature: Supply includes 8 nuts and 16 washers, improving inventory control and reducing sourcing steps. Business Impact: minimizes field delays and procurement complexity. Application: supports quick on-site assembly and uniform fastening. Feature: Pack size of 8 pieces enables consistent replenishment and standardization across projects. Business Impact: simplifies procurement planning and reduces stockouts. Application: scalable for multi-door enclosures and panel assemblies. Feature: M10x35 mm screw design delivers compatibility with common brackets and connector kits. Business Impact: ensures reliable assembly, reduces rework, and supports standardization across product lines. Application: ideal for connecting components in 3-pole and 4-pole configurations with Rittal hardware ecosystems.
Get a Quick Quote for a Rittal 9686830
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686830?
Enquire Now
FAQs
Yes. SV 9686.830 is designed for connecting components such as connection brackets and connector kits, including configurations for both 3-pole and 4-pole systems. The M10x35 mm thread and 35 mm length ensure proper engagement with standard brackets, reducing misalignment and installation time. For best results, verify bracket hole patterns match your enclosure design and confirm that the fastener length accommodates any additional washers or spacers present in your kit.
The supply includes 8 nuts and 16 washers, packaged to support multiple assembly points per enclosure. This composition simplifies on-site provisioning and helps maintain consistent torque distribution across fasteners. Plan for eight fastener sets per eight-pack, which aligns with common bracket and connector-kit layouts in Rittal enclosures.
The screws are made from sheet steel and zinc-plated for enhanced corrosion resistance. This finish is suitable for typical indoor and controlled environments in electrical cabinets, offering improved durability against moisture and contaminants while maintaining cosmetic integrity over time.
Hardware like SV 9686.830 contributes to enclosure integrity when used with proper brackets and kits, but the IP rating of the overall system depends on the enclosure, gaskets, and fittings. While the screw itself is zinc-plated steel, verify that all assembly interfaces, seals, and the enclosure body meet your specific IP and environmental protection requirements in accordance with your regional standards.
Using a standardized M10x35 fastener with included nuts and washers reduces procurement complexity, minimizes on-site misfits, and shortens assembly time. The combination of reliable material (sheet steel, zinc plating) and uniform pack sizes supports faster commissioning, lowers field maintenance, and improves project predictability, contributing to lower lifecycle costs on industrial automation installations.
