Rittal SV 9686.845 M10x45 Bolt – Zinc-plated for brackets and kits
Part Number: 9686845
Manufacturer
Rittal
Part number
9686845
Category
Alt Part Number
SV 9686.845
Quick Summary
Rittal SV 9686.845 bolt connects brackets and connector kits inside enclosure assemblies. Designers often face misalignment and looser fittings in tight spaces, which can lead to vibration-induced loosening or maintenance delays. Note: no CE, IP, or SIL data is provided in the spec—verify applicable certifications for your region and application. This zinc-plated M10 bolt in sheet steel delivers reliable fastening with corrosion resistance, simplifying procurement and improving consistency across assembly workflows. By standardizing on this component, you can streamline sourcing and reduce field-fit issues, while aligning with existing enclosure hardware ecosystems for scalable, repeatable installations.
Product Information
Extended Description
9686845 Rittal: SV bolt M10 x 45, for connecting components, such as connection bracket and connector kit.
Article number
SV 9686.845
Product description
For connecting components such as connection brackets and connection kits.
Material
Sheet steel, zinc-plated
Supply includes

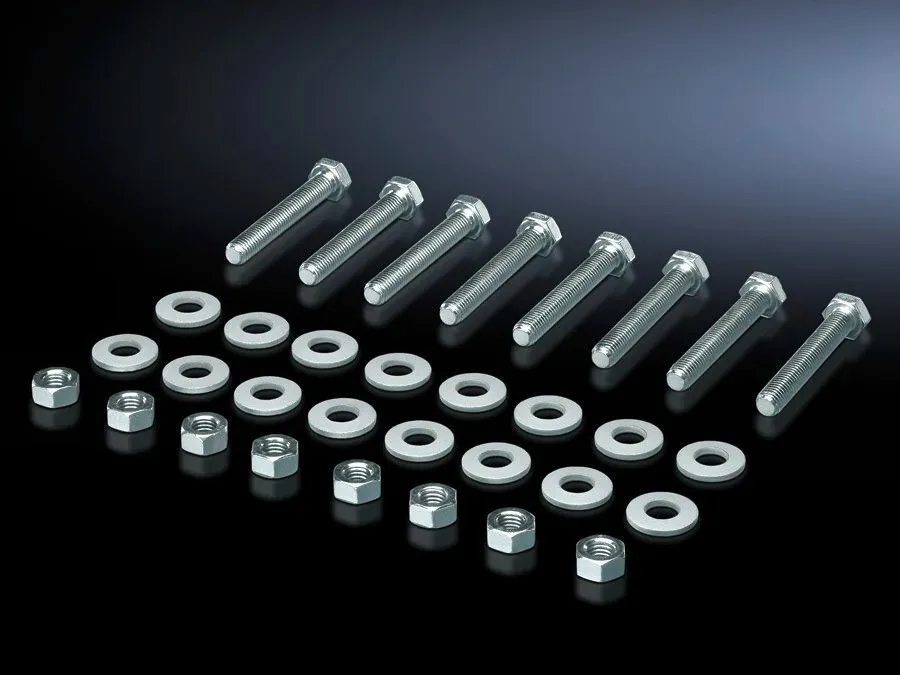

8 nuts and 16 washers.
Dimensions
Thread: M10 | Thread length: 45 mm
Packs of
8 pc(s).
Weight/pack
0.448 kg
PCF per pack (cradle-to-gate)
1.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73181900
EAN
4028177950245
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV bolt M10 x 45, for connecting components, such as connection bracket and connector kit.
Feature → The SV bolt uses an M10 thread with a 45 mm thread length, enabling secure connection between components such as connection brackets and connector kits. Business Impact → Ensures robust mechanical integrity in enclosure assemblies, reducing risk of loosening under vibration and enabling predictable maintenance intervals. Application → Ideal for mounting within electrical enclosures that rely on standardized bracket-and-kit connectivity. Feature → It is made of sheet steel and zinc-plated, delivering corrosion resistance and durability in demanding environments. Business Impact → Extends service life in industrial settings, lowering replacement costs and downtime. Application → Suitable for high-humidity or dusty installations where fastener longevity matters. Feature → The supply includes 8 nuts and 16 washers per pack, with 8 pieces per pack, and a weight of 0.448 kg. Business Impact → Speeds up installation and ensures consistent hardware sets across projects, reducing sourcing time and potential misfits. Application → Fits standard bracket kits and connector assemblies used in 3-pole and 4-pole configurations. Feature → The product aligns with established classification standards (ETIM EC001900 and ECLASS 27400613) and carries a customs tariff number 73181900, assisting procurement data accuracy and compliance. Business Impact → Improves cataloging, BOM accuracy, and regulatory traceability. Application → Integrates smoothly with digital PLM and ERP workflows for parts management. Feature → The bolt’s zinc plating offers corrosion resistance and compatibility with the included hardware, enabling reliable performance in enclosure installations where space is constrained and fastener accessibility is limited. Business Impact → Reduces maintenance events and supports long-term reliability. Application → Particularly beneficial in retrofit projects or standard enclosure upgrades where fastener compatibility with brackets and kits is required.
