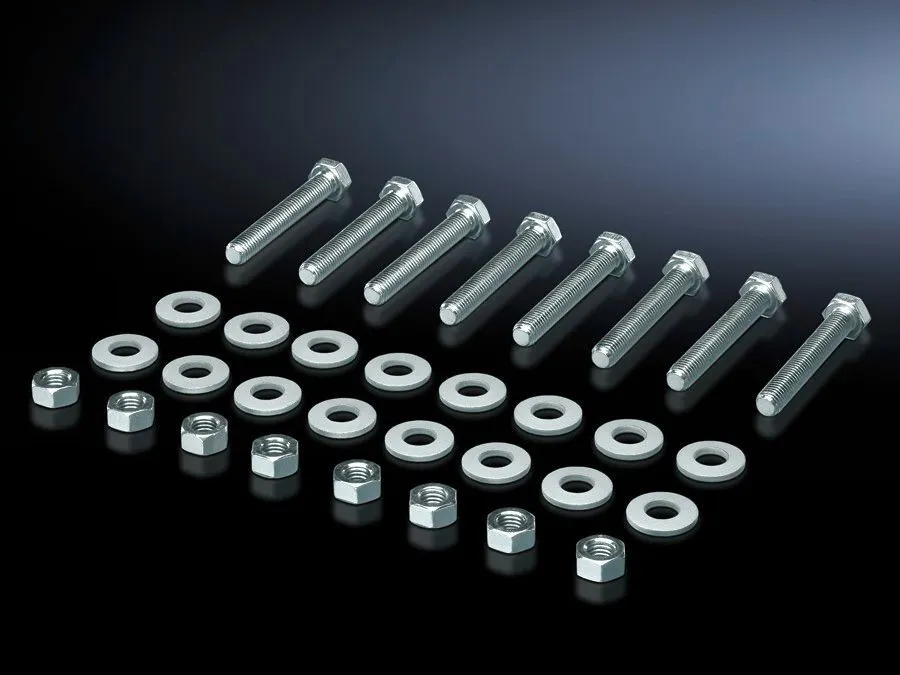

Rittal SV9686.870 Screw M10x75 - Sheet steel, zinc-plated
Part Number: 9686870
Manufacturer
Rittal
Part number
9686870
Category
Alt Part Number
SV 9686.870
Quick Summary
Rittal SV9686.870 Screw M10x75 is the essential mounting screw for connecting brackets and connector kits in enclosure assemblies. If you routinely battle misalignment, stripping threads, or scattered hardware during panel builds, this screw offers a predictable, robust fastening solution. In regulated environments, look for CE-compatible components and IP-rated enclosures; while this item uses standard M10 threads, verify your project’s certification needs. Its zinc-plated sheet steel provides lasting corrosion resistance, while the 75 mm thread length supports secure engagement with multiple brackets, reducing rework. With eight nuts and sixteen washers per supply and compatibility with 3-pole and 4-pole connector kits, it helps streamline procurement and field installs.
Product Information
Extended Description
9686870 Rittal: SV screw M10x75 mm
Article number
SV 9686.870
Product description
For connecting components such as connection brackets and connection kits.
Material
Sheet steel, zinc-plated
Supply includes
8 nuts and 16 washers.
Dimensions
Thread:Â M10 | Thread length:Â 75 mm
Packs of
8 pc(s).
Customs tariff number
73181552
EAN
4028177981485
ECLASS 8.0
27400613
Product description
SV screw M10x75 mm
Feature: M10x75 screw specification with compatibility for 3-pole and 4-pole connector kits. Business impact: ensures precise alignment and a robust fastening, minimizing rework and call-backs during panel installations. Application: ideal for connecting connection brackets within Rittal enclosures and similar systems. Feature: Material and finish – sheet steel, zinc-plated. Business impact: enhances corrosion resistance and durability in control cabinets, extending service life and reducing replacement cycles. Application: suitable for indoor and semi-exposed enclosures in industrial environments. Feature: Supplied with 8 nuts and 16 washers. Business impact: accelerates assembly and reduces separate purchases, improving install times and inventory control. Application: fast, reliable mounting across multiple panels per project. Feature: Packaging – packs of 8 pieces. Business impact: lowers stocking costs and simplifies procurement for maintenance teams and OEMs. Application: convenient for multi-point installations across panel arrays. Feature: Certifications/standards context – ECLASS 8.0 code 27400613 and related identifiers. Business impact: enables seamless data integration with MRO systems and helps with compliance and traceability. Application: procurement and engineering workflows in panel manufacturing and systems integration.
Get a Quick Quote for a Rittal 9686870
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9686870?
Enquire Now
FAQs
Yes. The SV9686.870 is designed for connecting components such as connection brackets and connector kits, including 3-pole and 4-pole configurations. With M10x75 threading and a zinc-plated sheet steel body, it aligns with standard enclosure hardware to streamline mounting and reduce misfit issues during panel builds.
Key specs include a thread size of M10 with a 75 mm thread length, material sheet steel that is zinc-plated, and an eight-nut plus sixteen-washer supply. These features provide consistent torque, strong resistance to corrosion, and long-term durability in enclosure assemblies, leading to fewer maintenance events and steadier performance in high-vibration environments.
This screw is ideal for Rittal enclosure panel mounting and for projects requiring reliable bracket and connector-kit interlocks. Its M10x75 form factor suits standard connector pitches, while the zinc-plated finish offers corrosion resistance suitable for factory floors, control cabinets, and industrial automation installations where durable fastening is critical.
The part is identified by article number SV 9686.870 with ECLASS 8.0 code 27400613 and a Customs Tariff number of 73181552, plus EAN 4028177981485. Users should verify project-specific requirements for CE marking, IP ratings, or SIL standards where applicable, as these depend on the broader assembly and regulatory context.
Including 8 nuts and 16 washers per supply and sold in packs of 8, this screw reduces fastener substitutions and speeds up installations. The standardized M10x75 size improves interchangeability across multiple panels, lowering spare-part inventory levels and downtime, while delivering a measurable return on investment through faster assemblies and simplified procurement.
