Rittal 9760342 Direct Air Cooling System - IP54
Part Number: 9760342
Manufacturer
Rittal
Part number
9760342
Category
Alt Part Number
CS 9760.342
Quick Summary
Rittal 9760342 Direct Air Cooling System cools multifunctional enclosures by directing filtered ambient air inside to offset high heat losses. In compact MFCs, heat buildup threatens reliability and uptime, making efficient cooling essential. IP 54 protection and ETIM 9 EC000320 classification support reliable rugged operation and procurement alignment, while the system’s roof integration minimizes vandalism risk. This approach delivers improved enclosure uptime, energy-efficient cooling, and simplified maintenance, aligning with industrial automation best practices and procurement needs.
Product Information
Extended Description

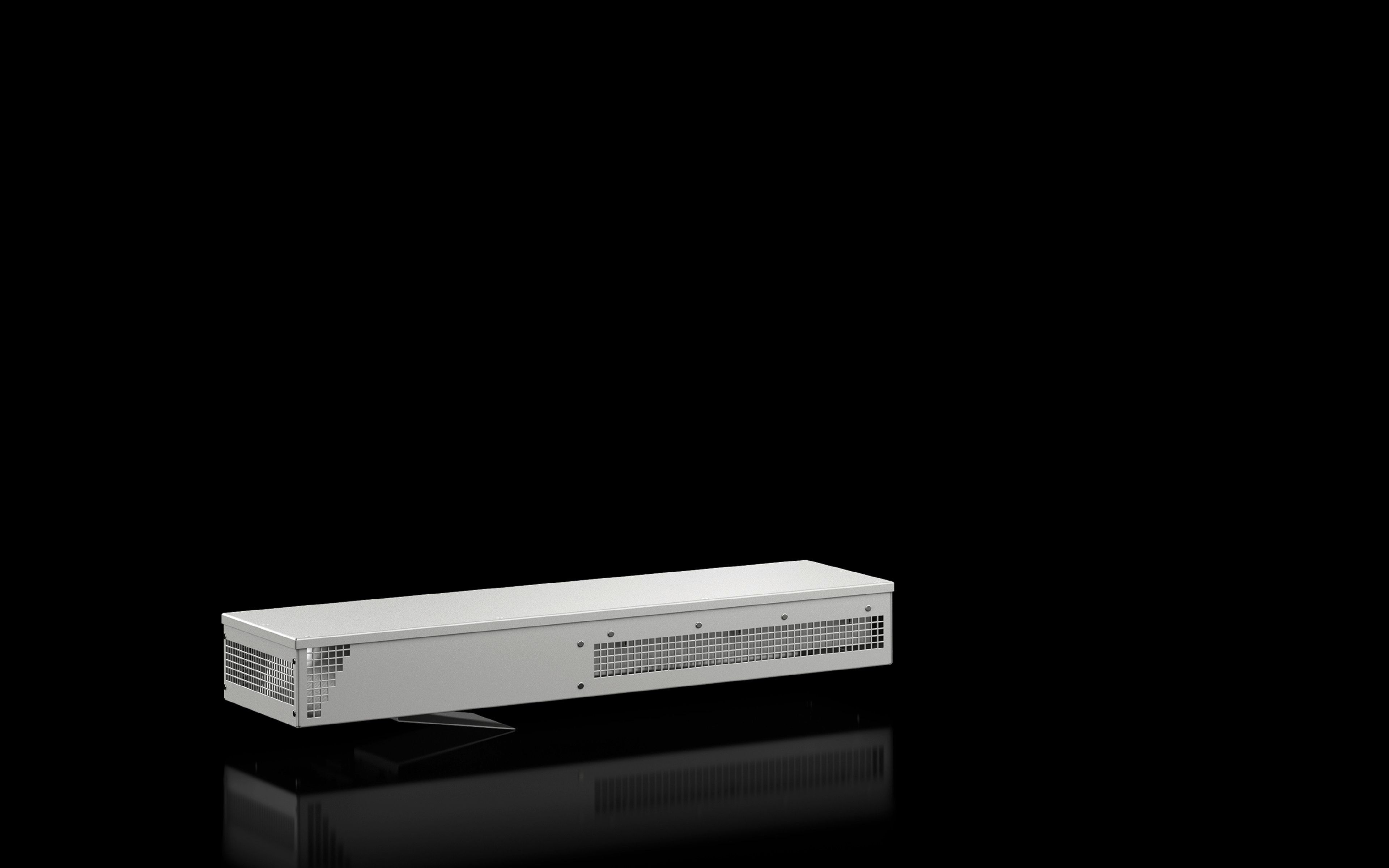

9760342 Rittal: CS Direct Air Cooling system (DAC), for MFG 8, 12, 18, 48 V DC, WHD: 875 x 125 x 313 mm
Article number
CS 9760.342
Material
Enclosure: Aluminium AlMg3
Colour
RAL 7035
Supply includes
12-pole WAGO connector
Specific thermal output
110 W/K
Rated operating voltage
48 V (DC)
Rated current max.
per fan with DC: 1.8 A
Type of electrical connection
12-pole WAGO connector
Dimensions
Width: 875 mm | Height: 125 mm | Depth: 313 mm
Note
Characteristic curve and alarms configurable via PC software CS200. The software is available in the download area on the Rittal website. The connection cable must be provided by the customer.
No. of fans
1
Pre-fuse
Miniature circuit-breaker/fuse: 6 A
Temperature control
Microcontroller with USB connection
Operating temperature range
-33 °C...65 °C
IP protection category to IEC 60 529
IP 54
To fit Model No.
9751.908
To fit
MFC 8
Packs of
1 pc(s).
Weight/pack
8 kg
Customs tariff number
84145915
ETIM 9
EC000320
Product description
CS Direct Air Cooling system (DAC), for MFG 8, 12, 18, 48 V DC, WHD: 875 x 125 x 313 mm
Roof-mounted Direct Air Cooling system is fully integrated into the enclosure, which reduces vandalism exposure and simplifies installation in tight cabinet spaces. The design delivers 110 W/K of thermal output from a single 48 V DC fan, providing targeted cooling where it matters most and helping to prevent hot spots in MFCs. A 12-pole WAGO connector supports straightforward electrical integration with standard control cabinets, while a compact footprint (W 875 x H 125 x D 313 mm) fits in limited roof sections, enabling scalable installations. The unit operates across a wide temperature range (-33 to 65 C) and carries an IP54 rating for dust and splash protection, improving reliability in harsh environments. The included USB-connected microcontroller and CS200 PC software enable remote parameter tuning and alarm configuration, reducing on-site service time and improving fault visibility. With 1 fan per module and a 6 A pre-fuse, system protection and predictable performance help justify ROI in high-heat applications. The DAC is designed to fit MFC models and to work with standard 12-pole bus connections, which minimizes custom wiring and accelerates project timelines. Industry professionals benefit from documented product descriptions, ETIM alignment, and a robust support ecosystem that simplifies compliance and maintenance planning.
