Rittal CS Mounting Plates 9765092 for Enclosures - EC000213
Part Number: 9765092
Quick Summary
Rittal CS Mounting Plates are depth-adjustable mounting levels for CS New Basic enclosures used in industrial cabinets. Engineers often struggle with precise alignment and depth positioning when configuring mounting levels in tight CS enclosures, leading to misfits and rework. This solution aligns with ETIM 7.0 EC000213 and ECLASS 8.0 27409216, supporting interoperability across catalogs and suppliers. By leveraging aluminium 3 mm plates and a 25 mm pitch, it delivers repeatable mounting configurations, while simplifying procurement and installation workflows for enhanced project velocity and reliability.
Product Information
Extended Description

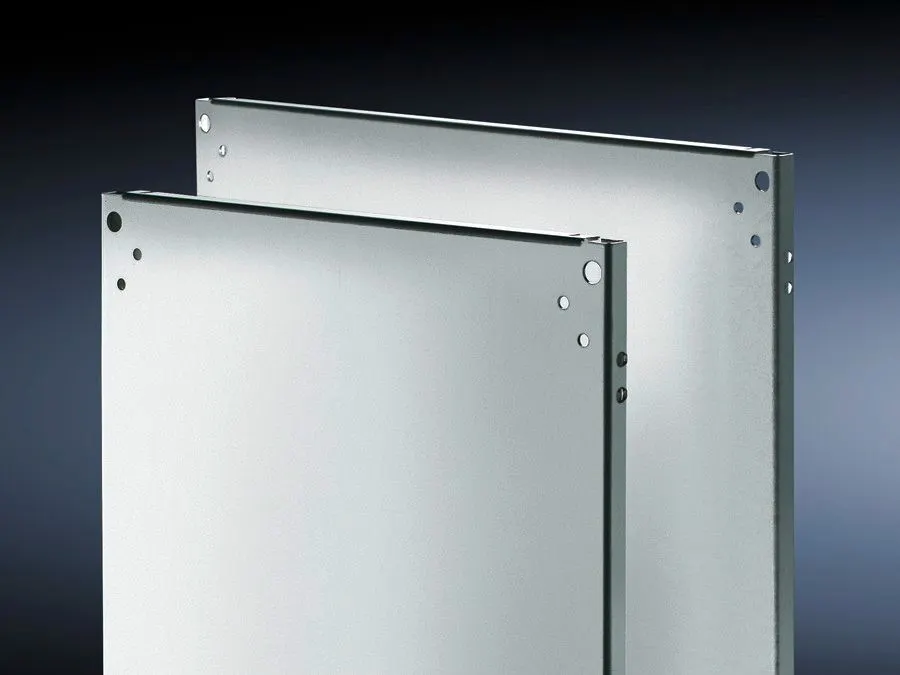

9765092 Rittal: CS Mounting plates for CS New Basic enclosure, WH: 600x1200 mm
Article number
CS 9765.092
Product description
For the configuration of mounting levels. The mounting plates are depth-adjustable on a 25 mm pitch pattern.
Material
Aluminium, 3 mm
Supply includes
Assembly parts
Note
For an enclosure width of 1200 mm, partial installation with one or two 600 mm wide mounting plates is possible.
Dimensions
Width:Â 499 mm | Height:Â 1,096 mm
To fit
Enclosure type:Â CS basic enclosures | Width:Â = 600 mm | Height:Â = 1,200 mm
Packs of
1 pc(s).
Weight/pack
11.3 kg
Customs tariff number
76169990
EAN
4028177216846
ETIM 7.0
EC000213
ECLASS 8.0
27409216
Product description
CS Mounting plates for CS New Basic enclosure, WH: 600x1200 mm
Feature depth-adjustable mounting levels on a 25 mm pitch pattern → Business Impact precise alignment reduces field rework and accelerates panel assembly → Application CS New Basic enclosure (600x1200 mm) installations in industrial cabinets. Feature aluminium, 3 mm construction → Business Impact robust, lightweight panels with corrosion resistance → Application long-lasting mounting solutions in harsh environments. Feature supply includes assembly parts → Business Impact minimized sourcing steps and faster start-up → Application rapid deployment in control panels and machine dashboards. Feature dimensions fit CS basic enclosures with width 600 mm and height 1,200 mm, plus notes on partial installation → Business Impact flexible configuration and scalable layouts → Application partial deployment using one or two 600 mm plates. Feature packs of 1 pc(s) and weight per pack 11.3 kg → Business Impact predictable shipping and budgeting → Application efficient logistics and repeatable stock planning. Feature compatibility with ETIM 7.0 EC000213 and ECLASS 8.0 27409216 → Business Impact streamlined catalog integration and cross-vendor procurement → Application enterprise-grade procurement workflows.
Get a Quick Quote for a Rittal 9765092
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9765092?
Enquire Now
FAQs
To install, first verify the enclosure dimensions (600x1200 mm) and confirm the 25 mm pitch for mounting levels. Attach the aluminium plates using the included assembly parts, align depth positions precisely, and secure with standard fasteners. Verify alignment across all mounting levels before wiring to ensure clean, repeatable configurations.
Key specs include aluminium, 3 mm plate thickness; overall width of 499 mm and height of 1,096 mm; depth adjustable on a 25 mm pitch; packed as 1 piece per pack with a weight of 11.3 kg. Designed to fit CS basic enclosures with a 600 mm by 1,200 mm footprint, and supplied with assembly parts.
Yes. These plates are specifically designed to fit CS basic enclosures with a 600 mm width and 1,200 mm height. For flexible layouts, partial installation with one or two 600 mm wide mounting plates is possible, enabling tailored configurations without compromising stability.
The product aligns with ETIM 7.0 EC000213 and ECLASS 8.0 27409216 standards, supporting catalog interoperability and cross-vendor procurement. While it does not list SIL, CE, or IP ratings explicitly, adherence to ETIM and ECLASS helps ensure consistent technical descriptions across catalogs.
Using these plates reduces procurement steps since assembly parts are included, shortening setup times and minimizing field adjustments. The depth-adjustable 25 mm pitch enables rapid, repeatable mounting configurations across multiple enclosures, leading to faster project completion, lower labor costs, and improved overall equipment uptime.
