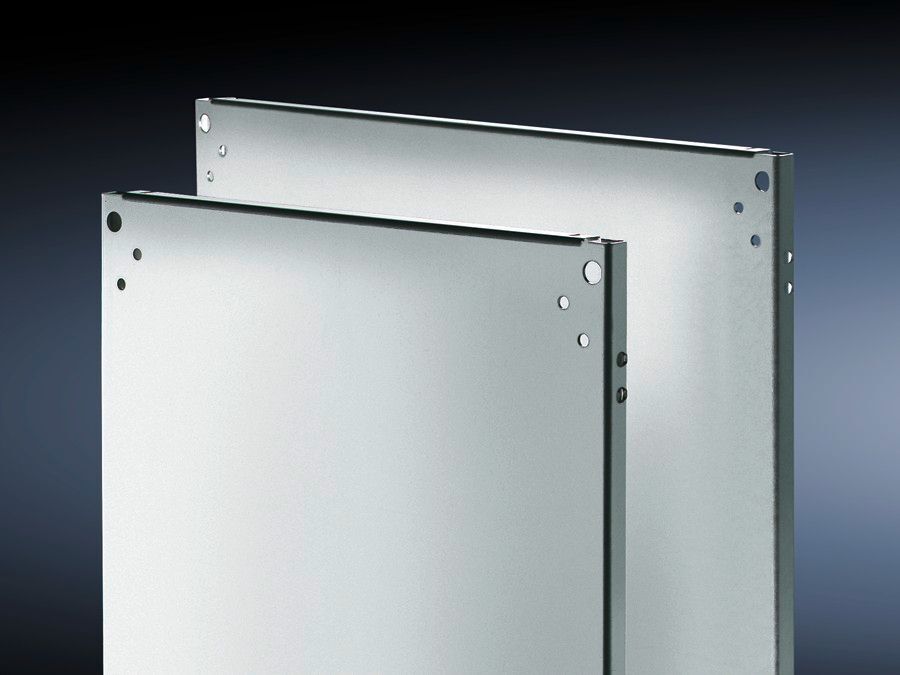

Rittal CS 9765.095 Mounting Plates - Aluminium 3 mm, 25 mm pitch
Part Number: 9765095
Quick Summary
Rittal CS 9765.095 mounting plates enable depth-adjustable mounting levels for CS New Basic enclosures. In practice, installers often confront mounting level misalignment and limited flexibility within 800x1200 mm frames. These plates are aluminium, 3 mm thick, with depth adjustment on a 25 mm pitch and come with assembly parts to speed setup. They fit CS basic enclosures 800x1200 mm and support flexible configurations, including partial installations with 600 mm wide plates when needed. For procurement, this accessory simplifies installation workflows, reduces BOM complexity, and helps maintain mechanical integrity across CS family products.
Product Information
Extended Description
9765095 Rittal: CS Mounting plates for CS New Basic enclosure, WH: 800x1200 mm
Article number
CS 9765.095
Product description
For the configuration of mounting levels. The mounting plates are depth-adjustable on a 25 mm pitch pattern.
Material
Aluminium, 3 mm
Supply includes
Assembly parts
Note
For an enclosure width of 1200 mm, partial installation with one or two 600 mm wide mounting plates is possible.
Dimensions
Width:Â 699 mm | Height:Â 1,096 mm
To fit
Enclosure type:Â CS basic enclosures | Width:Â = 800 mm | Height:Â = 1,200 mm
Packs of
1 pc(s).
Weight/pack
15 kg
Customs tariff number
76169990
EAN
4028177216877
ETIM 7.0
EC000213
ECLASS 8.0
27409216
Product description
CS Mounting plates for CS New Basic enclosure, WH: 800x1200 mm
Depth-adjustable mounting levels provide flexible rail positioning, improving alignment accuracy and reducing rework for complex wiring layouts. The aluminium 3 mm construction delivers robust stiffness while keeping weight manageable, supporting heavy or tall components without warping or flex. With a 25 mm pitch, you gain precise, repeatable spacing that adapts to evolving layouts and equipment changes in CS New Basic enclosures. The compact dimensions (Width 699 mm, Height 1,096 mm) ensure a snug fit inside the CS basic enclosure family (800x1200 mm), enabling clean cable routes and improved access for maintenance. Supplying assembly parts with the plates shortens install time and reduces supplier variance in your BOM. Note that partial installation is possible on 1200 mm wide enclosures using one or two 600 mm wide plates, offering cost-efficient customization for larger cabinets. The included data points (EAN, ETIM, ECLASS) facilitate fast procurement and ERP integration, while maintaining compatibility with standard CS accessories.
Get a Quick Quote for a Rittal 9765095
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9765095?
Enquire Now
FAQs
The CS 9765.095 plates are designed for CS New Basic enclosures, specifically the 800x1200 mm format. Each pack contains a single mounting plate with a width of 699 mm and a height of 1,096 mm, supplied with assembly parts to simplify installation and ensure precise rail positioning within CS basic frames.
Use the 25 mm pitch to set mounting levels at precise intervals that match your components. Align the plate with enclosure rails before tightening to avoid binding or misalignment. The aluminium 3 mm plate provides adequate rigidity; ensure that all mounting points are within the CS enclosure’s support structure to maintain cable management clearances.
Yes. For an enclosure width of 1200 mm, partial installation with one or two 600 mm wide mounting plates is possible. This enables cost-effective customization in larger cabinets, allowing you to tailor mounting density while preserving stability and service access.
The product data lists ETIM 7.0 EC000213 and ECLASS 8.0 27409216 as standard classifications, with the EAN 4028177216877. While explicit SIL, CE, or IP ratings are not shown in the provided data, the CS family typically adheres to industry-standard practices; verify your project’s regulatory requirements during procurement and installation.
Each pack contains 1 mounting plate (weight 15 kg) with assembly parts, simplifying BOM planning and reducing assembly time. The 25 mm pitch provides flexible configuration for future changes, while compatibility with CS New Basic 800x1200 enclosures minimizes part variety. The included EAN and classification data supports seamless ERP integration and accurate stock management.
