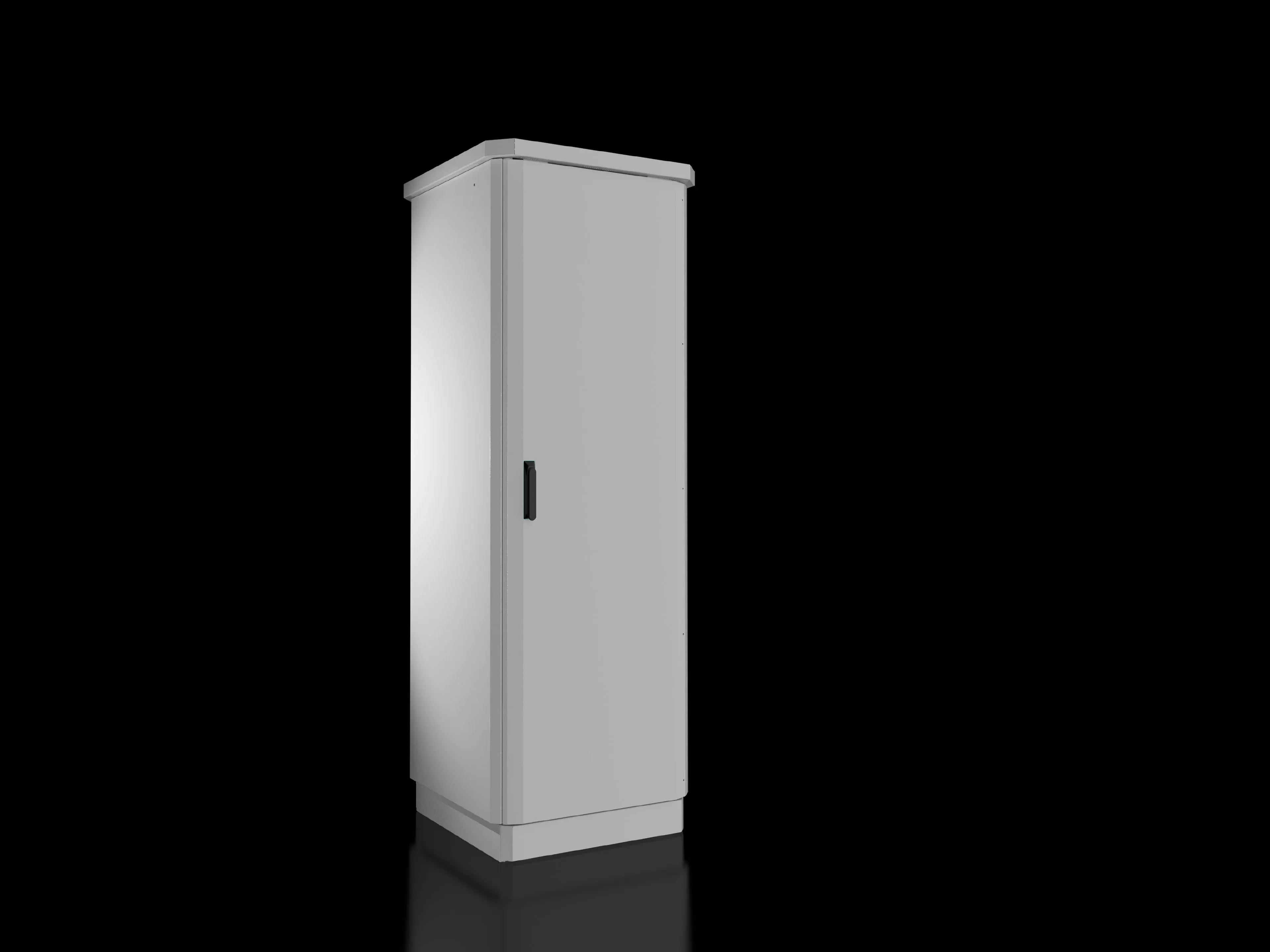

Rittal CS 9774.510 Enclosure WHD - IP55 IK10
Part Number: 9774510
Manufacturer
Rittal
Part number
9774510
Alt Part Number
CS 9774.510
Quick Summary
Rittal CS 9774.510 Enclosure WHD is an outdoor enclosure designed to shelter electrical and automation equipment in harsh environments. In the field, weather ingress, corrosion and downtime challenge projects and extend timelines. It delivers IP55 weather protection and IK10 impact resistance, with fully double-walled exterior and earthing between external and internal walls. The enclosure is preconfigured for interior TS 8 frame installation, featuring 25 mm system punchings in the roof and base, plus a rain canopy to shield cabling. This combination reduces field wiring effort, extends service life, and supports scalable industrial infrastructure projects.
Product Information
Extended Description
9774510 Rittal: CS TopTec Enclosure WHD: 600x1800x600 mm closed
Article number
CS 9774.510
Design
Without cut-out
Product description
Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides. Side panels, rear panel and door fully double-walled on the outside, the entire TS 8 frame is available for interior installation.
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Double-walled outdoor enclosure, fully preconfigured | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Side panels left and right | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear
Dimensions
Width: 600 mm | Height: 1,800 mm | Depth: 600 mm
IP protection category to IEC 60 529
IP 55
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Basic material
Aluminium
Packs of
1 pc(s).
Weight/pack
88 kg
EAN
4028177963139
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS TopTec Enclosure WHD: 600x1800x600 mm closed
Outdoor durability and ready-to-deploy design provide immediate protection for sensitive electronics and cabinets at exposed sites, reducing on-site assembly time and weather-related risk. The 600x1800x600 mm footprint supports standard industrial control layouts while maintaining compact, space-efficient installation. Stainless steel TS 8 frame with aluminium panels delivers corrosion resistance and long-term stability, lowering maintenance costs in harsh environments. IP55 protection and IK10 impact resistance offer reliable ingress protection and physical security for critical assets, minimizing unplanned downtime. The 25 mm system punchings in the roof and base frame, along with two mounting levels, enable flexible wiring and fast integration of field devices. The rain canopy shields cabling and connectors, reducing moisture-related issues and extending service life. All components are preconfigured for fast deployment, supporting scalable projects and streamlined procurement for industrial infrastructure.
Get a Quick Quote for a Rittal 9774510
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9774510?
Enquire Now
FAQs
The CS 9774.510 WHD enclosure offers IP55 ingress protection and IK10 impact resistance, safeguarding equipment from dust, water ingress and mechanical shocks in outdoor environments.
The enclosure roof and base frame incorporate 25 mm system punchings, with vertical sections providing two mounting levels, enabling straightforward wiring, modular accessory mounting, and easy interior configuration for TS 8 frames.
Yes, it is designed for outdoor use with a rain canopy and double-walled panels. The packing weight is 88 kg per pack, and the overall footprint is 600x1800x600 mm, suitable for outdoor electrical infrastructure.
Panels are aluminium with UV-resistant powder coating, while the rain canopy is also aluminium. Routine inspection for fasteners and seals, plus cleaning to remove debris, maintains appearance and performance without affecting protective ratings.
Preconfigured with a TS 8 frame for interior installation and including gland plates, the CS TopTec WHD enables rapid deployment, straightforward wiring, and scalable upgrades for industrial control and automation cabinets.
