Rittal CS 9781.660 Twin-Walled Side Panel - IP55
Part Number: 9781660
Manufacturer
Rittal
Part number
9781660
Alt Part Number
CS 9781.660
Quick Summary
CS 9781.660 side panel is a twin-walled aluminium panel for CS Toptec enclosures. In harsh environments, ingress, corrosion and frequent maintenance challenge uptime; this side panel delivers robust protection with a durable finish. It meets IP55 ingress protection and NEMA 3R protection, while conforming to ETIM EC002524 classifications for European procurement. For integrators and procurement teams, the combination of powder-coated UV-resistant coating, quick screw-fastened installation, and included earthing and roof parts translates to reduced downtime, predictable lead times, and lower lifecycle costs for industrial enclosure projects.
Product Information
Extended Description

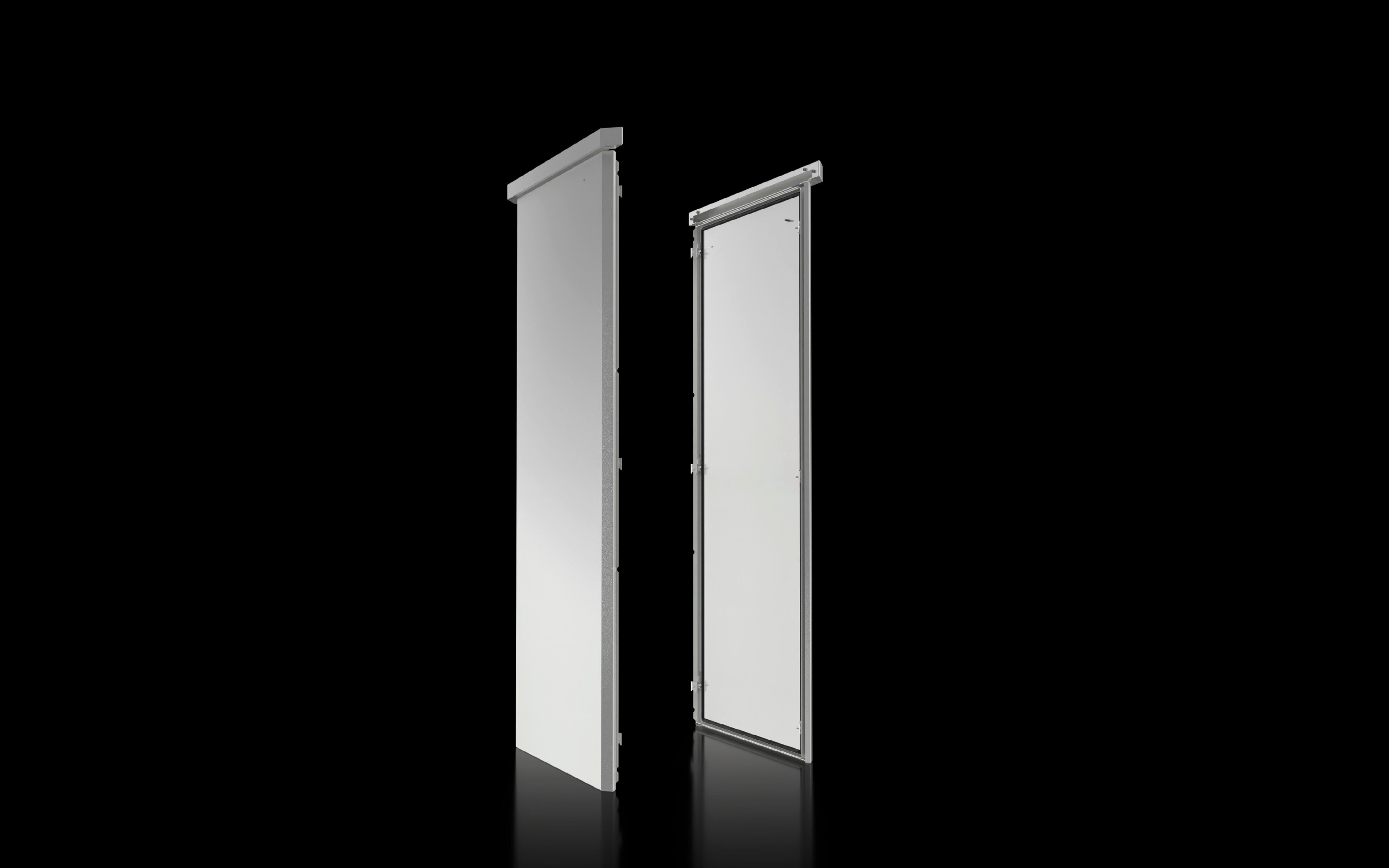

9781660 Rittal: CS side panel, twin-walled, for HxD: 1600x600 mm, aluminium AlMg3
Article number
CS 9781.660
Material
Aluminium AlMg3
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Side panels | Roof side parts | Including earthing and assembly parts
To fit
Enclosure type:Â CS Toptec, bayable | Height:Â = 1,600 mm | Depth:Â = 600 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 3R
Basic material
Aluminium
Packs of
2 pc(s).
EAN
4028177986084
ETIM 9
EC002524
ETIM 8
EC002524
ECLASS 8.0
27182101
Product description
CS side panel, twin-walled, for HxD: 1600x600 mm, aluminium AlMg3
Feature: Twin-walled aluminium AlMg3 construction → Business Impact: Enhanced rigidity, reduced flex, and improved enclosure integrity under vibration and thermal cycling → Application: CS Toptec systems in manufacturing and process automation. Feature: IP55 protection and NEMA 3R compatibility → Business Impact: Superior dust, moisture, and corrosion resistance, enabling outdoor or harsh indoor use without frequent panel replacement → Application: Outdoor installations, factory floors near Washdown areas, and unconditioned environments. Feature: Powder-coated UV-resistant polyester surface → Business Impact: Long-term colour stability and corrosion resistance, lowering repainting and maintenance costs over the system life → Application: Exterior enclosure facades and visibility-critical installations. Feature: Supplied with side panels, roof side parts, earthing and assembly parts → Business Impact: Streamlined procurement and faster installation, reducing on-site downtime and part mismatch → Application: Rapid deployment in CS Toptec projects with standardized kits. Feature: Screw-fastened design and bayable compatibility → Business Impact: Simple field replacement and modular upgrades without special tools → Application: Spares strategy and scalable enclosure configurations for growing automation lines.
Get a Quick Quote for a Rittal 9781660
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9781660?
Enquire Now
FAQs
The CS 9781.660 comes as a two-piece pack with side panels, roof side parts, plus earthing and assembly parts. For installation, align the panels with the enclosure frame, fasten using the included screws, connect the earthing path, and attach the roof side components. The kit is designed to minimize downtime and ensure a secure seal against dust and moisture.
Yes, the panel meets IP55 protection, providing protection against dust ingress and low-pressure water jets, which reduces contamination and maintenance frequency. The NEMA 3R compatibility further supports outdoor and protected outdoor spaces, translating to longer service life with fewer replacement cycles.
The panel is manufactured from aluminium AlMg3 and finished with a powder-coated UV-resistant polyester layer in RAL 7035. This combination delivers high rigidity, corrosion resistance, and colour stability, even in exposure to sunlight and harsh industrial cleaners.
The CS 9781.660 is designed to fit CS Toptec enclosures with a height of 1,600 mm and depth of 600 mm, bayable for modular configurations. Each pack includes two side panels along with roof side parts and assembling components, enabling ready-to-install spares for scaling projects.
By providing durable IP55/NEMA 3R protection, UV-stable coating, and a quick-install screw-fastened design, this panel reduces maintenance visits, lowers replacement frequency, and speeds commissioning. The included earthing/assembly parts also minimizes on-site procurement errors and inventory needs for upgrade projects.
