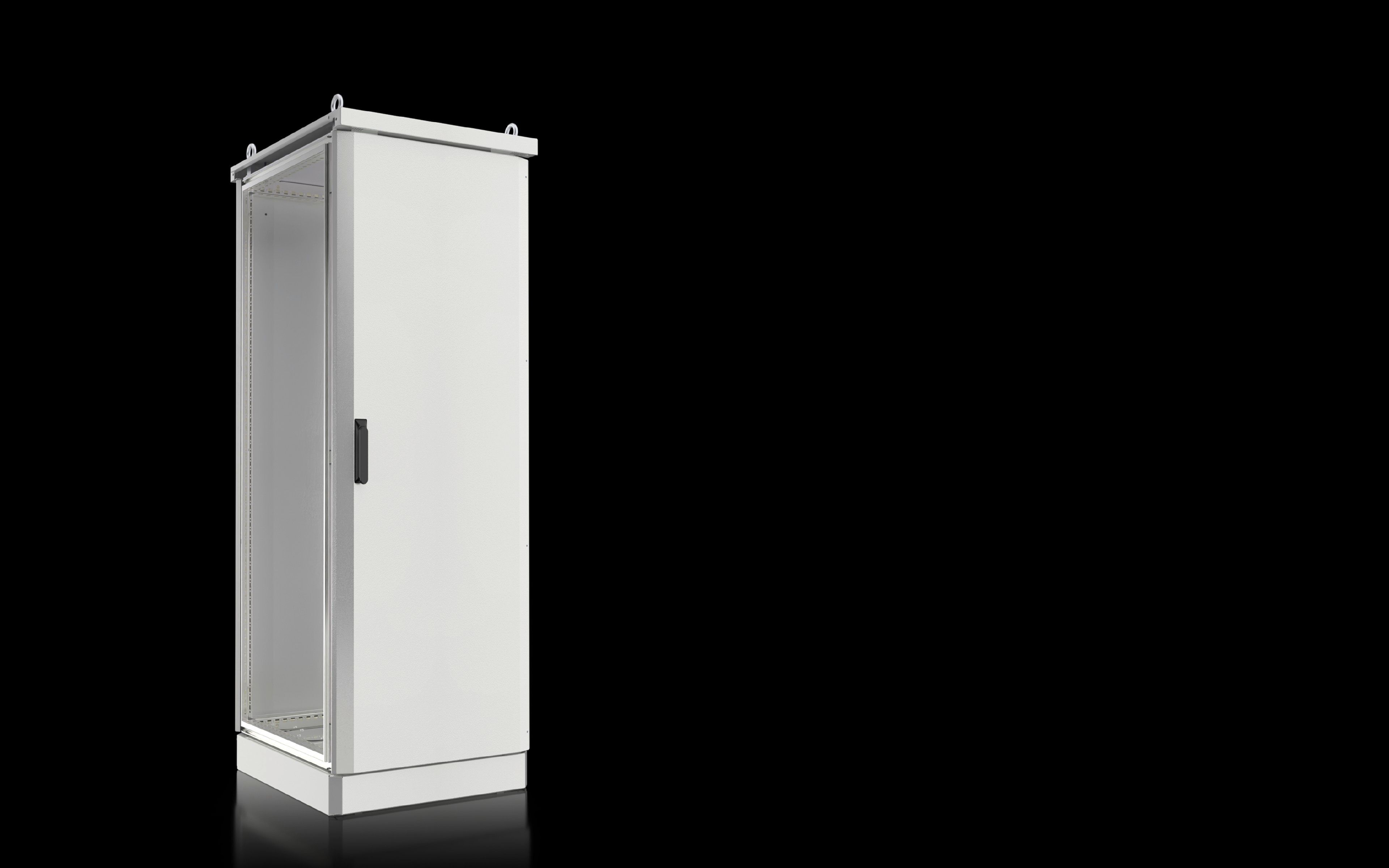

Rittal 9781666 Outdoor Bayable Enclosure - IP55/IK10
Part Number: 9781666
Manufacturer
Rittal
Part number
9781666
Alt Part Number
CS 9781.666
Quick Summary
Outdoor bayable enclosure from Rittal protects equipment in harsh outdoor environments while enabling flexible interior installation. Users often struggle with modularity, weatherproofing, and mounting options in limited spaces. It delivers IP55 ingress protection, NEMA 3R enclosure protection, and IK10 impact resistance to keep critical equipment safe across climates. Designed around a stainless-steel enclosure frame and baying-ready structure, it supports scalable layouts and rapid assembly. The unit ships with a rain canopy, gland plates, and a secure 4-point lock for reliable perimeter sealing, plus UV-resistant powder coating for long service life.
Product Information
Extended Description
9781666 Rittal: CS Toptec, bayable, WxHxD: 600x1600x600 mm
Article number
CS 9781.666
Design
for baying | Without cut-out
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Bayable, twin-walled outdoor enclosure | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear | Door hinged on the right, may be swapped to the left
Dimensions
Width:Â 600 mm | Height:Â 1,600 mm | Depth:Â 600 mm
Dimensions
Overall height:Â 1,745 mm | Rain canopy height:Â 45 mm | Height base/plinth:Â 100 mm
Number of doors
1
Lock
Lock version:Â 4-point locking | Number of locks:Â 1 | Lock insert:Â BJ20027
Gland plate
Size:Â 2 | Qty.:Â 2
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 3R
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Packs of
1 pc(s).
EAN
4028177986138
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
CS Toptec, bayable, WxHxD: 600x1600x600 mm
Feature: Bayable, twin-walled outdoor enclosure with a 100 mm base/plinth and a single door enables modular growth and efficient interior installation. Business Impact: Reduces floor space while allowing staged capacity, cutting retrofit time and capital expenditure. Application: Ideal for outdoor control cabinets in telecom and outdoor industrial automation where phased upgrades are common. Feature: Enclosure frame in stainless steel 1.4301 (AISI 304) with aluminium panels and base trim plus a UV-resistant powder-coated finish. Business Impact: Delivers corrosion resistance and durable aesthetics, lowering maintenance cycles and repaint costs. Application: Coastal and harsh-weather environments require long service life with minimal upkeep. Feature: Dimensions WxHxD 600x1600x600 mm, overall height 1,745 mm with a 100 mm base, and 25 mm system punchings in roof/base. Business Impact: Facilitates precise planning, easy cabling, and flexible mounting levels. Application: System integrators can align components and accessories efficiently. Feature: Rain canopy included, base/plinth with gland plates, and 4-point locking with BJ20027 insert. Business Impact: Enhances weather sealing, secure access, and simplified cable management. Application: Outdoor installations with reliable perimeter protection and versatile door orientation. Feature: IP55 protection, NEMA 3R, IK10 rated construction. Business Impact: Supports regulatory compliance and safer operation in demanding environments. Application: Industrial outdoor use across manufacturing, utility, and process automation.
