Rittal 9781686 Bayable Outdoor Enclosure - IP55

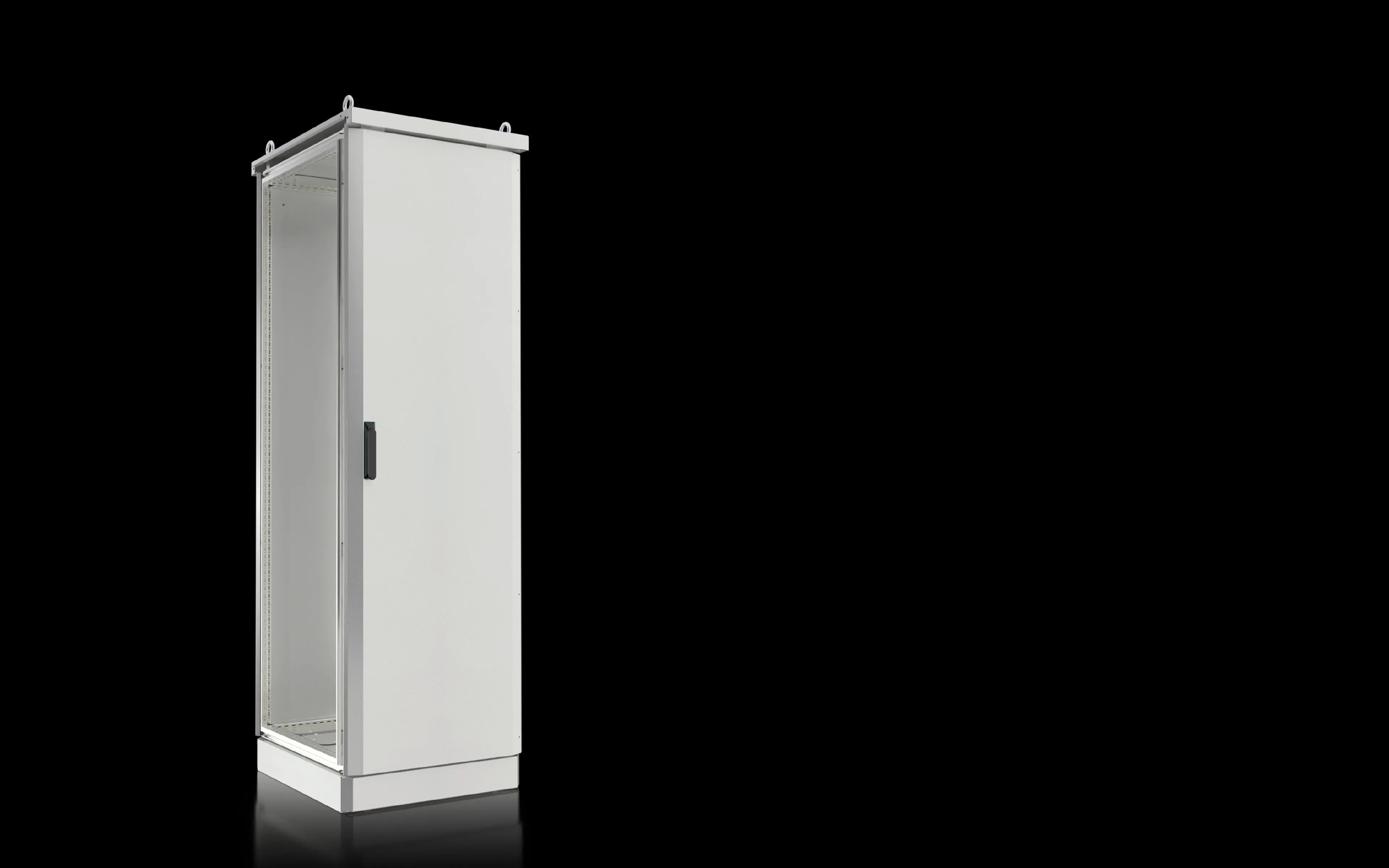

Bayable, twin-walled outdoor enclosure with a 100 mm base/plinth and a weather canopy is designed for scalable installations and rapid interior reconfiguration. The enclosure frame includes 25 mm system punchings in the roof and base frame, plus vertical sections with two mounting levels, enabling precise component placement and clean cable routing. This modular approach reduces commissioning time and eliminates retrofits when control panels are expanded or relocated. In practice, it supports future-proofing for automation lines where equipment layouts evolve without interrupting production. Material choices reinforce long-term reliability: the enclosure frame uses stainless steel 1.4301 (AISI 304) for corrosion resistance, while panels and base/plinth trims are aluminium AlMg3 for lightweight strength. The rain canopy made from aluminium adds protection against weathering, and the powder-coated, UV-resistant finish in RAL 7035 maintains appearance and surface integrity in outdoor environments. All enclosure panels are doubled and earthed to improve fault safety and reduce stray currents. The result is a robust shell that withstands outdoor substation duty, outdoor cabinets near loading docks, and industrial plant exteriors. Gland plates are included (two of size 2) to simplify cable ingress and gland routing, while the door is hinged on the right and can be swapped to the left to suit site constraints. The door stays and profile half-cylinder lock BJ 20027 combine with 4-point locking to provide secure access in dusty environments. The enclosure’s IP 55 and NEMA 3R ratings offer regulatory compliance across regions, while IK10 ensures protection against substantial impacts encountered in heavy industrial corridors. Compatibility with 25 mm punchings supports integration with customer control systems and third-party devices using standard DIN rails or mounting profiles. The compact 600x1800x600 mm footprint fits a range of installations from outdoor control cabinets to equipment enclosures adjacent to machines, enabling efficient space utilization. Finally, the bayable concept reduces total cost of ownership by simplifying spare parts, reducing downtime during configuration changes, and extending service life through a durable, weatherproof enclosure.
