Rittal CS 9781.828 Enclosure - IP55, NEMA 3R, IK10
Part Number: 9781828
Manufacturer
Rittal
Part number
9781828
Alt Part Number
CS 9781.828
Quick Summary
Rittal CS 9781.828 outdoor enclosure protects control cabinets in harsh environments. Projects often struggle with weather ingress, corrosion, and interior layouts that complicate installation. This bayable unit delivers IP55 protection, NEMA 3R suitability, and IK10 impact resistance, ensuring reliable outdoor operation even in demanding sites. Its modular baying capability, stainless-steel frame, and aluminum panels support flexible interior installation and future expansion, helping reduce retrofit time and lifecycle costs. The durable powder-coated surface resists UV and weathering, while the right-hand hinged door can swap to the left to fit site constraints. For engineers and procurement teams, this enclosure provides dependable protection with long service life and predictable maintenance needs, aligning with automotive, process, and factory automation workflows.
Product Information
Extended Description
9781828 Rittal: CS Toptec, bayable, WxHxD: 800x2000x800 mm
Article number
CS 9781.828
Design
for baying | Without cut-out
Material
Enclosure frame: Stainless steel 1.4301 (AISI 304) | Enclosure panels and base/plinth trim: Aluminium, AlMg3 | Rain canopy: Aluminium
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Bayable, twin-walled outdoor enclosure | Enclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levels | Front door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027 | Rear panel | Rain canopy | Base/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear | Door hinged on the right, may be swapped to the left
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 800 mm
Dimensions
Overall height: 2,145 mm | Rain canopy height: 45 mm | Height base/plinth: 100 mm
Number of doors
1
Lock
Lock version: 4-point locking | Number of locks: 1 | Lock insert: BJ20027
Gland plate
Size: 2 | Qty.: 2
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 3R
IK Code
IK10
Note
All enclosure panels are doubled and earthed (external wall onto internal wall)
Packs of
1 pc(s).
EAN
4028177986091
ECLASS 8.0
27180101
Product description

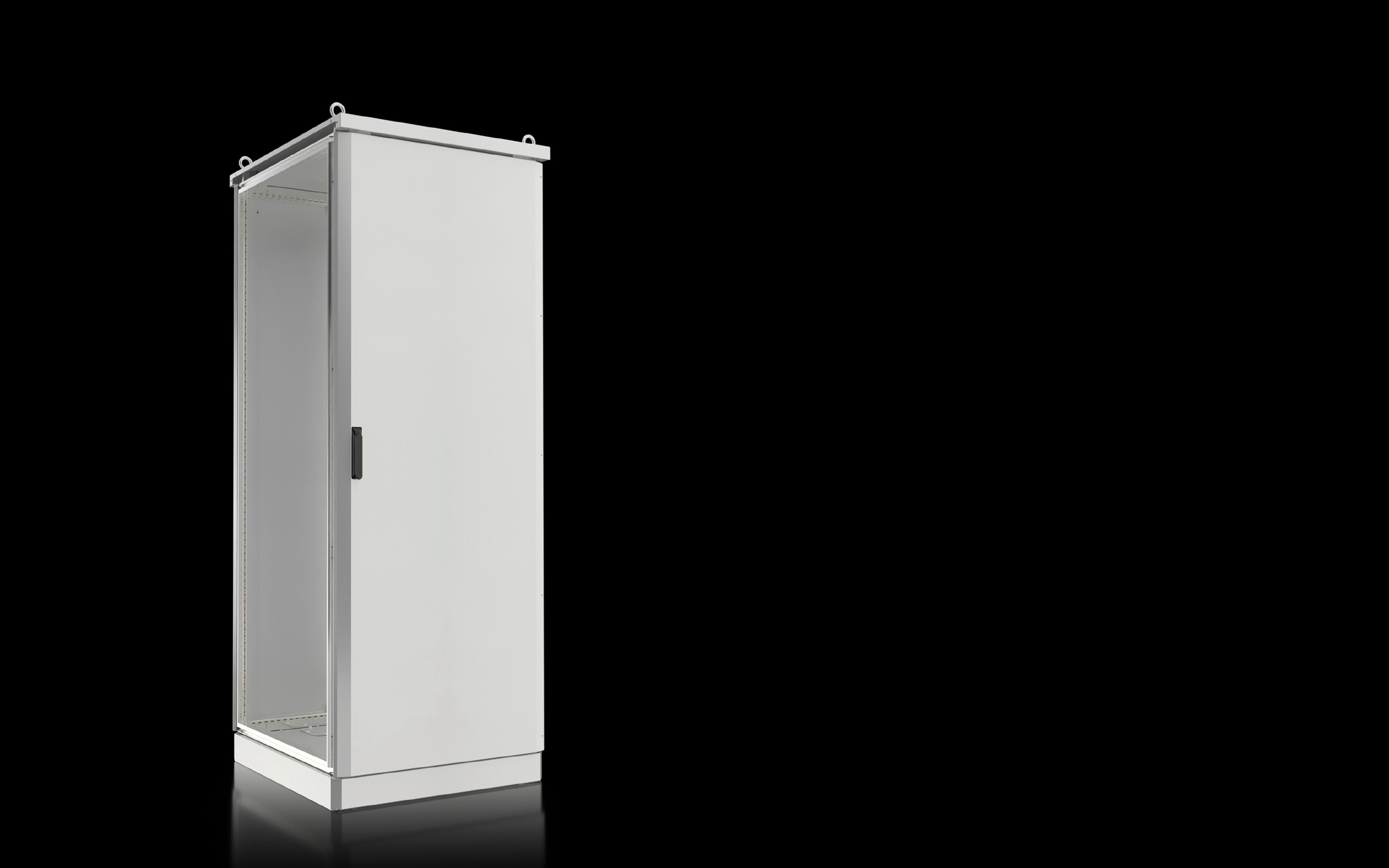

CS Toptec, bayable, WxHxD: 800x2000x800 mm
Feature: Bayable twin-wall outdoor enclosure with base/plinth and rain canopy. Business impact: Enables modular expansion and enhanced weather protection, reducing retrofit time and on-site customization. Application: Outdoor control cabinets at manufacturing sites, energy facilities, and water treatment plants. Feature: Durable materials and finishes. Business impact: Corrosion resistance and long service life minimize maintenance, lowering total cost of ownership. Application: Outdoor automation cabinets exposed to UV, humidity, and temperature swings. Feature: Robust protection and secure access. Business impact: IP55, NEMA 3R, and IK10 compliance ensure reliable operation and secure enclosure access, reducing downtime. Application: Outdoor substations and process skids in harsh environments. Feature: Cable management and mounting versatility. Business impact: 25 mm system punchings, two mounting levels, and two gland plates streamline routing and installed area utilization, speeding commissioning. Application: Complex cable harnesses for PLCs, drives, and sensors. Feature: Installation flexibility. Business impact: Door orientation can be swapped (right to left) and baying supports scalable layouts, cutting site adaptation time and enabling rapid reconfiguration. Application: Dynamic production lines and distributed automation Architectures.
Get a Quick Quote for a Rittal 9781828
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9781828?
Enquire Now
FAQs
The enclosure ships with a right-hinged door, and it can be swapped to the left to match site layout constraints. This orientation flexibility supports optimal access for maintenance and wiring, especially in cramped or modular plant layouts.
The CS 9781.828 unit is rated IP55 for ingress protection, meets NEMA 3R suitability for outdoor environments, and has IK10 impact resistance. Together, these ratings ensure reliable operation in harsh weather, with secure enclosure integrity and vandal resistance.
Baying enables scalable interior layouts using 25 mm system punchings in the roof and base, plus two mounting levels. This simplifies module addition, cable management, and reconfiguration without full cabinet replacement, supporting growing control systems and changing automation needs.
Yes. The enclosure includes 25 mm punched roof and base frames, two vertical sections with mounting levels, and gland plate provisions, ensuring compatibility with typical Rittal accessories and mounting schemes for PLCs, drives, and sensors.
The stainless steel frame and aluminum panels, combined with UV-resistant powder coating, offer long-term corrosion resistance and low maintenance. This leads to reduced downtime, predictable lifecycle costs, and a strong return on investment when deployed across multiple outdoor cabinets.
